AirTAC

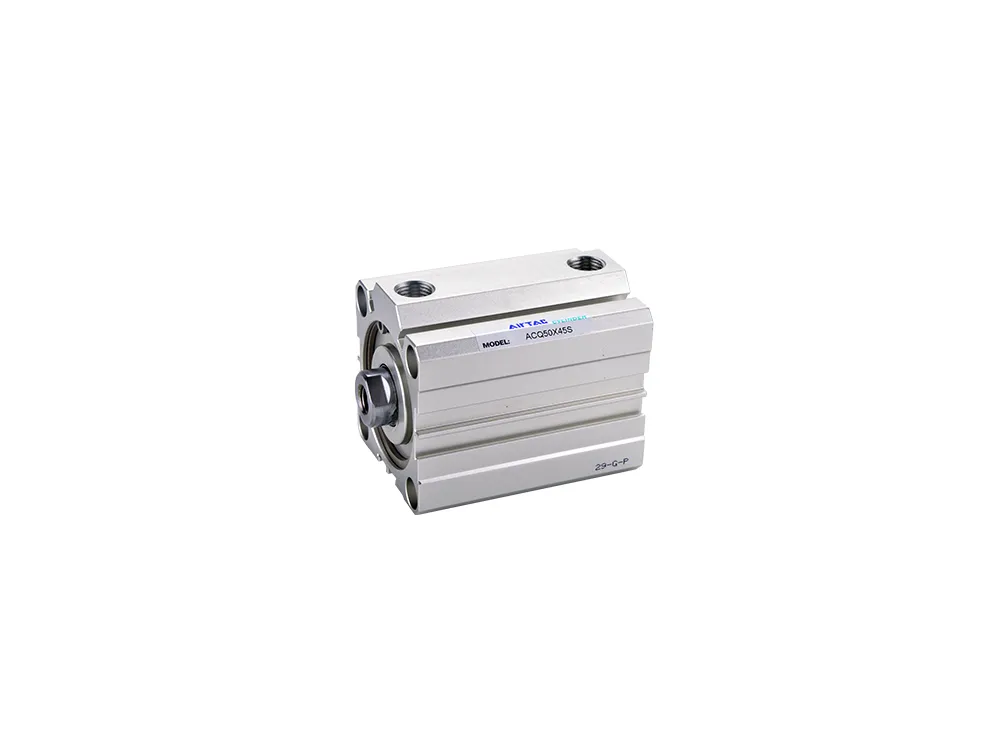

ACQ Series Compact Cylinder

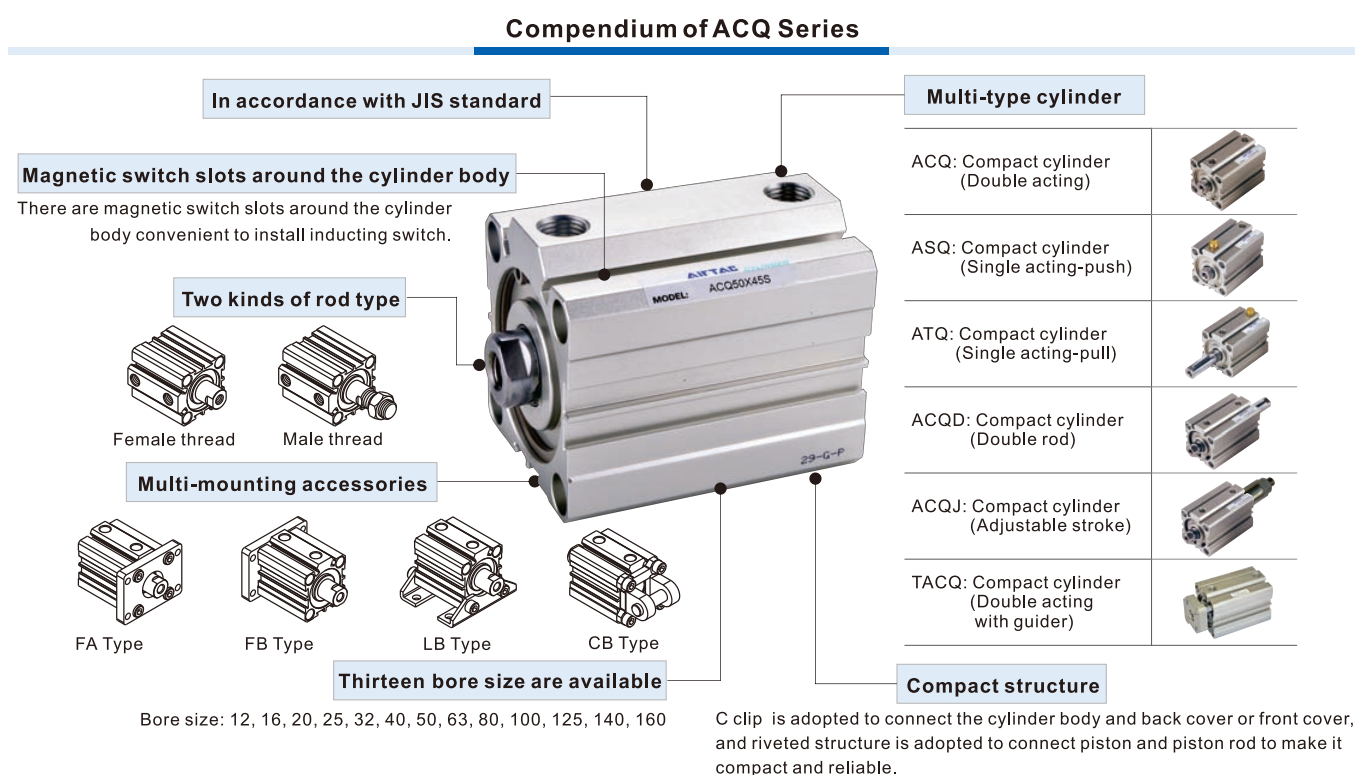

  • ln accordance with JIS standard
  • Magnetic switch slots around the cylinder body
  • Two kinds of rod type
  • Multi-mounting accessories
  • Thirteen bore size are available
  • Compact structure

Inquiry

Features

  1. JIS standard is implemented.

  2. C clip is adopted to connect the cylinder body and back cover or front cover to make it compact and reliable.

  3. The internal diameter of the body is treated with rolling followed by the treatment of hard anodizing forming an excellent abrasion resistance and durability.

  4. The seal of piston adopts heterogeneous twoway seal structure. It has compact dimension and the function of grease reservation.

  5. Compact structure can effectively save installation space.

  6. There are magnetic switch slots around the cylinder body which is convenient to install inducting switch.

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

AirTAC_ACQ_catalogue_EN

AirTAC_ACQ_catalogue_CN
