AKribis

AFC90SMZ Series Single Axis Linear Motor Stage

  • A self-lubricating linear guide
  • Repeatability up to ±0.5 µm
  • Resolution of 0.05 µm
  • Small size: 120 x 37 x 175 (H) millimeters

Inquiry

AFC90SMZ Series

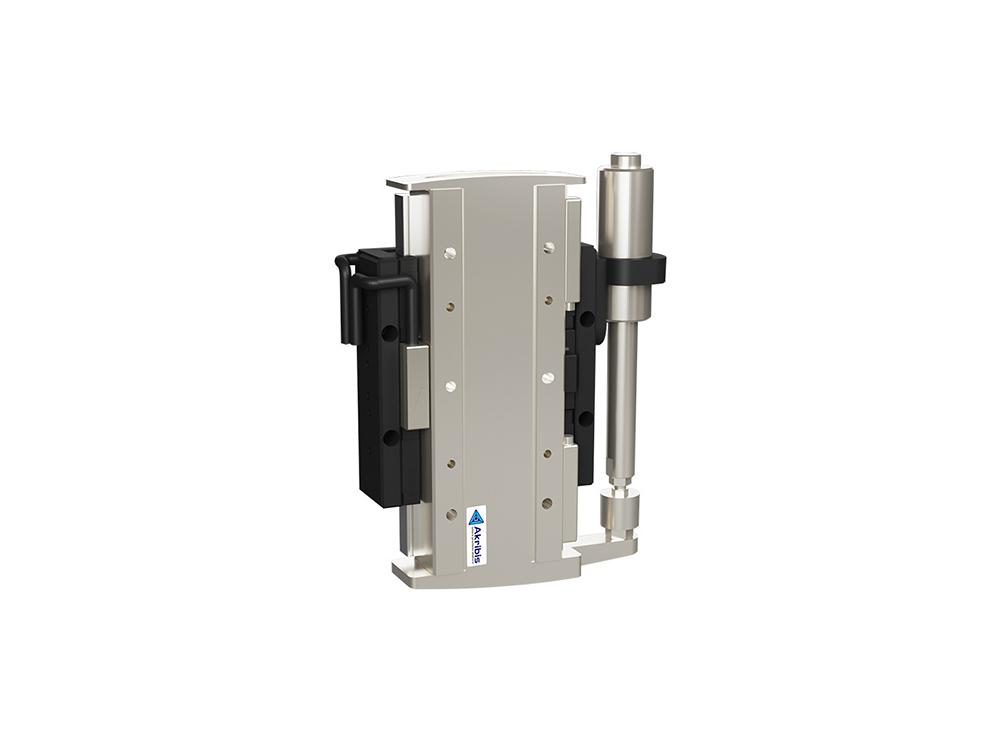

The AFC90SMZ Series Z-axis module leverages direct drive technology to provide 55 to 91 N peak force (Fpk) and continuous forces from 20 to 34 N (Fcn), with strokes of 25 or 50 millimeters — all in a compact module. The module’s high torque constant allows accurate and repeatable positioning, while delivering high acceleration and deceleration with exceptionally low cogging. Magnetic spring technology provides effective gravity compensation with support for loads up to 1.5 kilograms. The AFC90SMZ can also be combined with our AFC90 linear stage to form an X-Y or X-Y-Z stage.

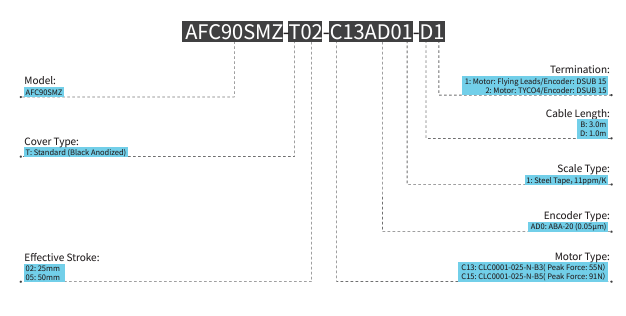

Ordering Part Number (OPN)

AKribis_AXD Series

Applications and Industries

The AFC90SMZ Series Z-axis direct drive module is appropriate for a wide array of automated equipment including pick and place, inspection, dispensing, inspection equipment, 3D printers or any other automated material handling or general industrial application requiring high-precision vertical positioning.
