Delta

Delta AX-C CODESYS Control System

  • All-in-one motion control function: Supports up to 12 basic synchronous axes, built-in EtherCAT port, dual Ethernet ports, and SD card slot. The I/O interface provides an RS-485 communication port, a built-in differential signal encoder input interface, 16 input points (4 sets of 200kHz high-speed counter inputs), and 8 output points (4 axes with 200kHz pulse output).
  • High computing performance: Equipped with a processor superior to similar products on the market, with a basic instruction processing speed of up to 1 ns. Performance remains fast and stable even as programs increase.
  • Flexible and convenient configuration expansion: Allows flexible integration with various Delta EtherCAT remote module solutions to achieve the optimal I/O configuration according to customer needs.

Inquiry

The AX-C Series Motion CPU



The AX-C Series Motion CPU is the latest addition to the AX Series controllers. Developed based on the CODESYS platform, the AX-C Series supports synchronization of up to 12 motion axes with onboard 16 inputs / 8 outputs, and is easily expandable with Delta’s various EtherCAT remote I/O modules. Its dual Ethernet ports enables stable connections to host devices, such as HMIs or SCADA systems, and other peripheral devices for data communication.

With a compact standalone design, the AX-C Series offers the most cost-efficient option for most applications in logic control, motion control and data communication, and ensures better execution efficiency, a convenient development environment, and an excellent product.

Features & Benefits

AX-3 CODESYS Control System

  • All-in-one motion control solution: Synchronizes up to 12 axes and offers an onboard EtherCAT master, dual Ethernet ports and a SD card slot. It also integrates RS-485 communication, a differential (encoder) input, 16 digital inputs (with 200kHz high speed counters*4) and 8 digital outputs (with 200kHz pulse-train outputs*4) in I/O interface to address basic control requirements
  • Exceptional execution speed: Utilizes a premium processor to achieve the execution speed of 1ns for basic LD instruction, ensuring speed and performance even when the control program gets larger
  • Quick and easy expansion: For I/O expansion, users can select from Delta’s various EtherCAT remote I/O modules according to specific needs to build a customized system with the best configuration


Applications

Packaging, machine tools, food and beverages, woodworking, metalworking, lithium battery manufacturing, electronics assembly, and more

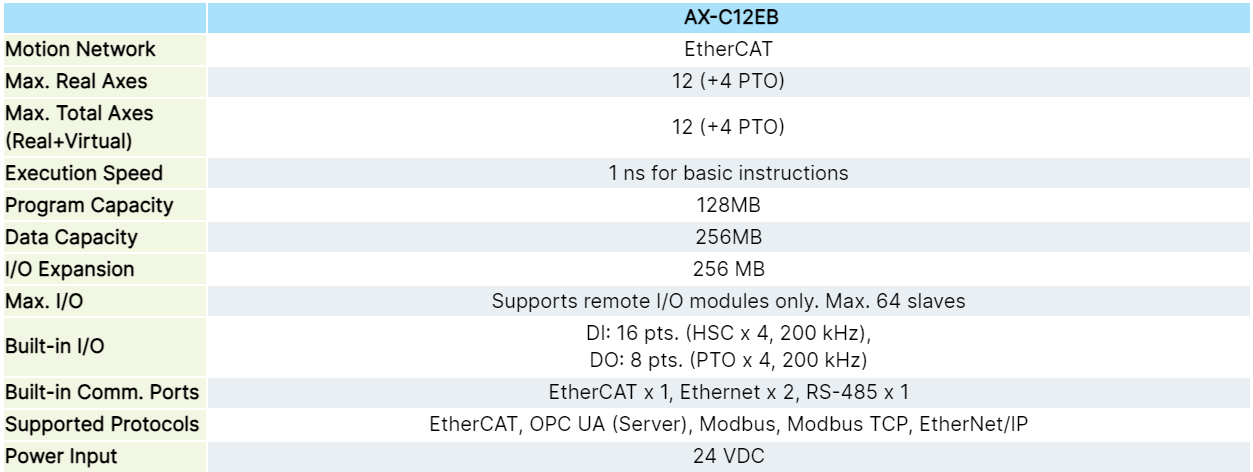

Specifications

AX-3

Note: Actual support functions will vary by series

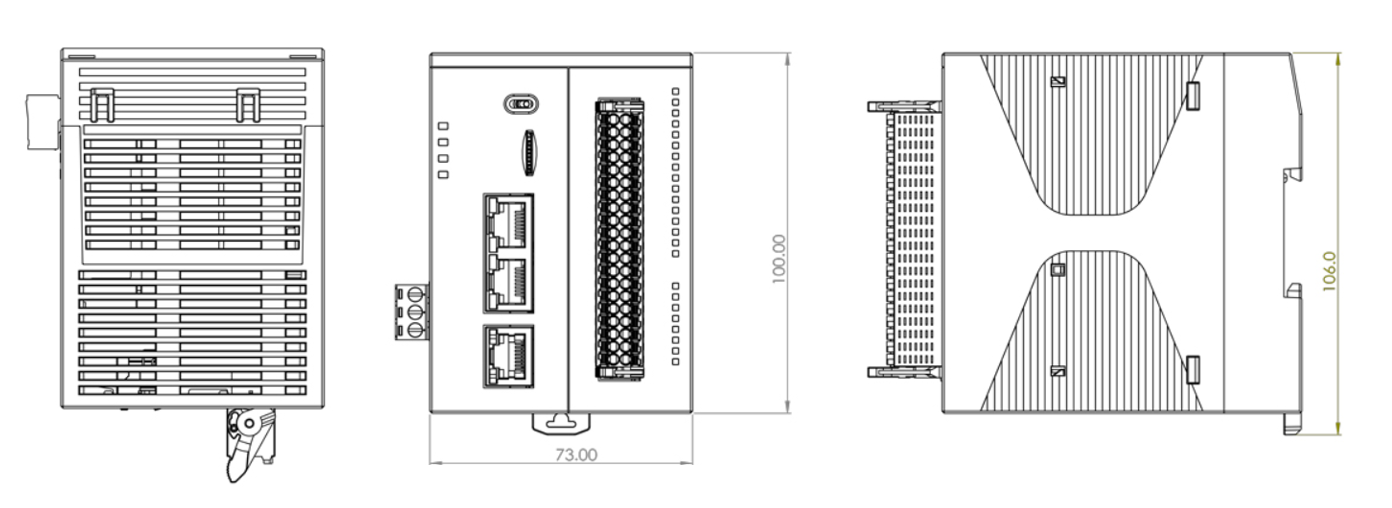

Dimensions

※ You can search for more files in the download center

AX-C Series CPUs
AX-C12EB
