MIKI PULLEY
BAUMANN FLEX LM Models
- Max. rated torque : 2.0 N・m
- Pilot-bore additional processing range : 3 mm to 14 mm
- Operating temperature : -40℃ to 100℃

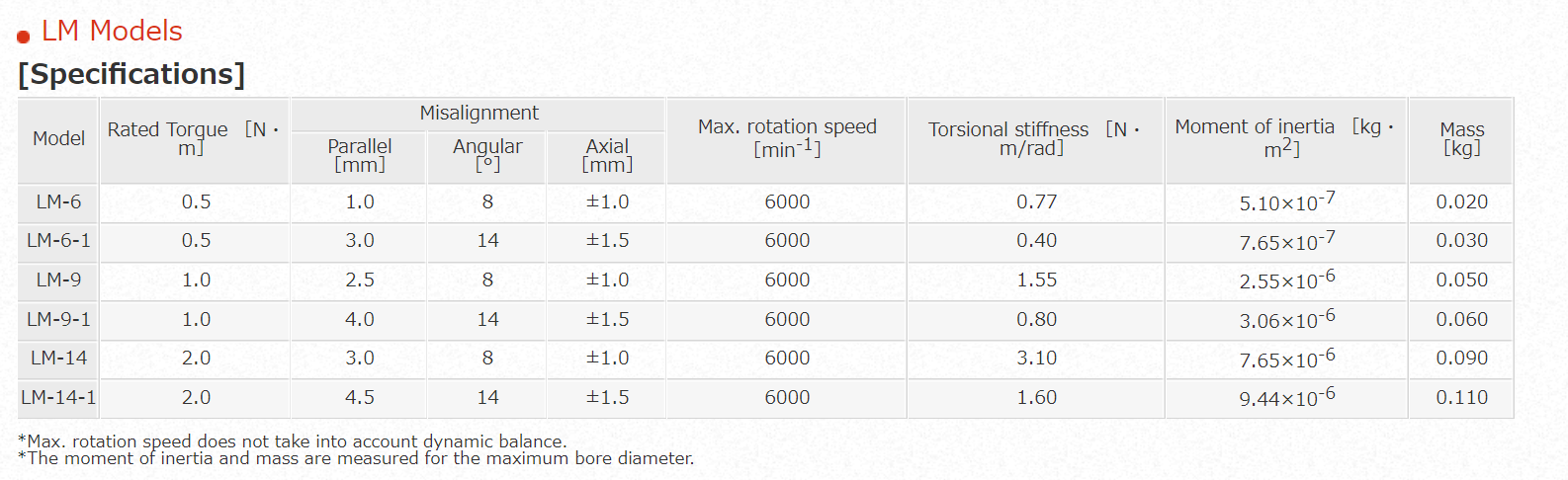

BAUMANN FLEX LM Models

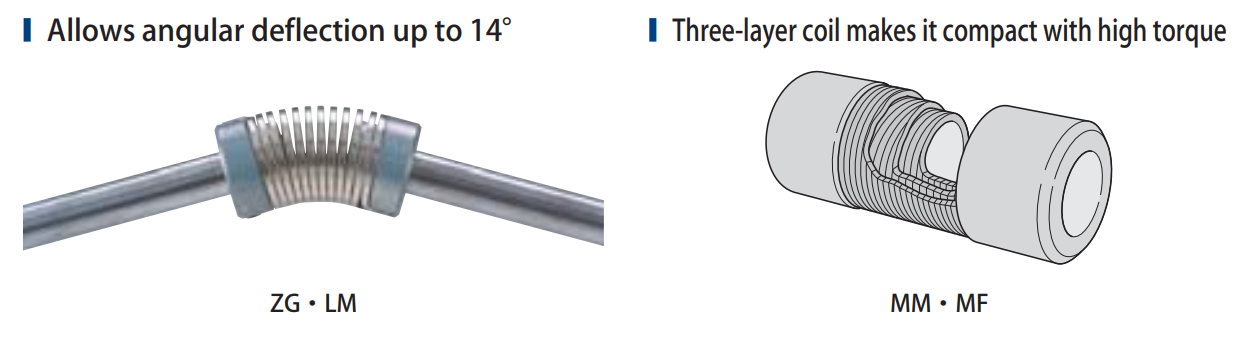

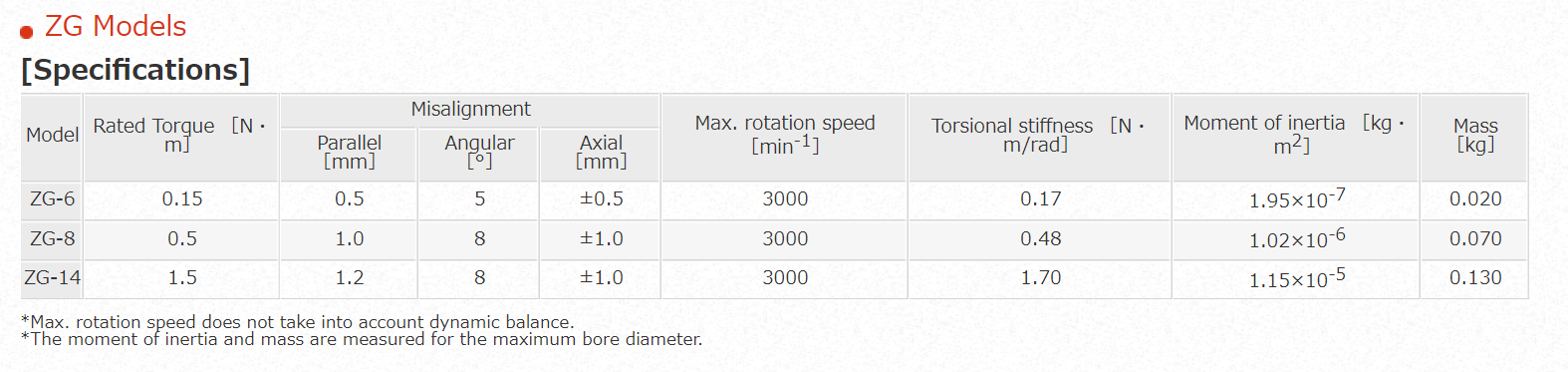

Our line-up includes the relatively low nominal torque of the ZG and LM models, which have excellent flexibility.The long type of the LM model (the LM-1 type) allows a particularly large angle of deflection of up to 14°. The ZG model uses a zinc alloy as the hub material and spring-steel square wire for the coil spring; the LM model uses an aluminum alloy as the hub material and stainless-steel round wire for the coil spring. Select the type suited to your usage environment.
