Magnescale

BL50H Series Laserscale_

Maximum resolution : 6.1 pm Maximum response speed : 5 m/s
Wide angle tolerance of ±30 min
Equipped with a long-life laser diode
Low noise
Excellent interpolation accuracy in combination with BD700
1.5D and 2D scales are also available

Inquiry

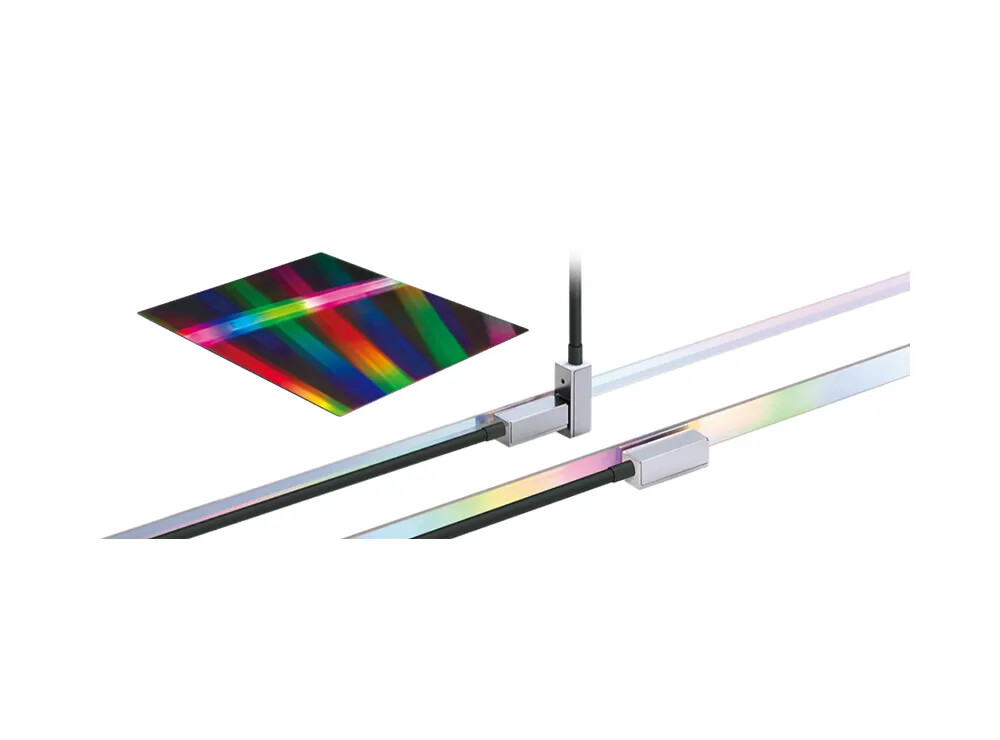

BL50H Series Laserscale

Laserscale for motion control to achieve high resolution and high speed.
It can be used not only as a scale for high-speed control of stages and picometer-level fine control, but also as a sensor for high-resolution tilt control of tilt tables.

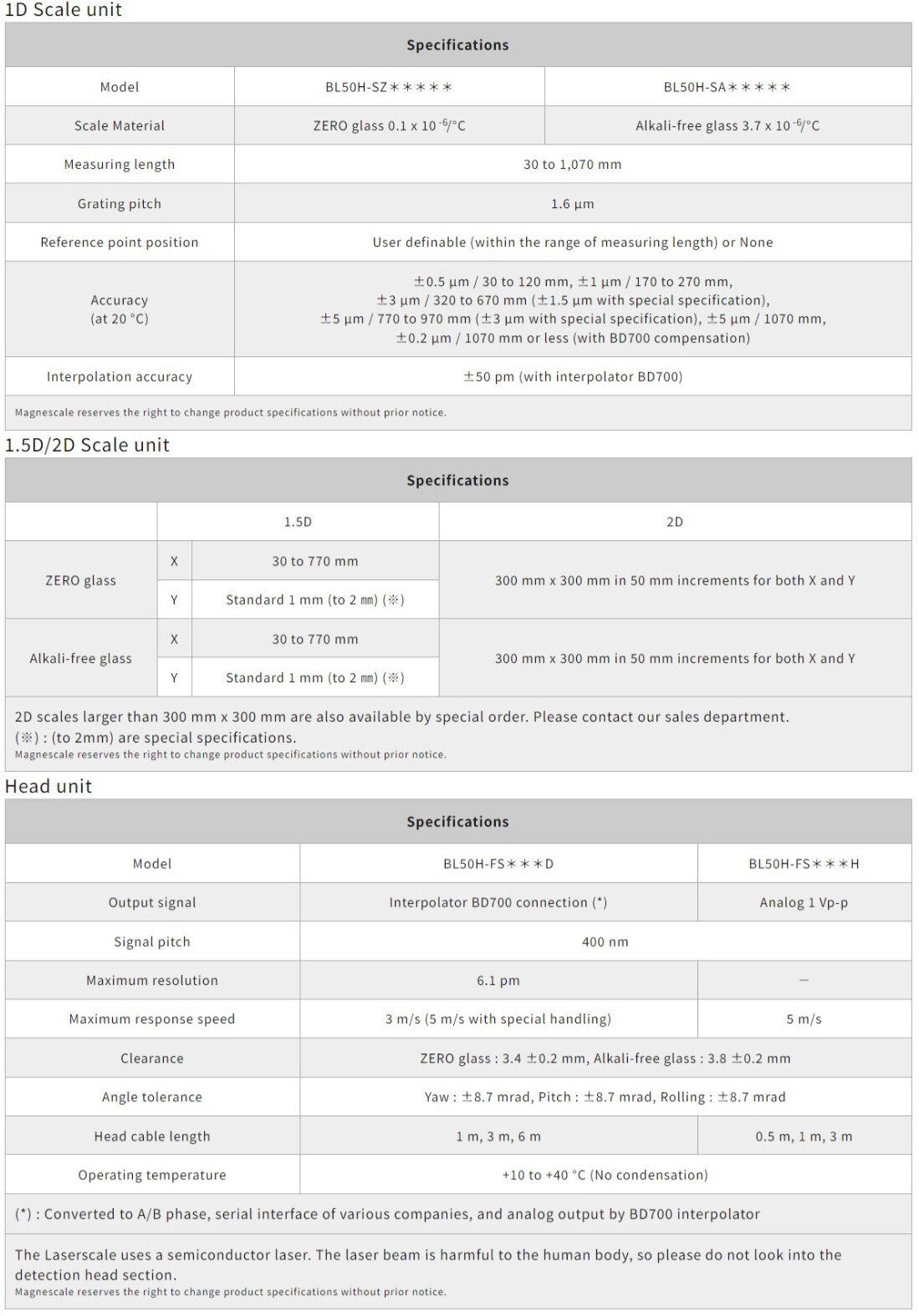

Specifications

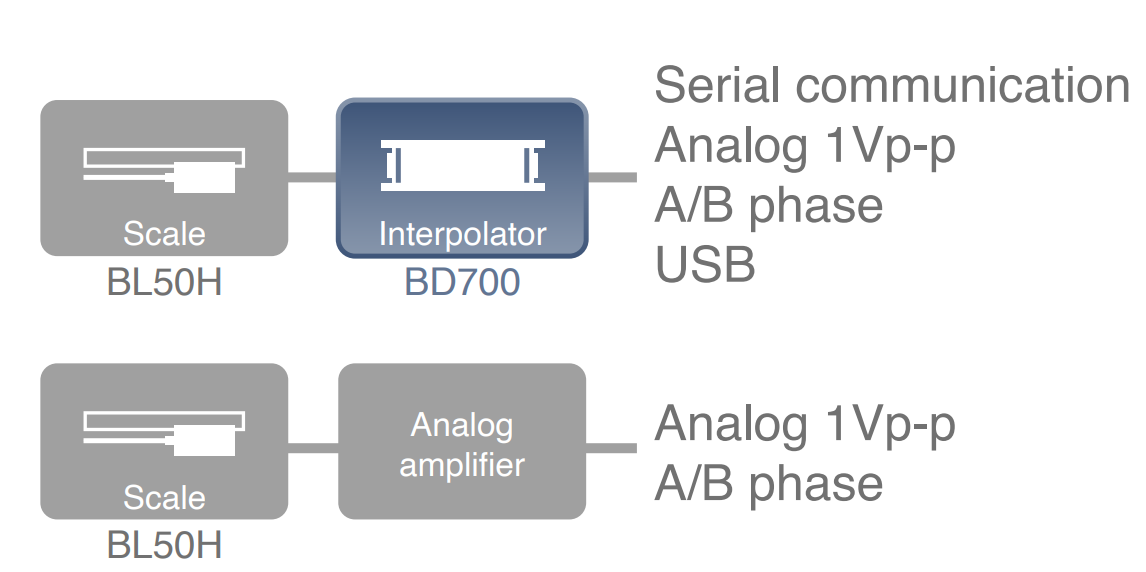

System Configuration Diagram

Download

Catalogue

Datasheet

Manual

Brochure

Report

References

Magnescale_BL50H_Catalogue_EN
