TPI

Angular Contact Ball Bearing

  • 內徑/動額定負荷範圍: 8-100mm/ <75500N
  • 優秀之剛性,並承受更大之負荷
  • 高速運轉下確保整體軸承之精度及穩定性"

Inquiry

Angular Contact Ball Bearing

Rolling element

Inner and outer rings

Design

ACBB, which is the abbreviation of angular contact ball bearings. With different contact angles, the higher axial load can be well taken care now. TPI standard ball bearings are the perfect solution for high runout accuracy applications such as machine tool main spindles.

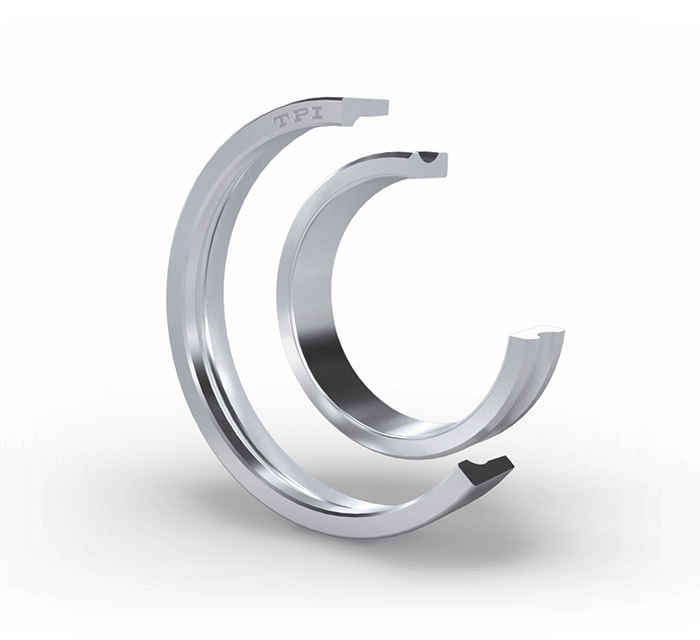

Inner and outer rings

  • Standard ball bearings steel with content of carbon and chromium was selected and hardended to withstand the intense pressure between the rolling element and bearing rings.

  • Carbonitriding on both inner and outer rings is a basic hardening process for many TPI ball bearings suppliers. Through this special heat treatment, hardness on the raceway surface is increased; which reduces wear accordingly.

  • Ultra-clean steel is available in some of TPI standard ball bearings' product series now, higher wear-resistance is obtained accordingly. Since contact fatigue is often caused by hard non-metallic inclusions, bearings nowadays require exceptional levels of cleanliness.

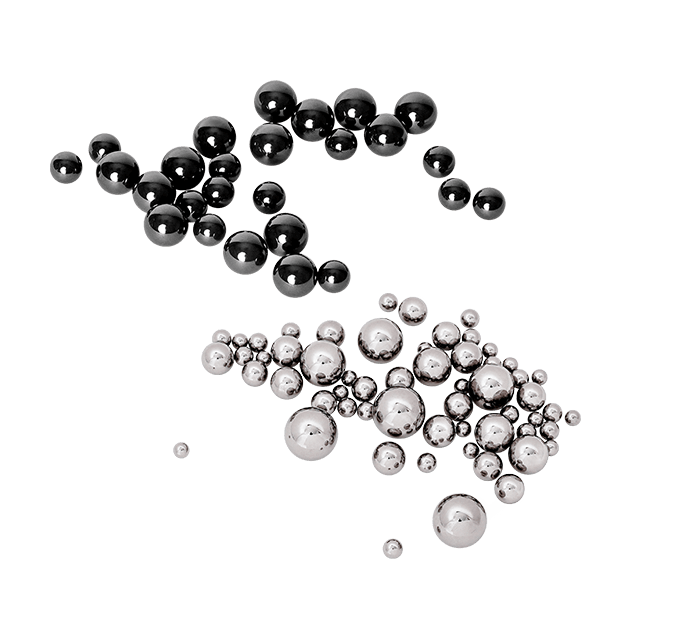

Rolling element

  • High precision steel balls ensure TPI's standard ball bearings have the best precision and stability. This also reflects in bearing performance under high speed rotation.

  • Ceramic balls are an additional option when it comes to severe operating conditions. Extreme high speed rotation, heavy-duty applications and high heat generation while operating are some situations that ceramic balls that can definitely help.

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

TPI_精密軸承_Catalogue
