CCS

LFV/ MSU/ MFU/ HLV3/ OPX Box Lights

  • Slim half-mirror to suppress ghost images.
  • For high-speed imaging with high-resolution cameras.
  • Freely adjustable flash timing enables strobing within the exposure period of the camera.
  • Solves your xenon flash lamp problems.

Inquiry

Product Introduction

LFV-G-PF Series

LFV-G-PF Series high-resolution coaxial lights for high-power strobe lighting.
Thin half-mirror prevents ghost images.

  • Slim half-mirror to suppress ghost images.
  • For high-speed imaging with high-resolution cameras.
  • Freely adjustable flash timing enables strobing within the exposure period of the camera.
  • Solves your xenon flash lamp problems.

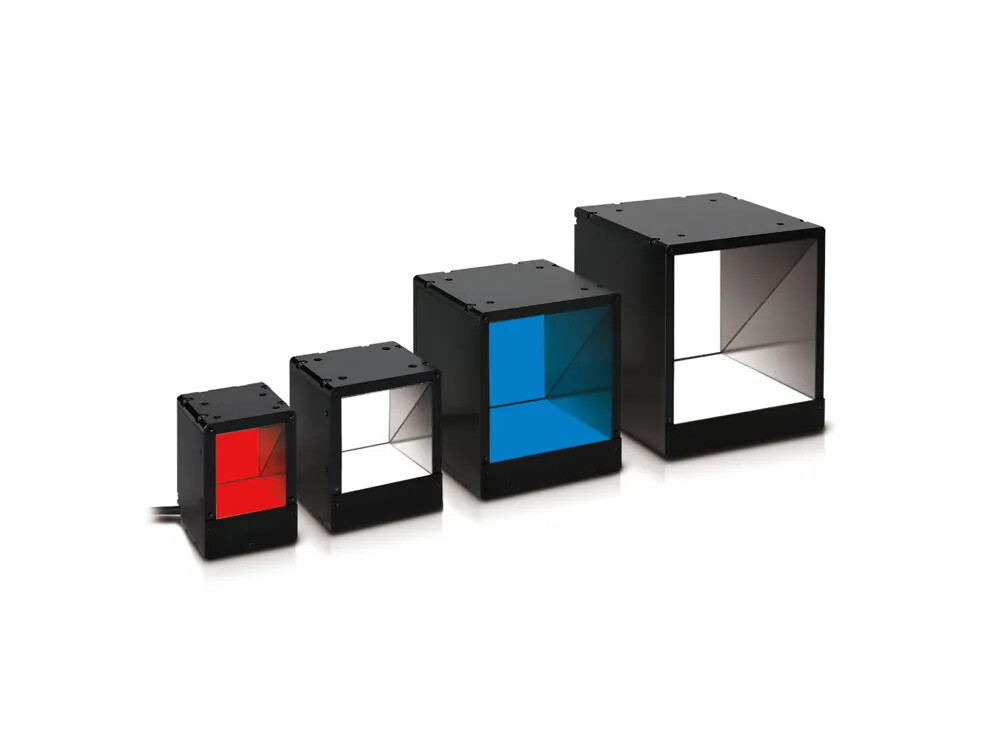

LFV3-G Series

Coaxial Lights for high-resolution cameras.
Slim half mirror prevents ghost images.

  • Equipped with a slim half mirror
  • Prevents ghost images and achieves high-resolution imaging
  • Particular lighting technology achieves high output and high uniformity
  • Available in eight sizes and three colors(Red,Blue,White), for a total of 24 models.



LFV3 Series

  • These Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
  • Mirror surface workpieces are uniformly illuminated without unevenness.
  • The diffusion plate is adjustable and exchangeable.

    MSU Series

    • These Coaxial Lights provide collimated lighting which is created through a special lens.
    • The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).
    • Provides collimated lighting created using a special lens. It is perfect for extracting tiny scratches, damage, or dents on mirror surfaces. The included lens can be used for convergent light.


    MFU Series

    • Coaxial lights for collimated backlighting
    • These coaxial lights provide collimated lighting from behind the workpiece.
    • This suppresses the wraparound of light and enables precise dimension measuring and appearance inspection.
    • 12V and 24V types available.
    • Use the KT-MFU collimated backlight unit with the HLV series spot light to increase brightness.



    HLV3-3M-RGB-4 Series

    • Micro Fiber Head (HFS and HFR Serieses) Dedicated Light Sources.
    • A full color light source that achieves the illumination color perfect for your workpiece.

    Note: These lights require the Control Units provided with the output connectors for Spotlights.
    The available Control Units vary depending on the input current of lights.
    For details, refer to the "Power Supplies" column on the page describing each light model name.



    OPX Series

    • Highly uniform illumination with a narrow directivity angle.
    • Coaxial lighting ideal for detecting scratches and dents.
    • Improved light-emitting surface uniformity.
    • Sensing lighting with automatic brightness management
