MIKI PULLEY

CF-H Models

  • Max. nominal torque : 2500 N・m
  • Pilot-bore additional processing range : 13 mm to 120 mm
  • Operating temperature : -40℃ to 120℃

Inquiry

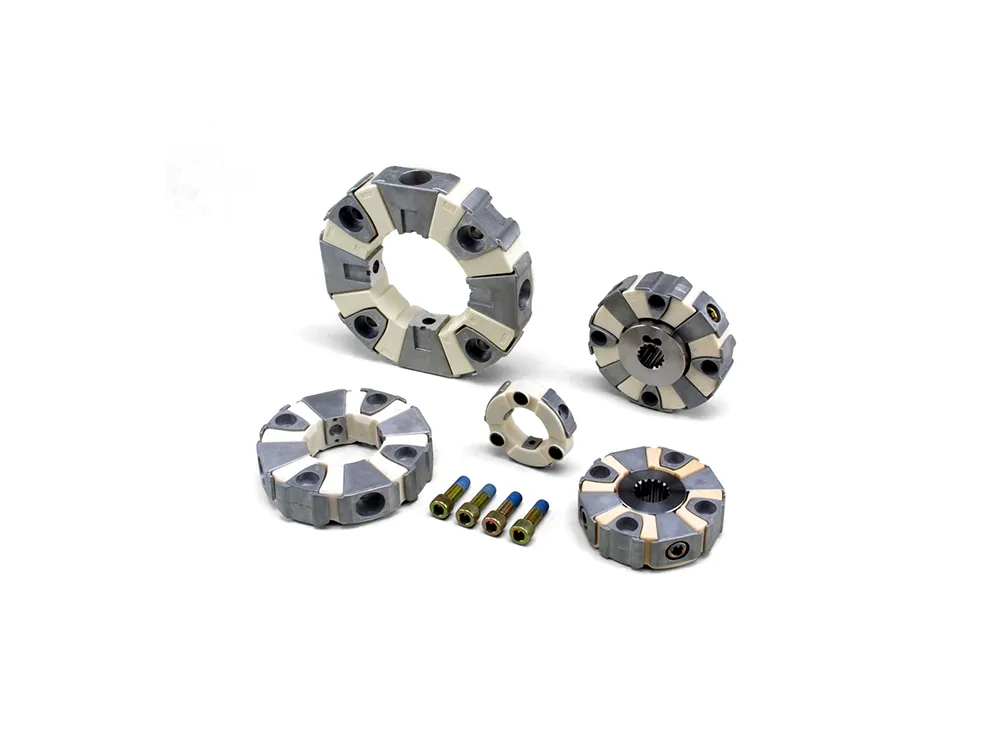

CF-H Models

Motive power is transmitted by polyester resin that has the elastic force of rubber.These models boast excellent vibration and shock absorption while achieving resistance to heat, cold and oil not shown by natural rubber. They can also easily engage or isolate input/output simply by moving in the axial direction, facilitating maintenance.



Excellent environmental resistance

In addition to absorbing vibration and shock, they have excellent resistance to cold, heat, and oil, enabling their use in punishing environments.



Clamping hubs

When coupling a spline shaft (pump shaft) and cylinder hub, a clamping hub can be provided to allow complete locking in place by means of center lock action. We can design to meet your needs, so please contact us for details.



CF-H (O0/O1/O2) Types

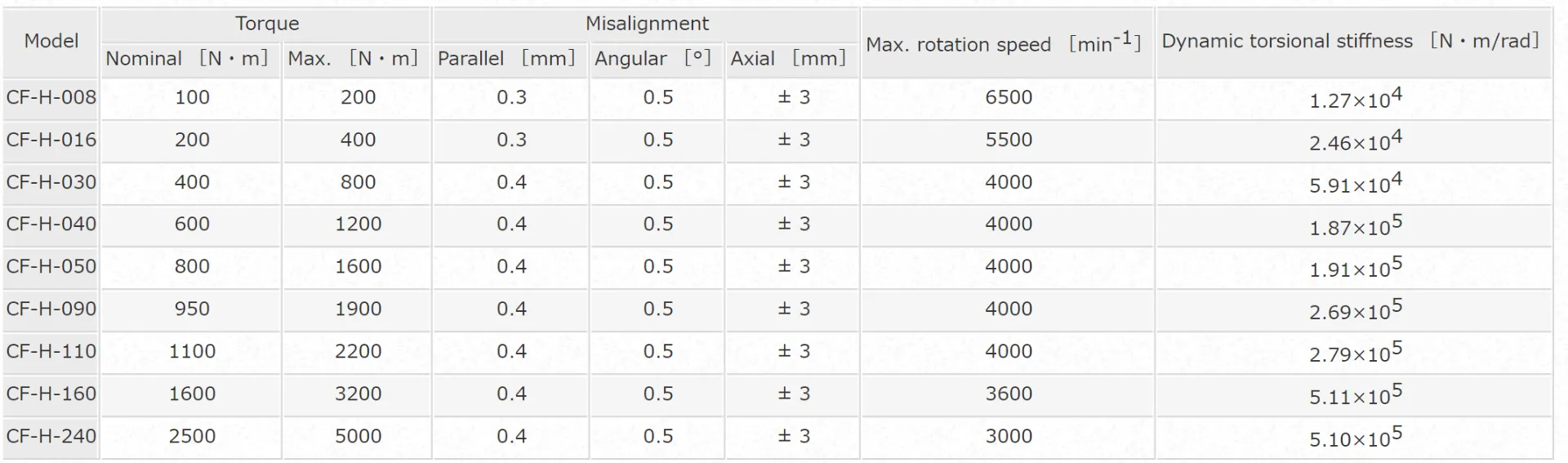

[Specifications]

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

CENTAFLEX_catalogue
