ABB

SWIFTI™ CRB 1100

  • Collaborative safety
  • Easy-to-use
  • Productivity

Inquiry

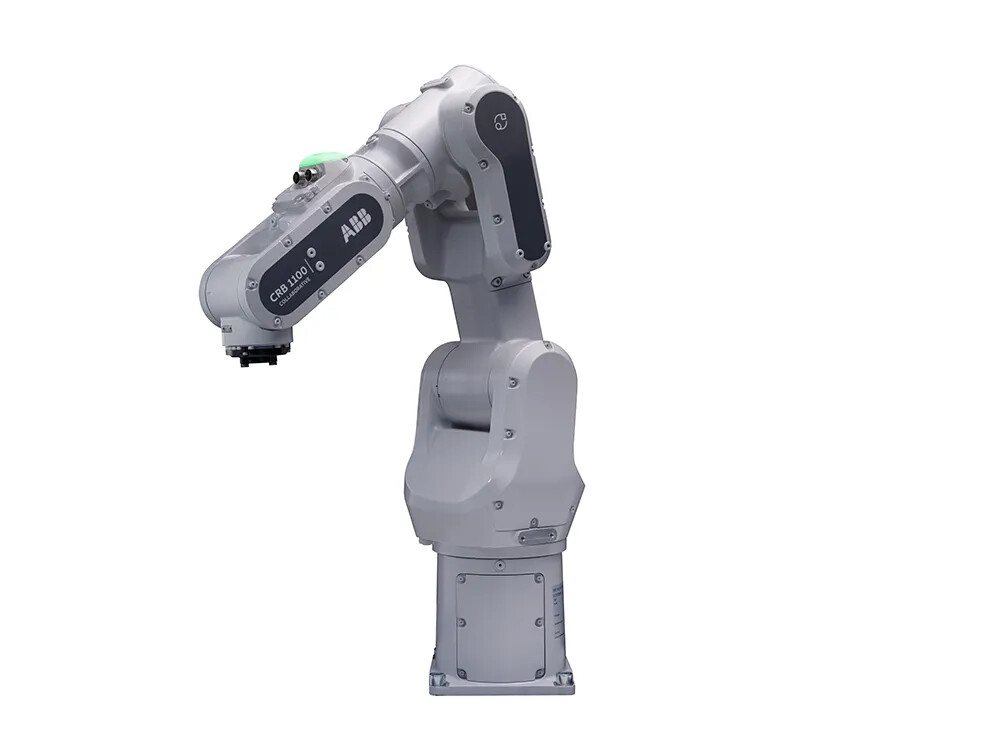

CRB 1100 SWIFTI™

Unleash the speedy cobot. A lightning-fast cobot that combines industrial-level performance and innovative safety. SWIFTI gets the job done faster and more accurately than you can imagine. SWIFTI bridges the gap between collaborative and industrial robots. It enables proven safe collaborative operation to be achieved, even in applications that demand industrial-level speed and lifting capabilities.



A lightning-fast cobot that combines industrial-level performance and innovative safety. SWIFTI gets the job done faster and more accurately than you can imagine.



Introducing SWIFTI

Collaborative safety

Combining ABB’s SafeMove comprehensive safety functionality with a safety laser scanner,* SWIFTI can be installed without physical fencing and still collaborate safely with people. If a worker is detected within its working area, SWIFTI will automatically slow down or halt to allow them to approach safely. An interaction light also provides a visual indication of SWIFTI’s status. It signals human co-workers when people are inside SWIFTI’s working zone.



No experience? No problem.

Offering both lead-through programming – via a clip-on lead-through device, Wizard easy programming software, and the graphical SafeMove configurator App on the FlexPendant, SWIFTI can can be configured and programmed easily and quickly.



High-performance collaboration

SWIFTI offers a maximum Tool Center Point (TCP) speed of over 5 m/s, five times faster than other 4 kg cobots and comparable with industrial robots. At 0.01 mm, SWIFTI also provides up to 10 times higher position repeatability than other collaborative robots.

Collaborative safety

Easy-to-use

Productivity

Supervised by SafeMove and safety sensorWizard easy programmingWith a TCP speed of over 5m/s**, it is five times faster than other cobots in its class
Stop safely before contact with a human
Interaction status light
Intuitive robot movement programming with external lead-through deviceUp to 10x higher position repeatability 0.01mm than most cobots in its class

Interaction status light

SafeMove configurator App on the FlexPendantFour integrated air supplies enable vacuum picking

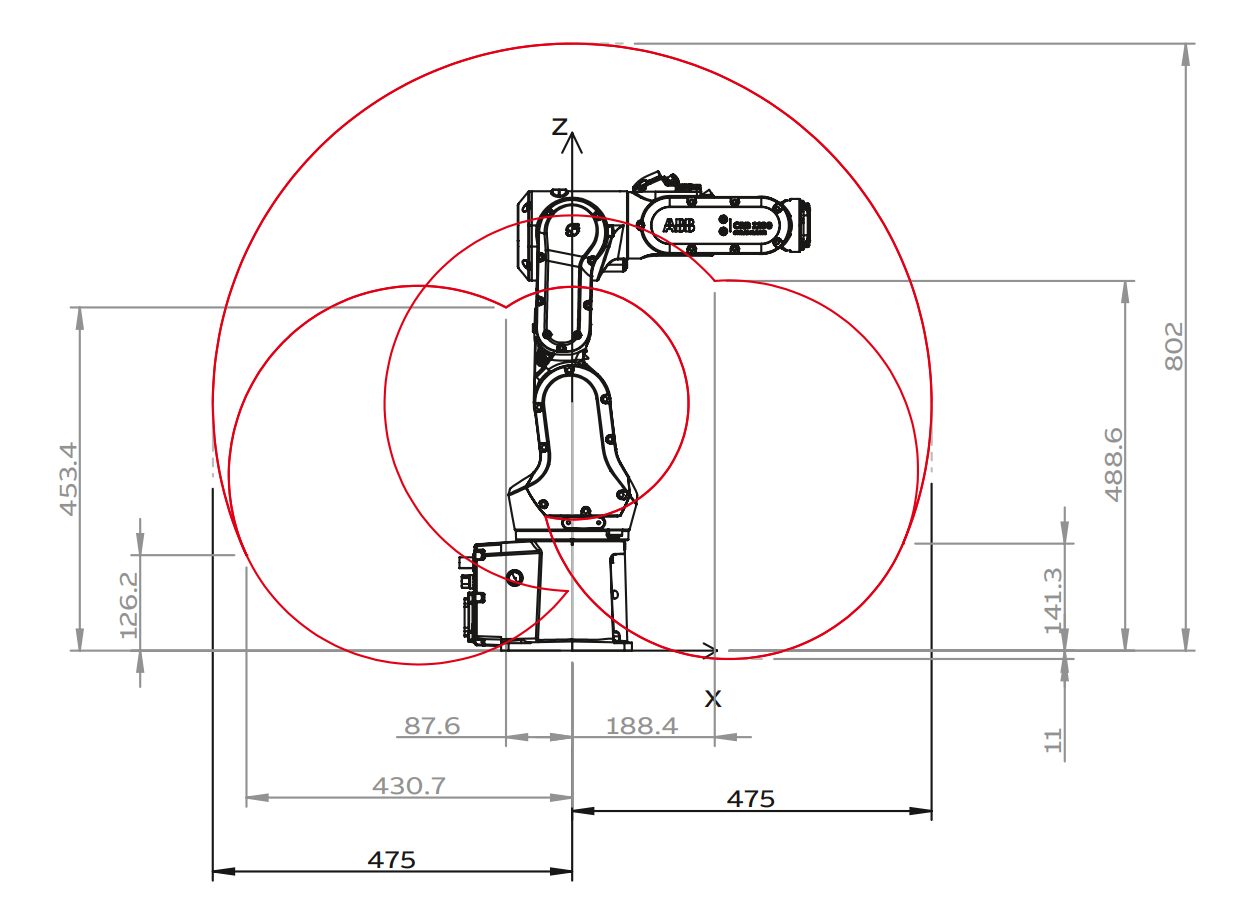

Working range, CRB 1100-4/0.475

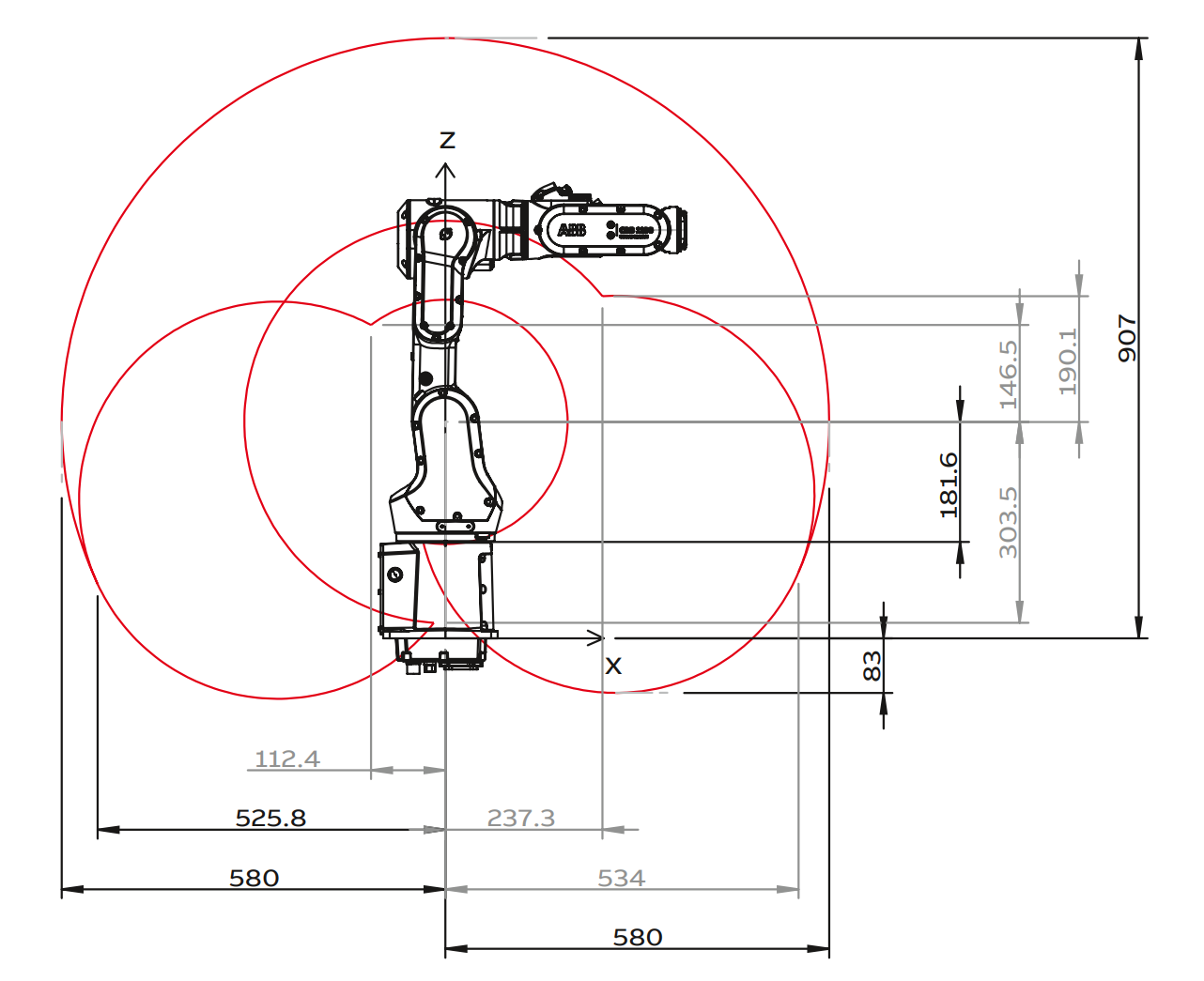

Working range, CRB 1100-4/0.58

Specification

Robot version

Payload(KG)

Reach(M)

CRB 1100-4/0.475

4KG

0.475M

CRB 1100-4/0.58

4KG

0.58M

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

ABB_CRB1100_Brochure_zh
