DC-UPS modules Overview

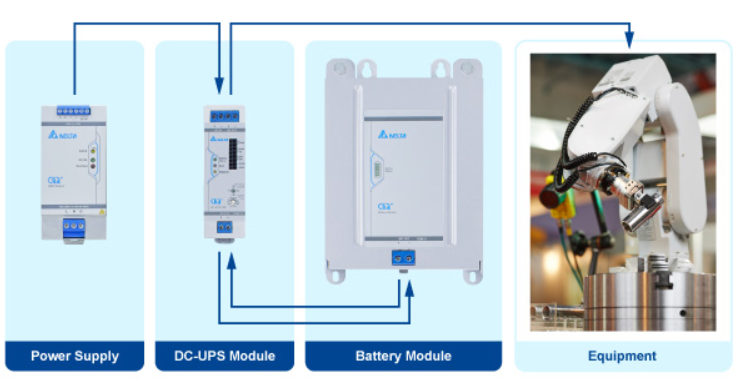

Delta has started to equip its CliQ M Series Power Supplies with the new DC-UPS and battery modules for uninterruptible systems. All matched together, the CliQ M Series power supplies and modules are set to reduce production downtime during power failures.

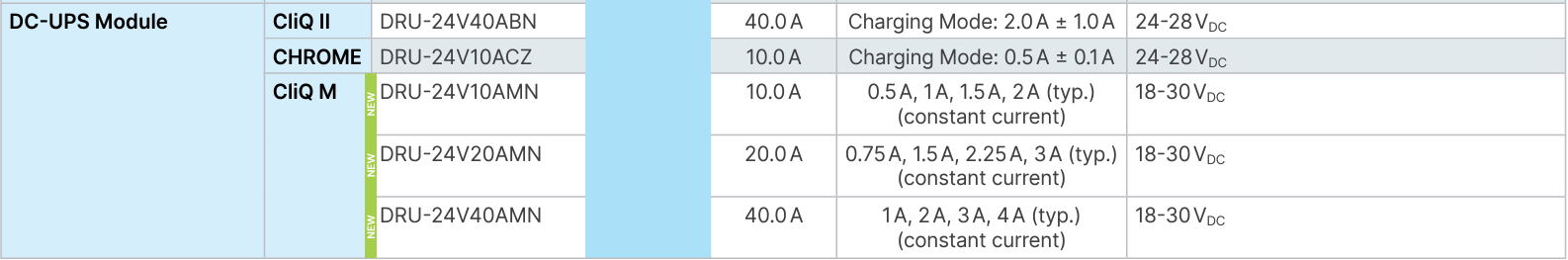

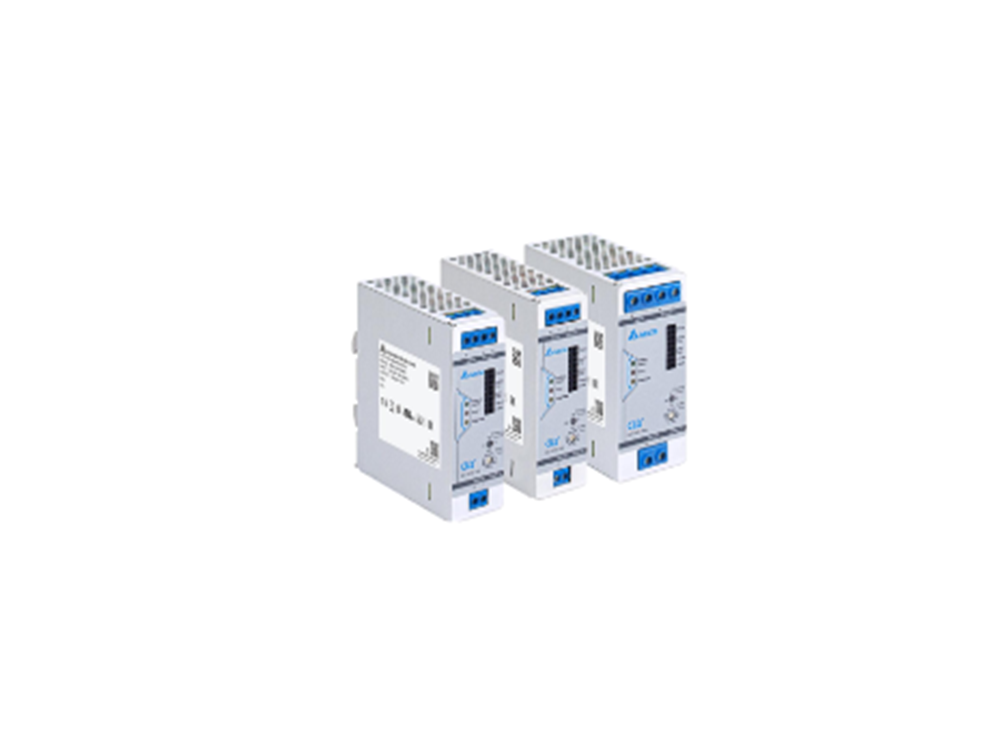

The three new DC-UPS modules for the CliQ M Series offer various output currents of 10 A (DRU-24V10AMN), 20 A (DRU-24V20AMN) and 40 A (DRU-24V40AMN), and a wide input voltage range from 18 - 30 Vdc. They can support a battery charge at 18 Vdc and a 150% power boost function in 24 V systems. In addition, the charging current (optional) and the buffering time are selectable according to user needs.

The CliQ M battery module (DRN-24V7AAEN) is designed to support 2 x 12 V 7.2 AH lead-acid batteries for 24 V system as backup power. The battery module has a built-in battery voltage indicator to easily monitor the battery status during operation.

Over temperature protection is available when using the CliQ M battery module together with the DC-UPS modules. The combination also helps to extend battery life and makes a better power solution for uninterruptible systems in a wide range of applications, such as industrial automation, factory automation, machine automation, and more.
