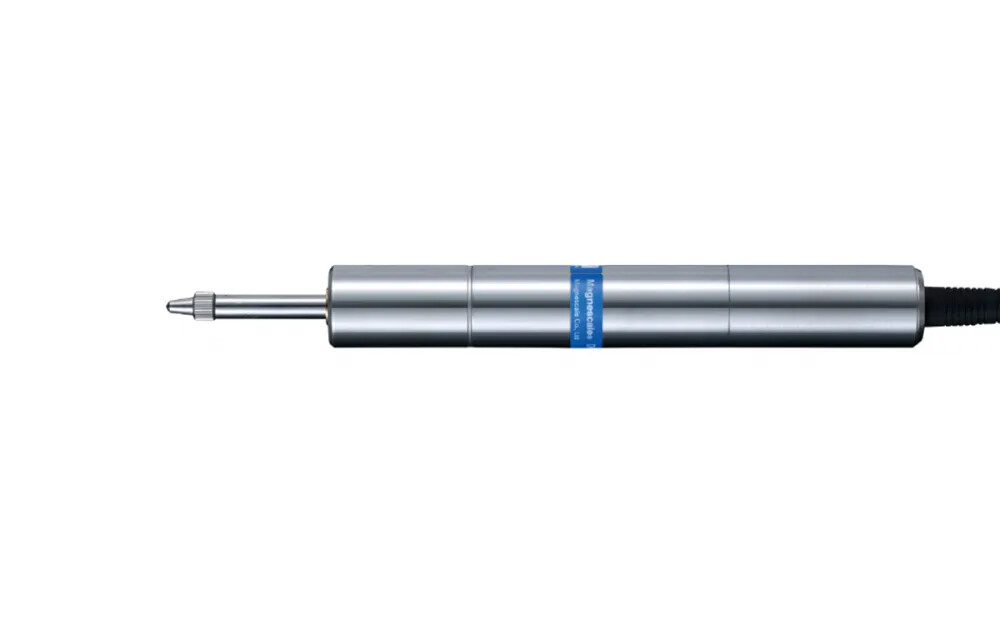

Product lineup capable of measuring up to 205 mm.
The robust structure creates superior environmental resistance and rigidity, and is able to be used in a wide range of applications.

Product Feature

• Measuring range : 10 mmm, 25 mm, 50 mm, 100 mm, 155 mm, 205 mm
• Maximum Resolution : 0.5 μm
• Accuracy : 2 μm p-p to 6 μm p-p (depends on the model)
• Dustproof, dripproof, and oilproof construction. Good environmental resistance. (P type)
• High measuring force (DK10/25/50/100P type) : 4.9 N to 9.3 N (depends on the model)
• Low measuring force (DK10/25/50/100N type) : 0.3 N to 2.7 N (depends on the model)
• Measurement can be performed by adsorbing it to the moving table with the attached magnetic adsorption type feeler (DK155/205).
• Built-in reference point
• Output signal: A/B/reference point (voltage-differential line driver output)

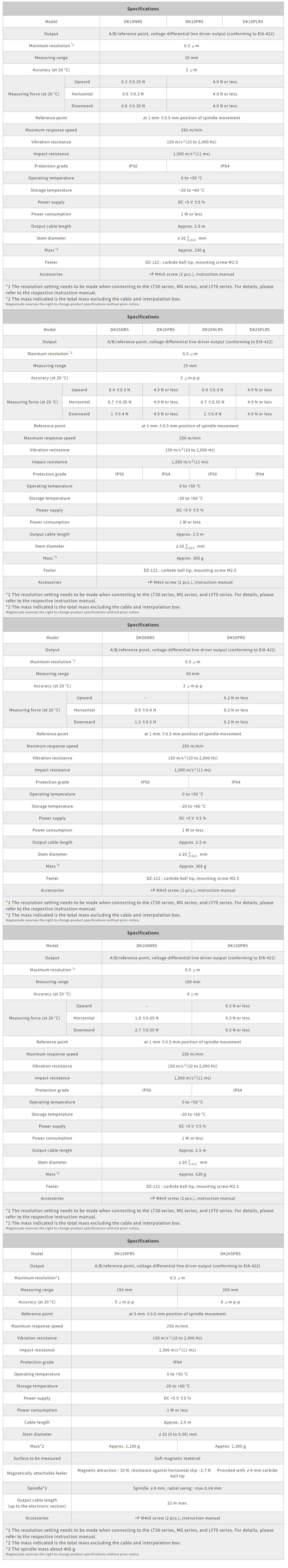

Specifications

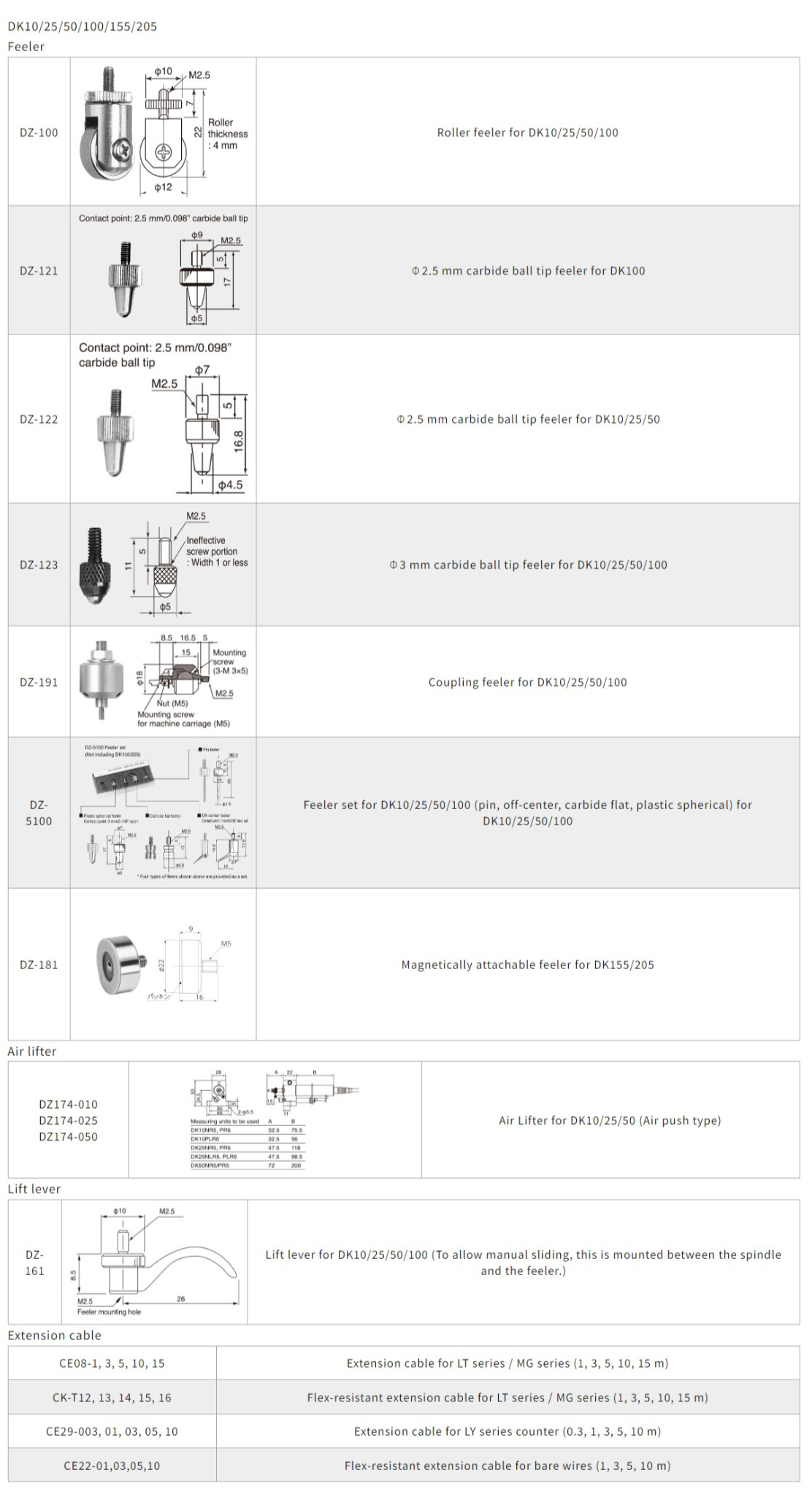

Accessory
