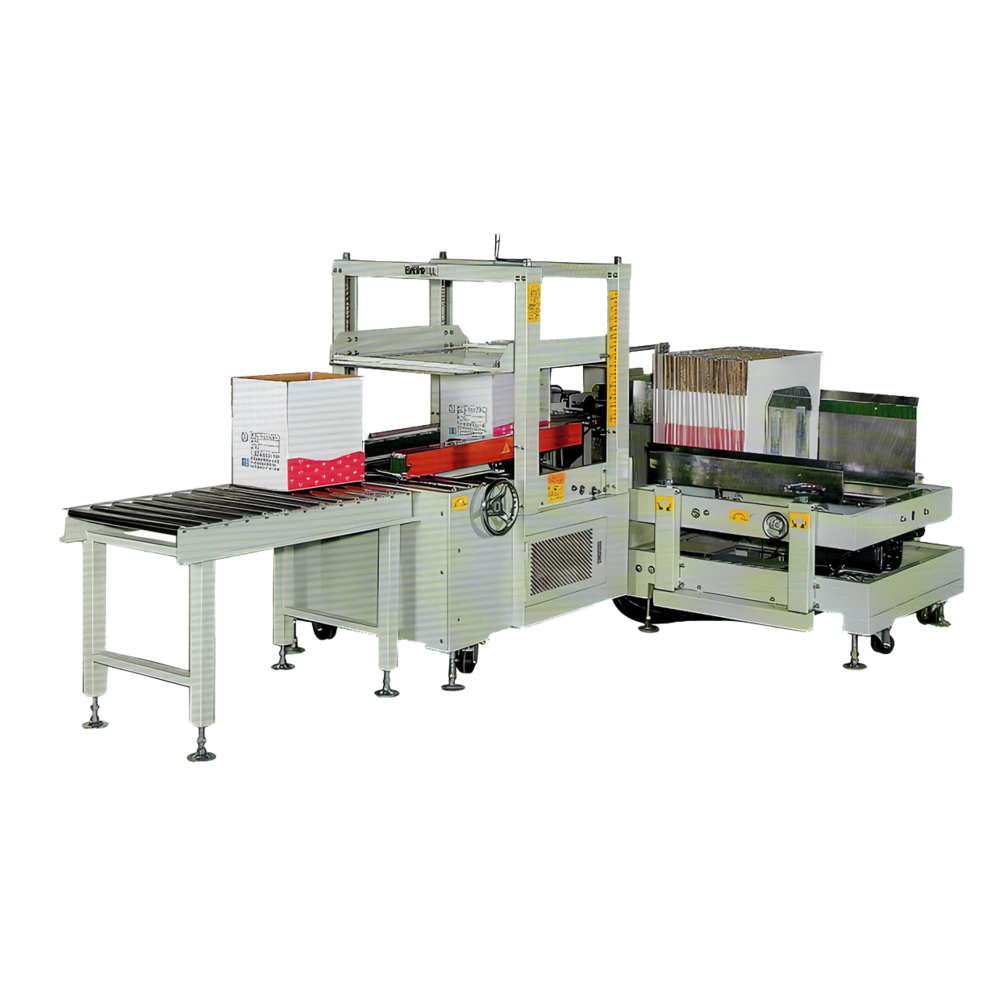

EB-701A Carton Erector (vertical type)

Inquiry

This model is designed for high-speed carton erecting and bottom sealing in a single process. With efficient and reliable performance, it can handle up to 12 cartons per minute, optimizing packaging operations and reducing labor costs. Ideal for various industries require consistent and precise carton forming.





Features

  • Fully automatic carton erecting and bottom sealing

  • Quick and easy adjustment for various carton sizes

  • PLC control for reliable operation

  • Equipped with powered storage tank

  • Compatible with conveyor systems, ideal for automated packaging lines




Techinical Data



Model

EB - 701A

Carton size
*customize available

L: 250-570 mm
W: 170-410 mm
H: 90-550 mm

Capacity

8-12 ctns/min

Tape width

2" / 3"
(48mm / 72mm)

Table Height

570-750 mm

Electrical Requirement

*customize available

110V, 220V, 230V, 240V   50/60Hz 1φ
220V, 380V, 400V, 415V   50/60Hz 3φ

Air Compressing

5kg/cm², 450L/min

Machine Dimension

(L × W × H)
2354 × 1669 × 1714 mm

Storage Tank

powerd
70-100 cartons
