TOYO

ETH Series Ball screw driven actuators

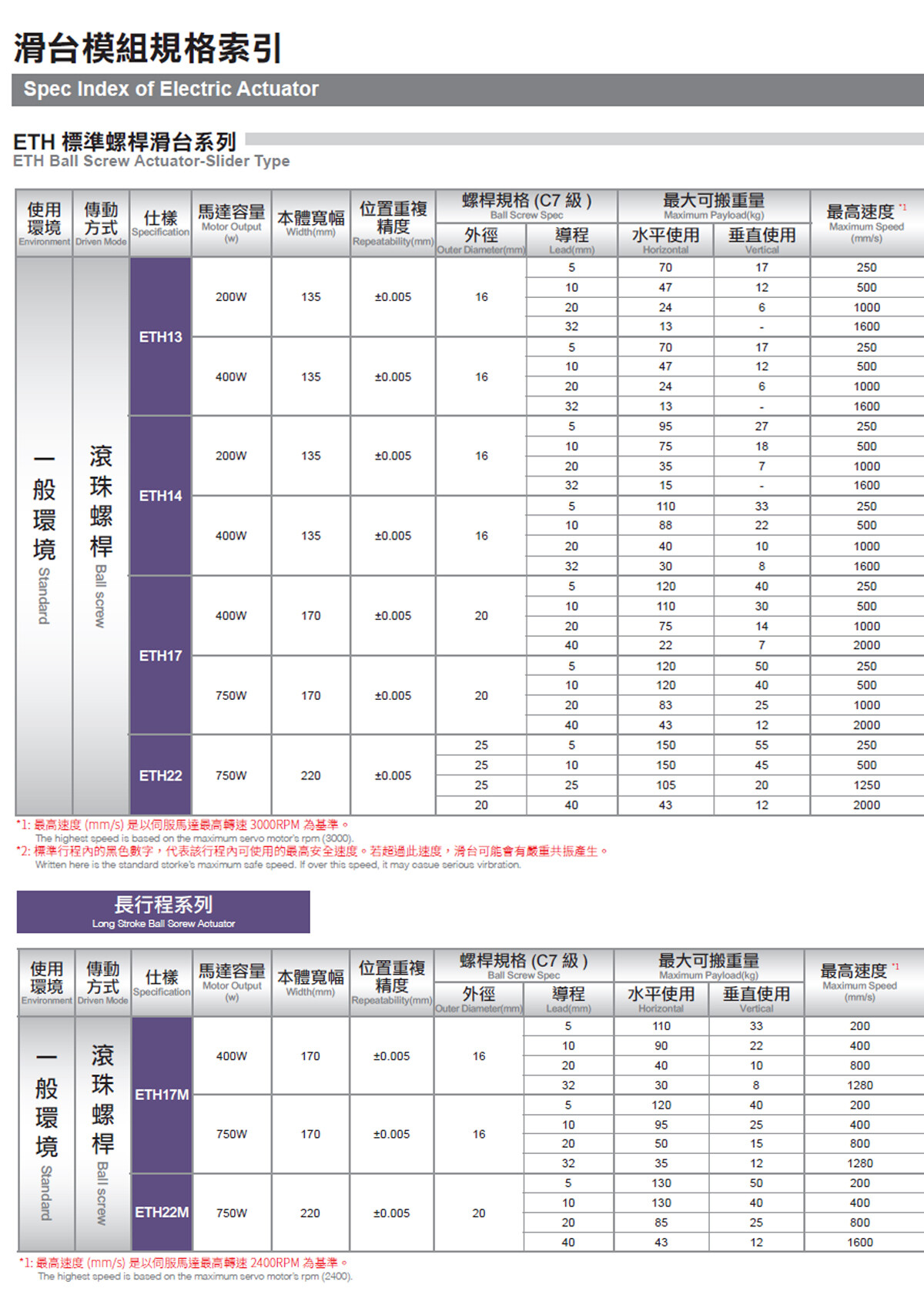

  • Repeatability: +0.005 (mm)
  • Horizontal Range from 13 kg up to 150kg
  • Vertical Range from 6kg to 55kg
  • Max Speed: 250mm/s to 2,000mm/s (w/ 40mm lead)
  • Available Stroke Lengths: 50-2400mm

Inquiry

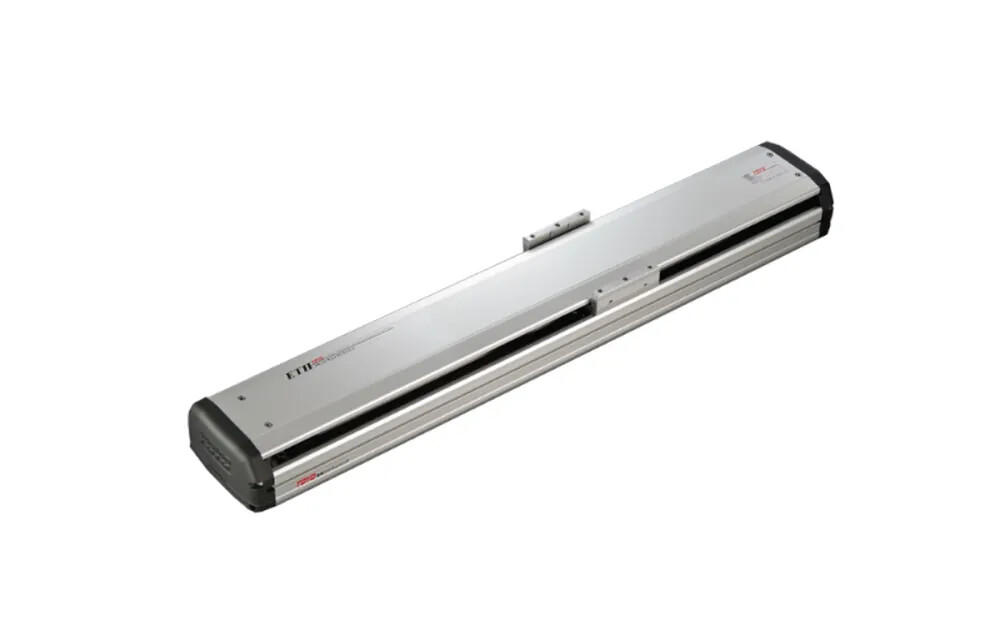

ETH Series Ball screw driven actuators

The ETH standard ball screw actuator is assembled with a class C7 rolled ball screw for high accuracy and repeatability. It is supported by precision grade recirculating Linear Guides for smooth accurate motion. Featuring durable aluminum construction which provides a strong and stable mounting surface for ease of assembly.

We also offer both TAPPED holes in the mounting base as well as THRU holes to mount from the top. This actuator can be easily configured for a Cartesian system.  All our actuators come complete with Motor Adaptor Plate and Coupling! This is all included in the price of the actuator.   In addition, we offer limit switches that can be mounted on the unit for precise motion control. Our cover plate offers a flush enclosed unit that can prevent pinch points. Stroke lengths can be customized as well as additional carriages. Please contact our Application Department for assistance in sizing your Linear Actuator.

TOYO_ETH Series

Application Fields

Used for work positioning, gripping, handling, and insertion.

Applied in electronic component assembly, circuit board, and wafer box positioning and insertion in automation fields.

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

TOYO Actuators

TOYO_Standard Ball Screw Actuator_ETH_Series_Brochure_CN
