ETP

ETP-EXPRESS

  • Extremely fast mounting/dismantling with only ONE screw.
  • Radial tightening of the screw saves space along the shaft.
  • Extremely small built-in dimensions.
  • Accurate positioning, no axial movement when mounting.
  • Good concentricity, also after several mountings.

Inquiry

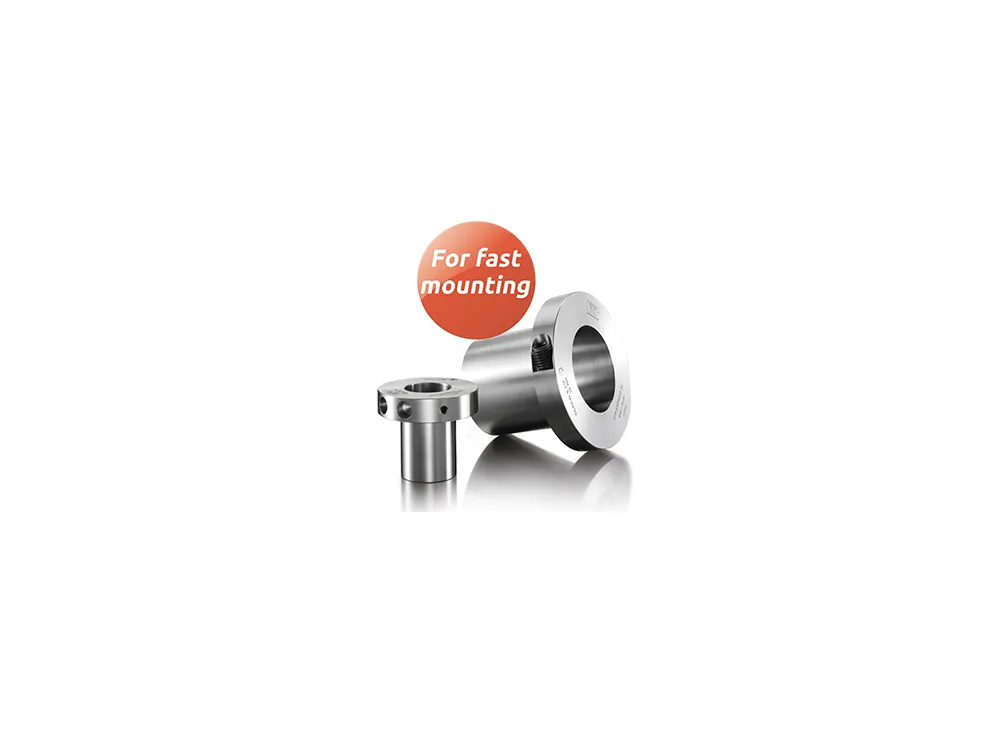

ETP-EXPRESS

ETP-EXPRESS is a hydraulic connection which has only ONE screw for pressurising.
It is especially suitable for repositioning of the hub fast and accurately. The screw is tightened in the radial direction, this means no space is used along the shaft for mounting tools. Other components can be mounted on the shaft all the way up to the flange. ETP-EXPRESS has extremely small built-in dimensions which makes a compact design possible.

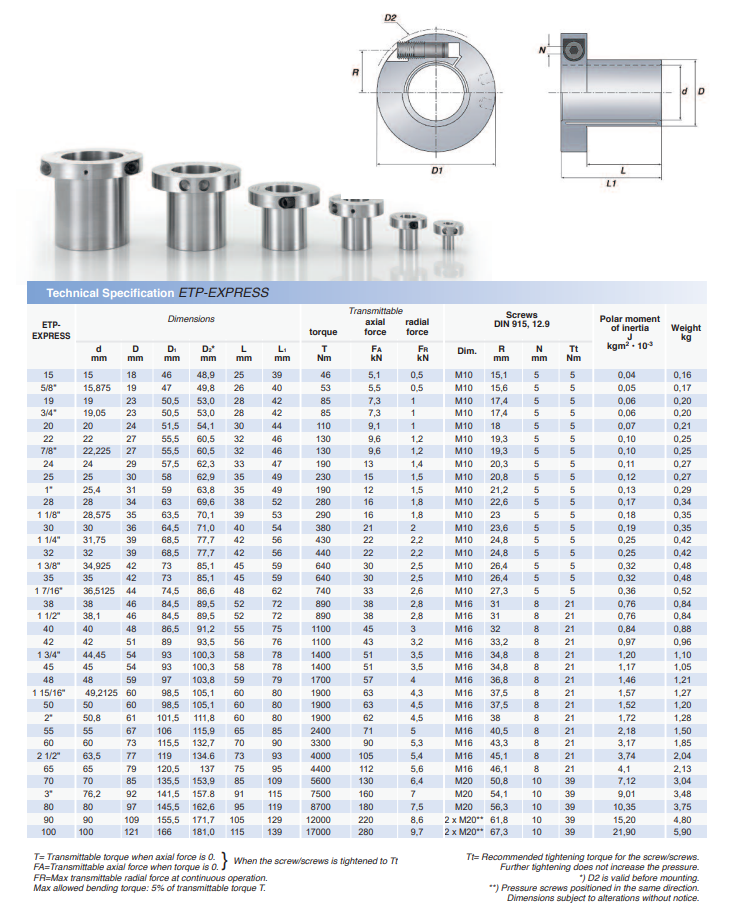

ETP-EXPRESS Specification

ETP-EXPRESS R 標準配置適用於15-80毫米的軸,也包括英制尺寸。偏差 ≤ 0.02 毫米。安裝次數為200至800次(取決於尺寸)。極其薄的內置尺寸使得能夠實現緊湊的設計,具有輕巧和慣性低的特點。

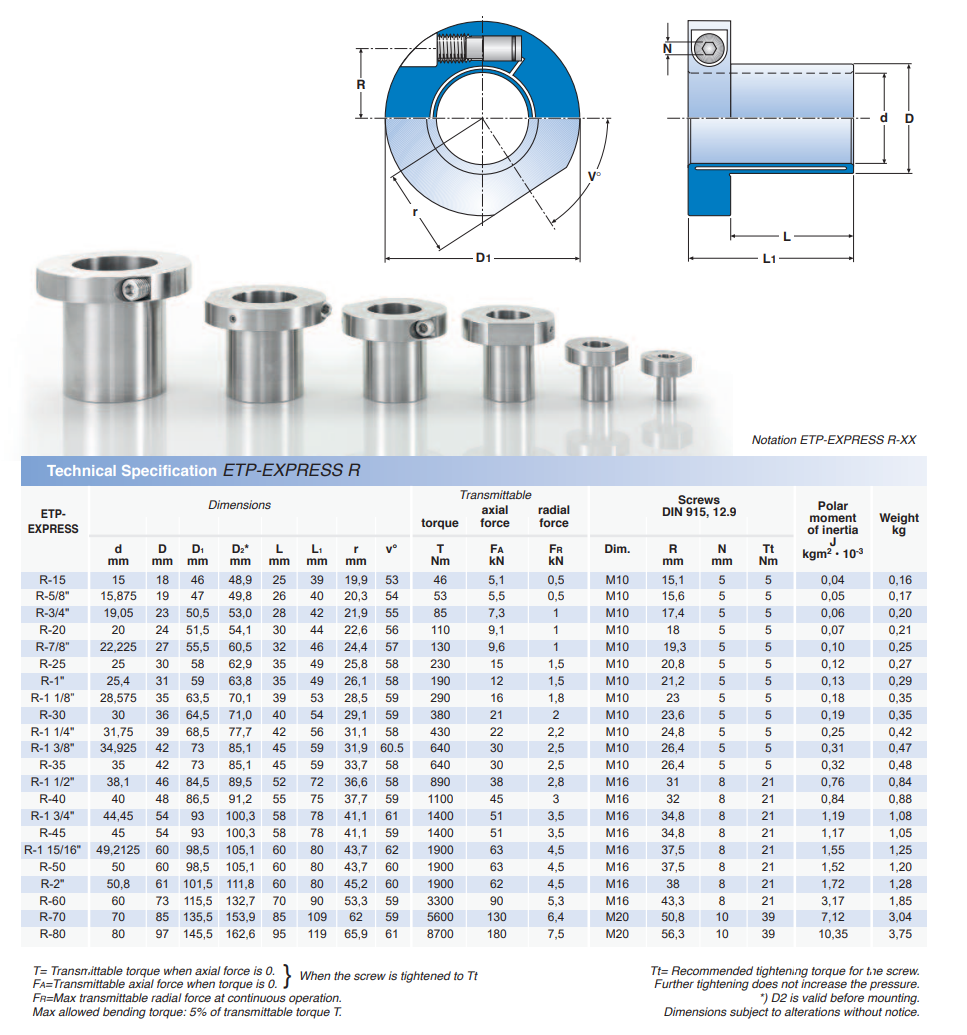

ETP-EXPRESS R 規格

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

ETP_Catalogue

ETP Handling instructions

ETP-EXPRESS R Data sheet

ETP-EXPRESS Data sheet
