ETP

ETP-TECHNO

  • Extremely fast mounting/dismantling with only ONE screw.
  • Can be mounted/dismantled 1000´s of times.
  • Extremely good concentricity, ≤ 0.006 mm, also after several mountings.
  • Dual sealing system.
  • Radial tightening of the screw saves space along the shaft.
  • Accurate positioning, no axial movement when mounting.

Inquiry

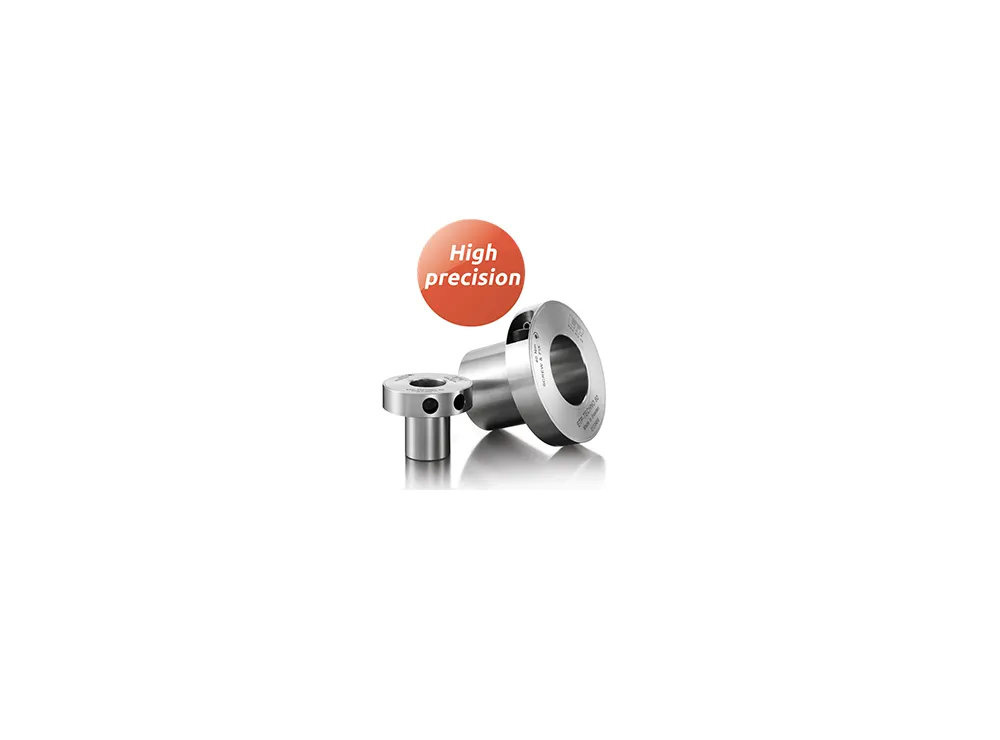

ETP-TECHNO

Locking bush for maximum precision and frequent assembly

The ETP-TECHNO® is a hydraulic locking bush with the highest precision. It is especially suitable for quick and frequent assembly and/or adjustments of the hub with extreme accuracy. ETP-TECHNO® can be installed/removed up to 5,000 times. It is easy to mount with just one screw and boasts excellent concentricity. ETP-TECHNO® is the ideal product for very high-precision tasks.



Highlights

  • Very rapid assembly/disassembly with just ONE radial screw
  • Radial pressure screw allows for space-saving arrangement
  • Can be installed/removed up to 5,000 times
  • Excellent concentricity (≤ 0.006 mm), even after being installed multiple times
  • Double sealing function
  • Compact mounting dimensions
  • Precise positioning, no axial displacement during mounting
  • Standard versions for torque range from 50 to 32,000 Nm
  • Standard versions for shaft diameters from 15 mm to 130 mm


Structure

The hydraulic locking bush consists of a double wall, hardened steel sleeve filled with a pressure medium and a flange element. The flange element contains a press/pressure mechanism, which consists of a screw and piston with a double sealing function, an O-ring and a steel ball, which presses against a spherical seat.



Function

When the pressure screw is tightened, the double-wall sleeve expands evenly against the shaft and the hub and thereby creates a fixed connection. After loosening the pressure screw, ETP-TECHNO® returns to its initial state and is easy to remove.



Applications

  • Test bench construction
  • Machine tools
  • Printing machines

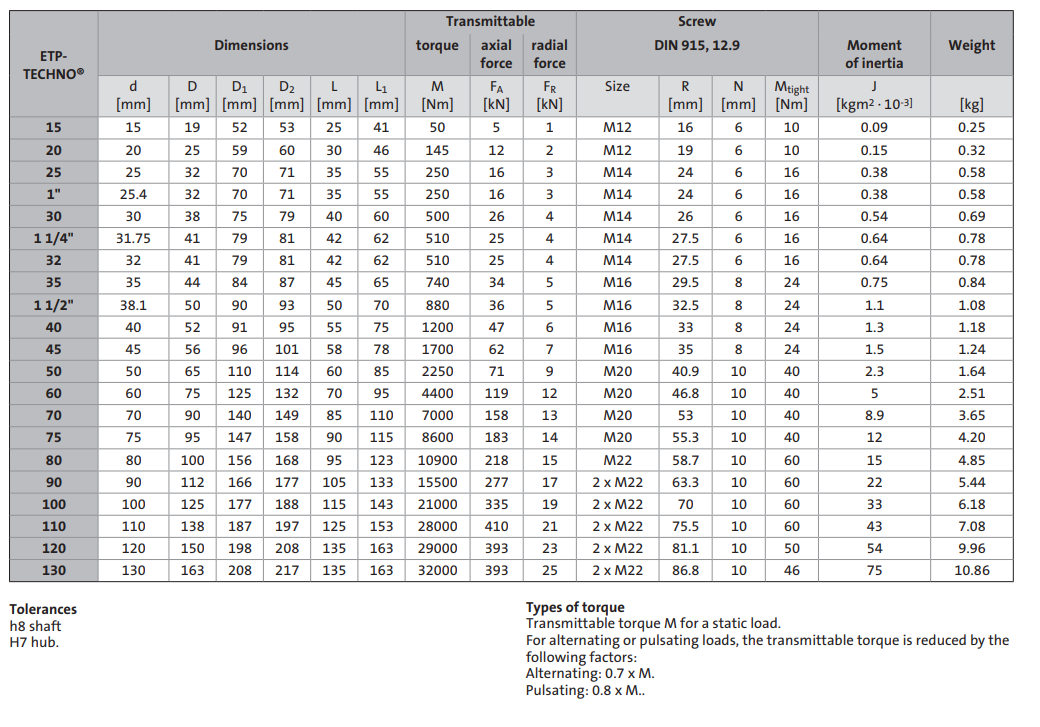

ETP-TECHNO® technical specifications

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

ETP_Catalogue

ETP-TECHNO Data sheet

ETP TECHNO Handling instructions
