IFD9506 EtherNet/IP Communication Device

  • Isolation in RS-485 channel (incl. power supply)
  • Supports Modbus TCP protocol
  • Supports EtherNet/IP (V2.04 or above)
  • Smart Monitor function
  • Supports webpage setup & on-line monitoring
  • Serial Virtual COM available
  • 3 e-mail alarms (DI)

Inquiry

Features

  • It auto-detects Ethernet 10/100 Mbps transmission speed; MDI/MDI-X auto-detects the required cable connection type without jump wire.
  • It supports Modbus TCP protocol and UD Link, which works in both serial master and slave modes.
  • It supports the Ethernet / IP Adapter mode (see Note 1). In the serial master mode, the device monitoring tables of IFD9506 can be read through Implicit Message, and Modbus instructions can be transmitted through Explicit Message (via function codes: 0x03 and 0x06).
  • In the serial device server mode, the two-way communication is supported, but only the UD link mode is available.
  • The monitored data are stored via smart Monitor table so as to fast read the device data. The maximum number of data which can be temporarily stored is 100 (See Note 2).
  • It is able to send out E-Mails when the external input point is triggered. (The account-password and encryption protocols, e.g. SSL/TLS are not supported)
  • The communication and the power supply are isolated from each other, and the immunity against the noise is strong.
  • The Modbus station address, communication format and the baud rate can be set by the external rotary switches.
  • It has virtual serial COM ports.



Specifications

Network Interface

Transmission method: IEEE 802.3, IEEE 802.3u

Transmission interface: RJ-45 MDI/MDIX, no jumper cable required

Baudrate: 10/100M bps, auto-detection

Network protocols: ICMP, IP, TCP, UDP, DHCP, SMTP, Modbus TCP, EtherNet/IP (V2.04 or above)

Power supply voltage: 24 VDC (-15 to 20%)

Power consumption: 3 W

Insulation voltage: 500 V



RS-485 Interface

Connector 1: RJ-11, 10-pin feed through terminal

Connector 2: 3-pin, removable

Transmission method: RS-485

Serial baudrate: 1,200, 2,400, 4,800, 9,600, 19,200, 38,400, 57,600, 115,200 bps

Data type: Modbus ASCII/RTU, user-defined

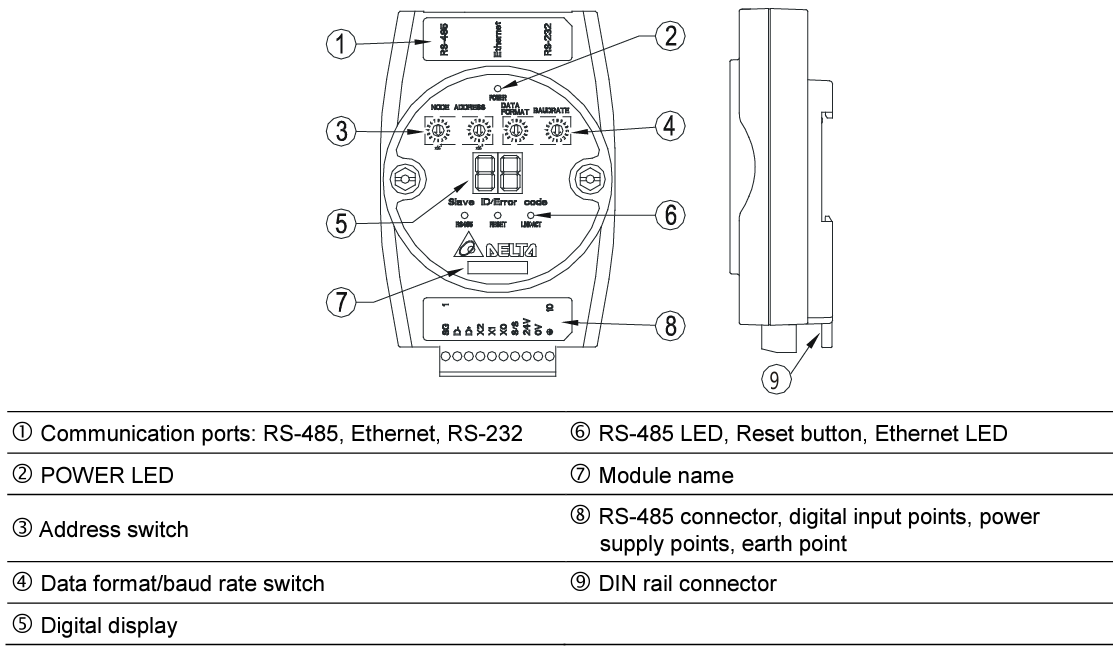

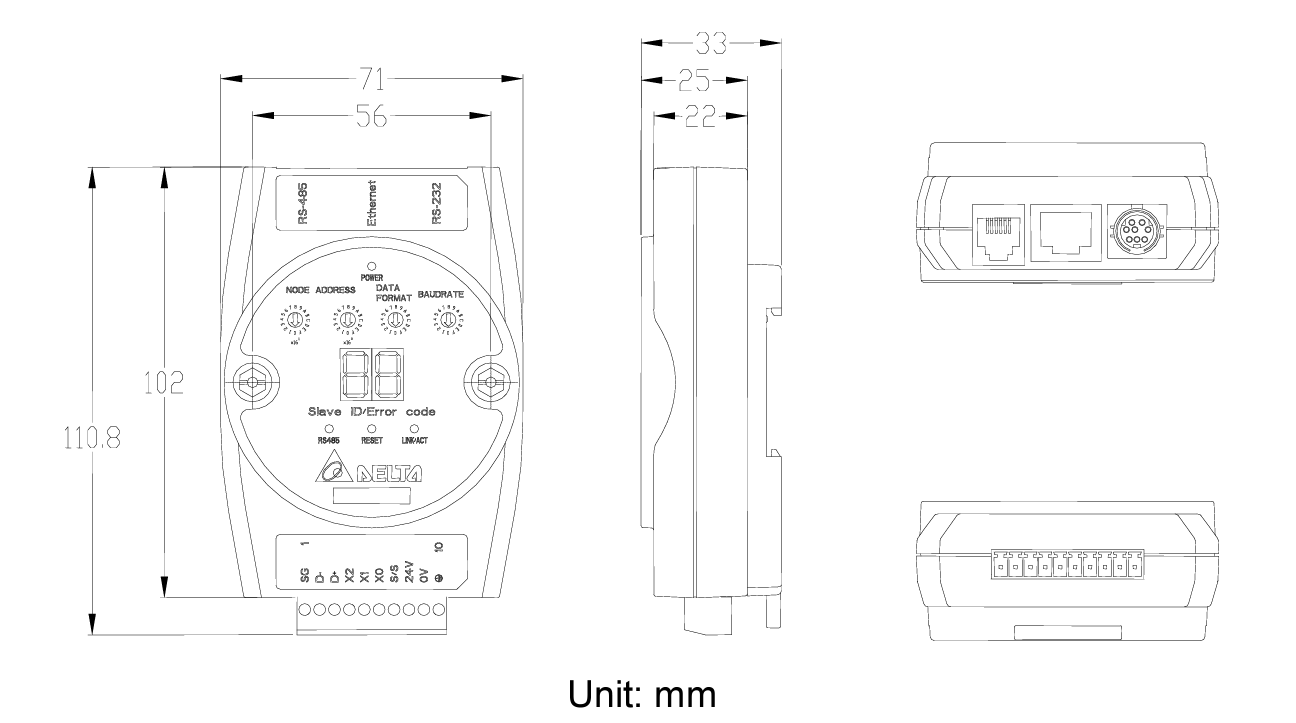

Product Profile & Outline

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta_IA-IFS_IFD9506_Manual_EN

Delta_IA-IFS_IFD9506_Manual_TC

Delta_Industrial-Ethernet-Solution_EN_2023

Delta_Industrial-Ethernet-Solution_TC_2023
