ABB

IRB 1200

  • 15% smaller cells that have 10% shorter cycle times
  • Available with Food Grade Lubrication
  • Optionally with SafeMove functionality
  • Available with Foundry Plus 2 protection for harsh environments
  • IP40 protection as standard; Clean Room, IP67 and Foundry Plus 2 protection are also available options
  • 4 air ducts, 10 customer signals and Ethernet routed internally from wrist flange to foot
  • Mountable at any angle
  • Large usable working area in a compact footprint

Inquiry

ABB’s IRB 1200 addresses the needs of the Material Handling and Machine Tending industries for flexibility, ease-of-use, compactness and short cycle times while still maintaining large working envelopes



Key features

As a family of robots, the IRB 1200 comes in two variants which can handle a wide range of applications. Both IRB 1200 variants can be mounted at any angle and come with IP 40 protection as standard. Both variants are available with Food Grade Lubrication, SafeMove, Foundry Plus 2 and Clean Room option. The 700 mm reach variant can carry a payload of up to 7 kg, while the longer reach 900 mm variant can carry up to 5 kg of payload.

Food Grade Lubrication and Clean Room option
This Food Grade Lubrication (NSF H1) option includes Clean Room ISO class 3 and IP67 protection rating which ensure uncompromising safety and hygiene for food and beverage applications. The Clean Room ISO class 3 design eliminates the potential for contamination of the food handling area. This option provides smooth surfaces and makes it easy to keep clean and maintain in environments such as CNC machine tending and material handling in the food industry. This results in features that allow for 15% smaller cells with 10% shorter cycle times.

Compact
The IRB 1200 has no offset in axis two, which results in a longer stroke than other small robots and it, meaning it can be placed very close to the work piece and still be functional.

This allows for a much more compact installation when the robot is mounted on the ceiling inside a small cell, such as in electronics machining or polishing applications. The robots’ large useable working area contained in a small package leads to shorter cycles and more compact machines.

Features and benefits

  • 15% smaller cells that have 10% shorter cycle times
  • Available with Food Grade Lubrication
  • Optionally with SafeMove functionality
  • Available with Foundry Plus 2 protection for harsh environments
  • IP40 protection as standard; Clean Room, IP67 and Foundry Plus 2 protection are also available options
  • 4 air ducts, 10 customer signals and Ethernet routed internally from wrist flange to foot
  • Mountable at any angle
  • Large usable working area in a compact footprint


The IRB 1200 is powered by OmniCore C30 compact, C90XT rugged compact, or IRC5 controllers.

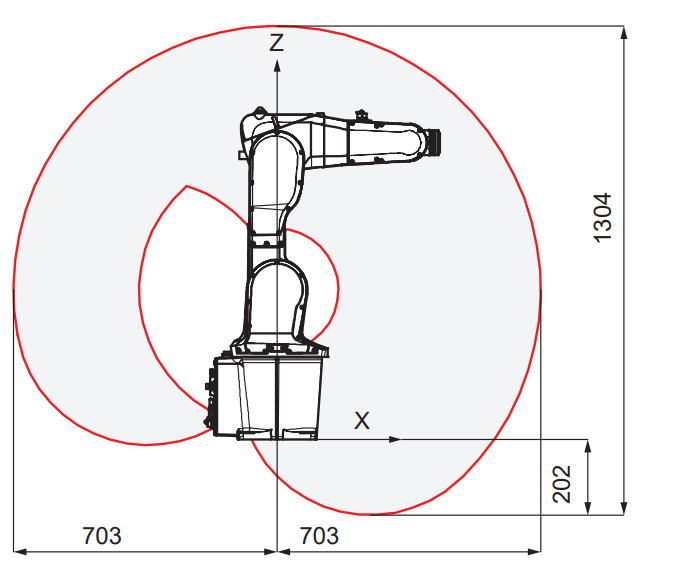

Working range, IRB 1200 7/0.7

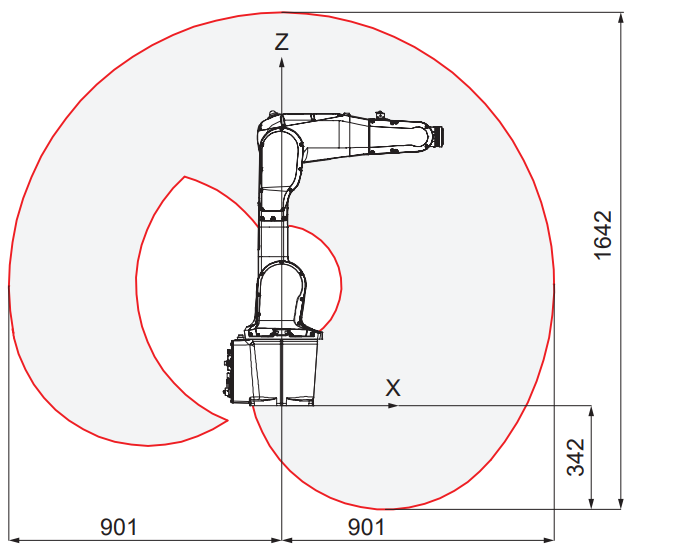

Working range, IRB 1200 5/0.9

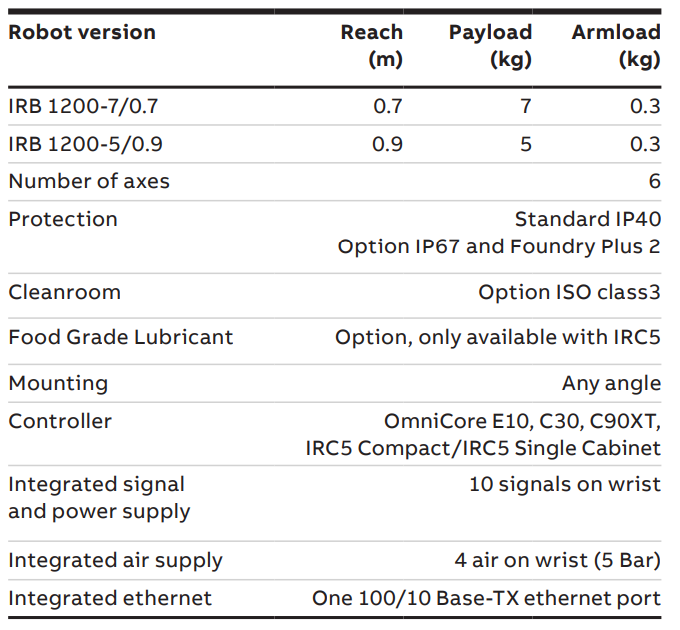

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

ABB-ProductRange

ABB_IRB1200_Manual

ABB_IRB1200_Datasheet
