ABB

IRB 4600

  • New Design. New Features. New Technologies
  • Shortest cycle times
  • Ultra-wide working range
  • Compactness
  • Best protection available
  • Optimize and go sharp

Inquiry

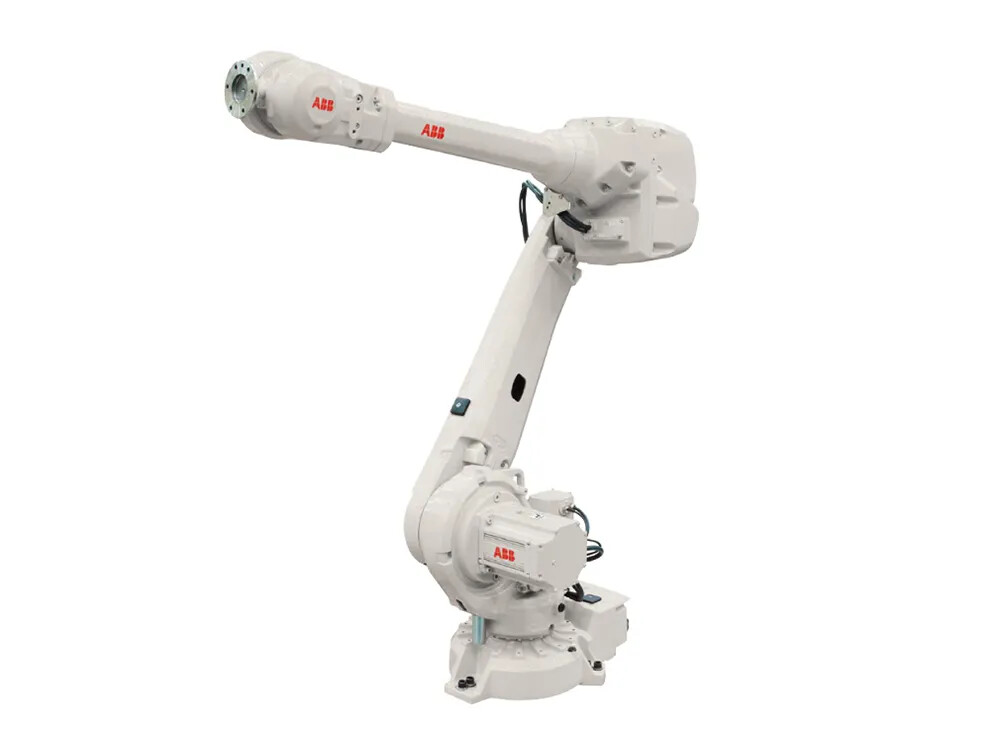

IRB 4600

IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity.



Key features

New Design. New Features. New Technologies
IRB 4600 is a highly productive general purpose robot optimized for short cycle times where compact robots can help create high density cells. The IRB 4600 enables more compact manufacturing cells with increased production output and higher quality - and that means improved productivity.

Shortest cycle times
Thanks to the new compact and optimized design resulting in a low weight, the IRB 4600 can cut the cycle times of the industry benchmark by up to 25%. The maximum acceleration achievable is highest in its class, together with high maximum speeds. With the high acceleration it is possible to use to avoid obstacles or to follow the path. The benefit is increased production capacity and higher productivity.

Ultra-wide working range
You can position the IRB 4600 in the most favorable way with regard to reach, cycle time and auxiliary equipment. Flexible mounting with floor, tilted, semishelf or inverted mounting is very useful when you are simulating the best position for your application.

Compactness
The small footprint, the slim swing base radius around axis 1, the fine elbow behind axis 3, the small lower and upper arms, and the compact wrist all contribute to the most compact robot in its class. With the IRB 4600 you can create your production cell with reduced floorspace by placing the robot closer to the served machines, which also increases your output and your productivity.



Best protection available
ABB has the most comprehensive protection program on the market and it will be even further enhanced with the IRB 4600. Foundry Plus includes IP 67, resistant paint, rust protected mounting flange and protection for molten metal spits on non-moving cables on the rear of the robot and extra protection plates over the floor cable connections on the foot.

Optimize and go sharp
To get the IRB 4600 ready for the targeted applications you have access to high performing Workpiece Positioners, Track Motions, and the Motor and Gear Unit range. To simulate your production cell to find the optimal position for the robot and program it offline, RobotStudio is available on subscription together with PowerPacs for several applications.

Main applications:

  • Arc Welding
  • Assembly
  • Material Handling
  • Machine Tending
  • Material Removal
  • Cleaning/Spraying
  • Dispensing
  • Packing
  • Laser Cutting
  • Laser Welding


OmniCore V250XT
Powered by OmniCore V250XT versatile controller for material handling, machine tending, and assembly.

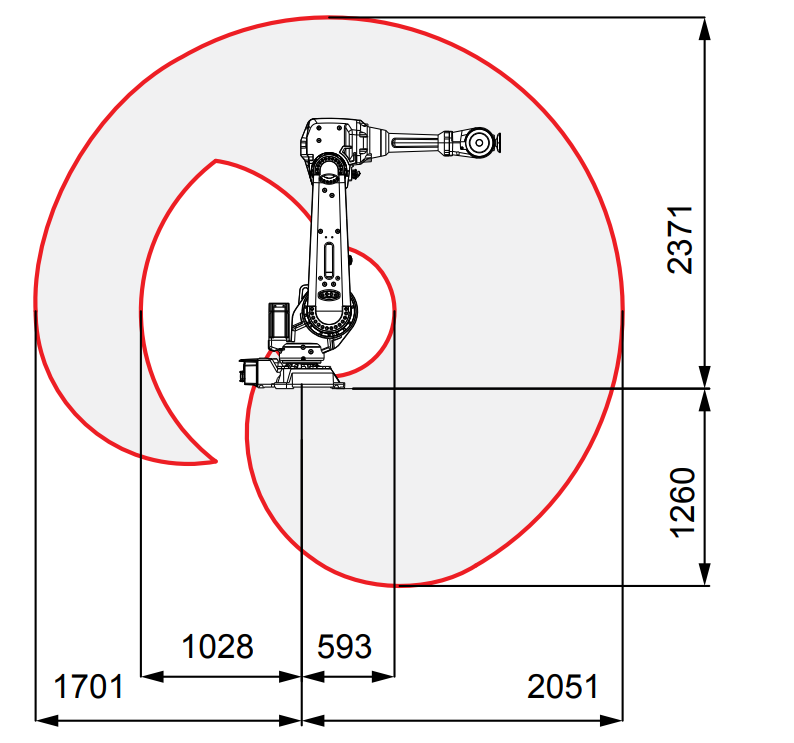

Working range, IRB 4600-60/2.05, IRB 4600-45/2.05 2833 1696

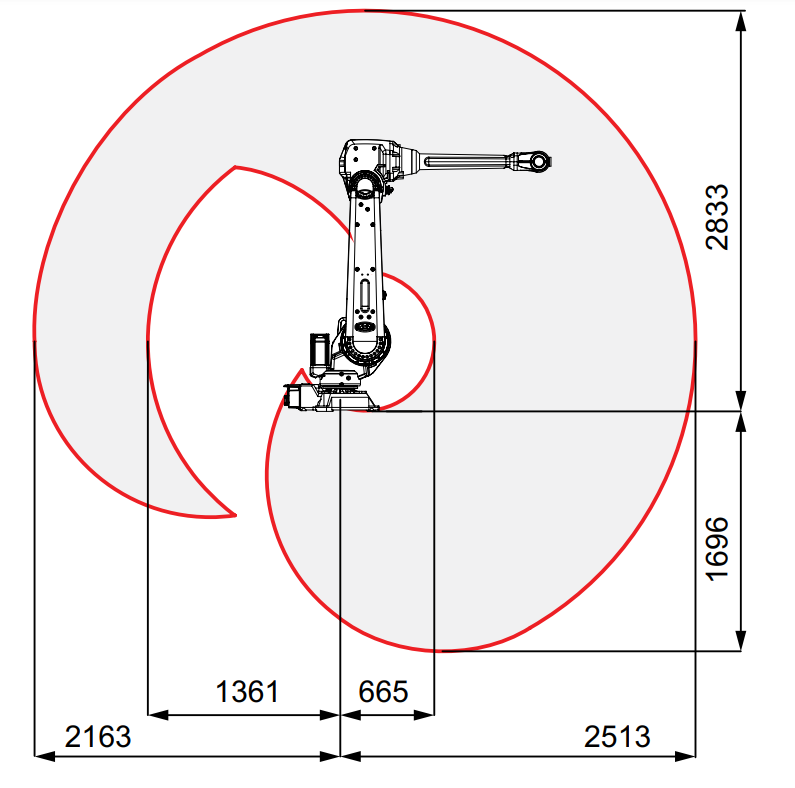

Working range, IRB 4600-40/2.55

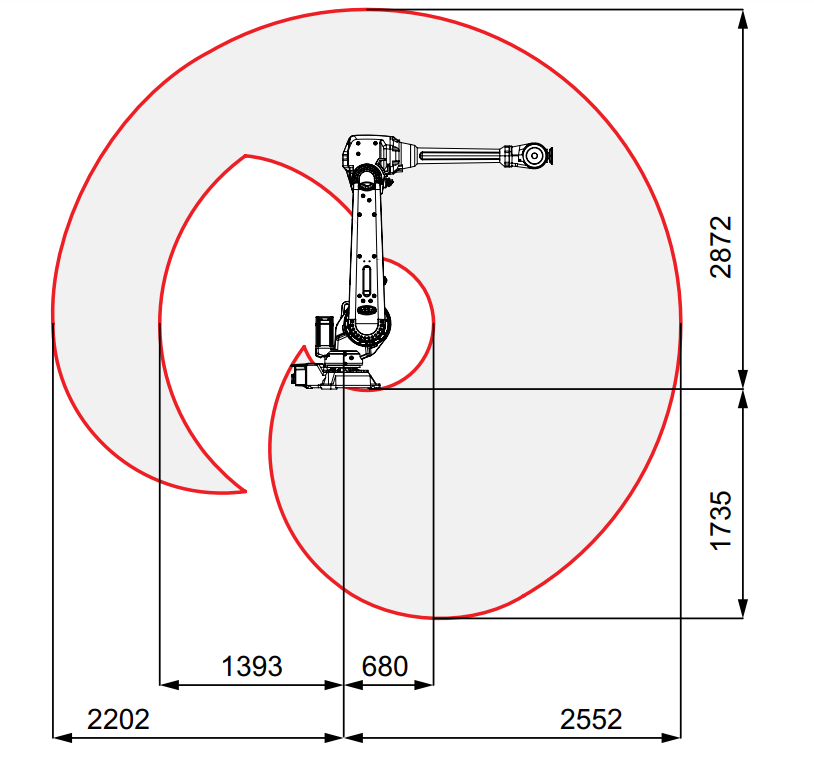

Working range, IRB 4600-20/2.50

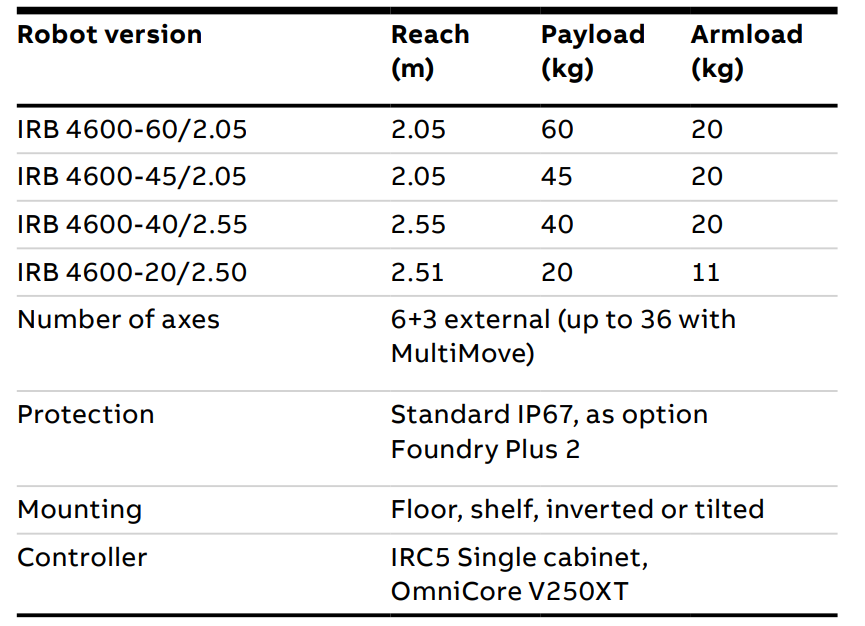

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

ABB-ProductRange

ABB_IRB4600_Manual

ABB_IRB4600_Datasheet
