Magnescale

MG80 Series Interface unit

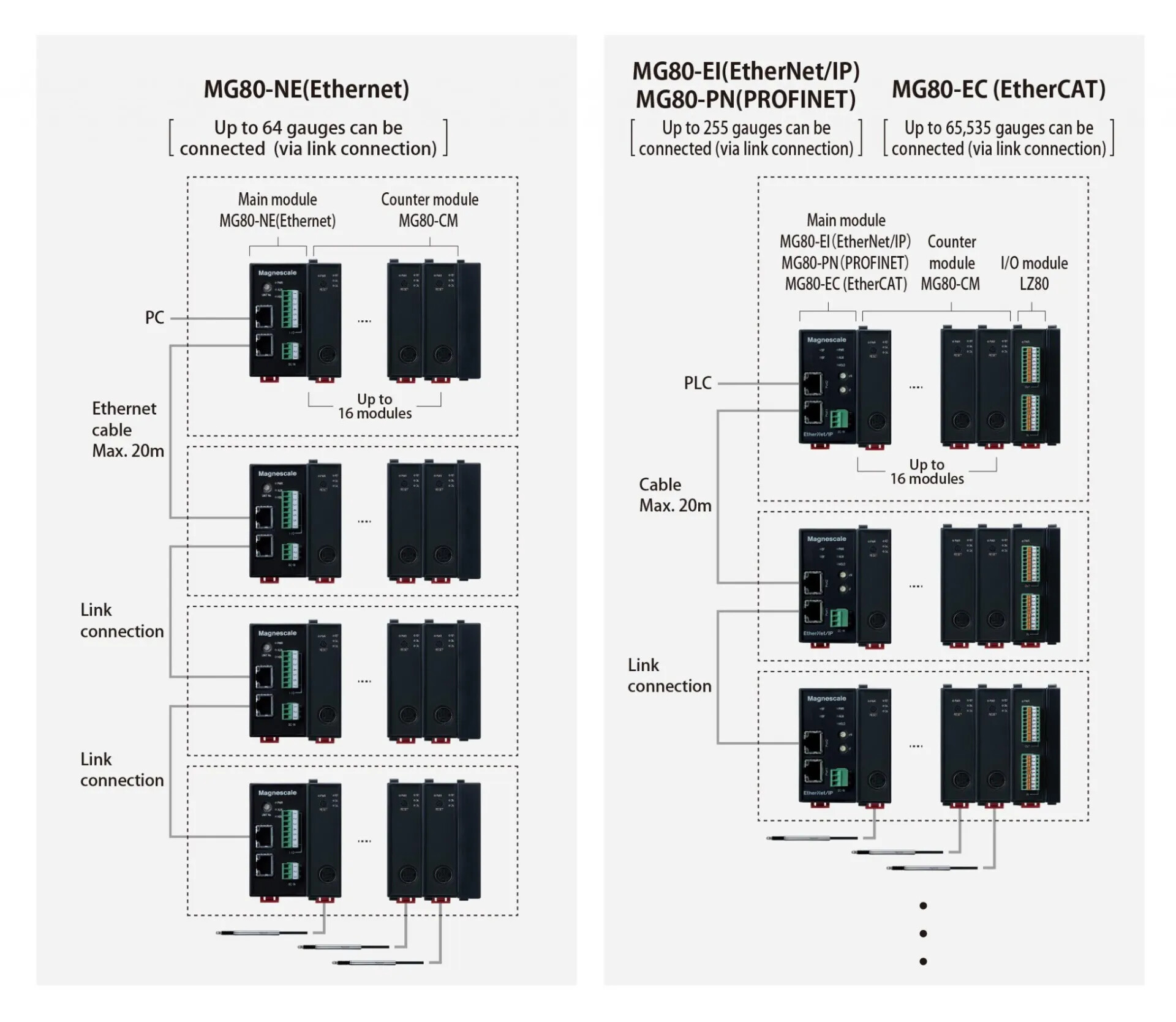

  • Each module can connect up to 16 axes as a single device.
  • MG80-NE: Supports up to 4 devices, accommodating up to 64 axes of measuring components.
  • MG80-EI, MG80-PN: Can technically connect up to 255 devices by configuring the fieldbus IP address.
  • MG80-EC: Allows technical connections with up to 65,535 devices.

Inquiry

MG80 Series Interface unit

Interface unit for DK800S, DK and DT series.
The data from the measuring unit can be sent to a PLC via Ethernet, EtherNet/IP, PROFINET or EtherCAT fieldbus.

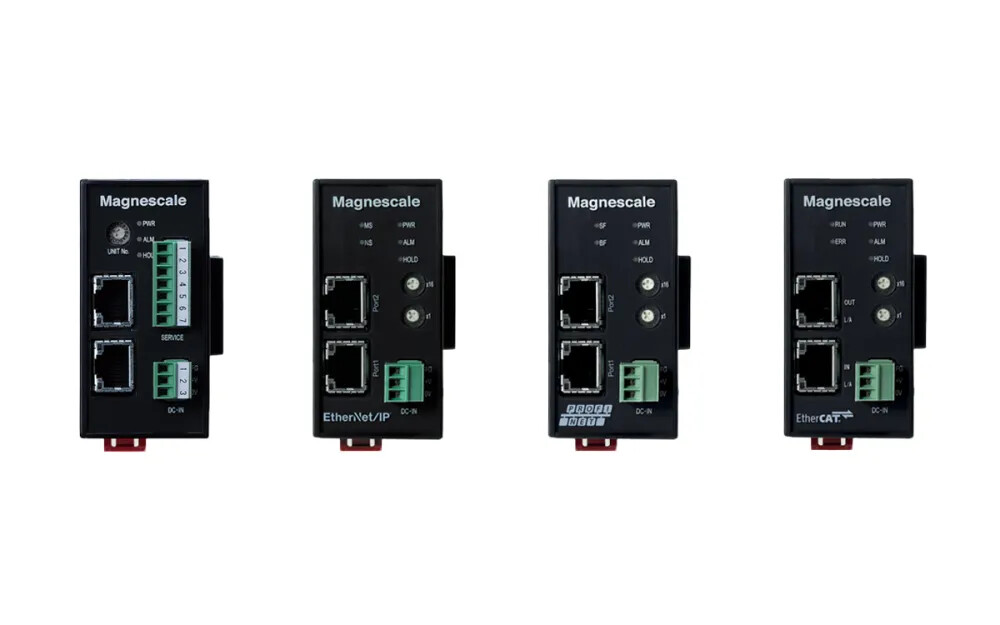

MG80-NE (Ethernet) / MG80-EI (EtherNet/IP) / MG80-PN (PROFINET) / MG80-EC (EtherCAT)

  • Fieldbus-compatible interface unit.
  • Each MG80-xx and MG80-CM system can be linked via Ethernet cable to expand the number of gauges that can be connected (see specifications for details)

MG80-CM

  • Counter module for DK800S, DK and DT series (via MT13) digital gauges.
  • DIN rail mount for easy installation

LZ80-K1/K2

  • I/O module for MG80-EI, MG80-PN and MG80-EC.
  • Equipped with 8 inputs and 8 outputs

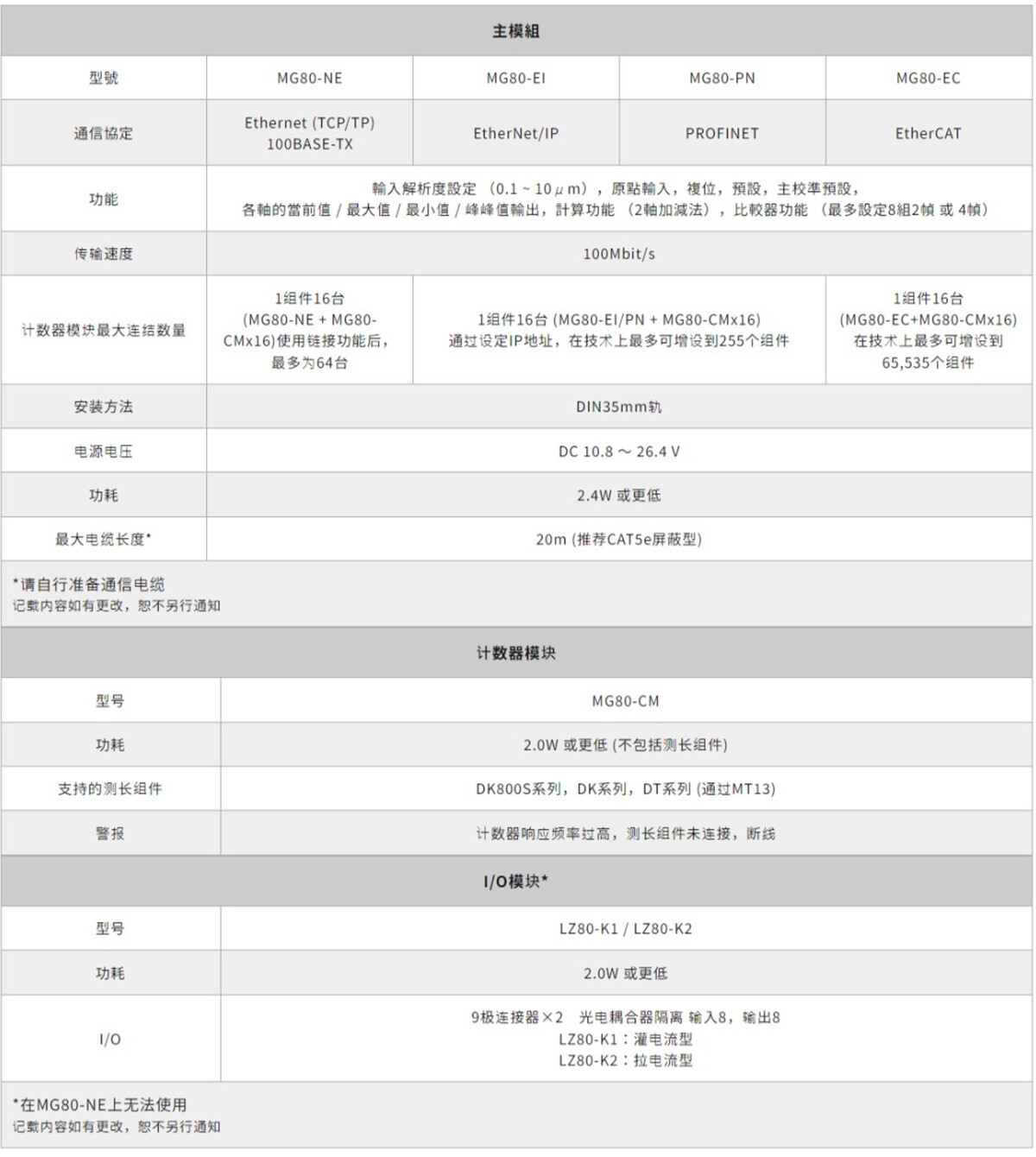

Specifications

Magnescale_介面模組 _MG80系列
Magnescale_介面模組 _MG80系列

Application

Applicable to various industrial generic communication protocols

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Magnescale_MG80-NE_PN_EI_EC_System Configuration Diagram_SC

Magnescale_MG80-NE_PN_EI_EC_System Configuration Diagram_EN

Magnescale_MG80-NE_EI_PN_EC_F_SC

Magnescale_MG80-NE_EI_PN_EC_F_EN

Magnescale_Digital Gauge_Catalog_EN
