Delta

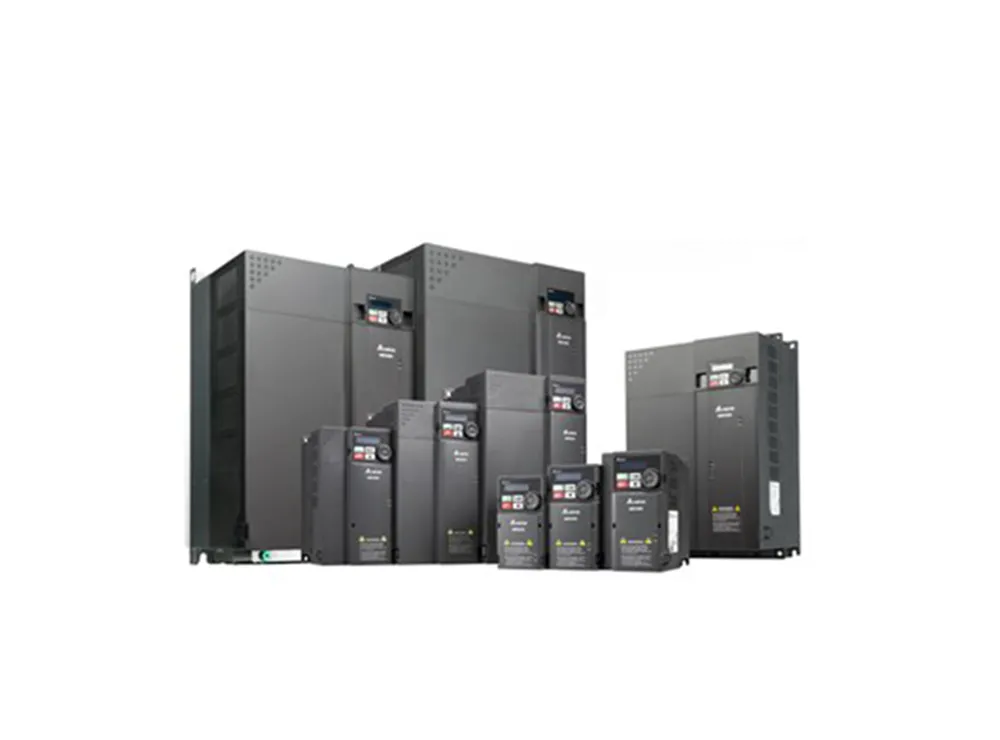

MH300 series

  • Outstanding Drive Performance
  • Strong System Support
  • Flexible Expansion
  • Advanced Tension Control

Inquiry

Applications

Machine tools, textile machinery, woodworking, rubber and plastic, winding / unwinding applications


Specifications

Outstanding Drive Performance

  • Overload capacity up to 150% / 60 sec, and 200% / 3 sec. Suitable for constant torque applications
  • Supports induction and permanent magnet motors with optional PG cards for highly precise speed and position control
  • Provides powerful torque output at low frequency (0.5 Hz / 200% without PG vector control; 0 Hz / 200% with PG vector control) for stable heavy-duty operation at low speed and high torque
  • Built-in constant tension control function
  • Speed, torque, and position control


Strong System Support

  • Built-in PLC with 5k steps; Supports system programming to save costs
  • Built-in STO (SIL2 / PL d) safety function and measures for sudden power outages
  • All models can be connected through a common DC bus
  • Built-in Modbus and CANopen interface; optional communication card, including EtherNet/IP, Modbus TCP, EtherCAT, DeviceNet, PROFIBUS DP, and PROFINET
  • Optional models with built-in filter
  • Optional 24V power supply card to reduce unexpected downtime


Flexible Expansion

  • Built-in two 33 kHz high-speed pulse input terminals (MI6 & 7) and one output terminal (DFM)
  • Built-in two accessory card slots for PG card, I/O expansion card, communication card, or 24V power card at the same time
  • Expandable to 3 DI and 3 DO, including 6 ports in total
  • Expandable to 2 or 3 relays


Advanced Tension Control

  • Built-in roll diameter calculation by linear speed, material thickness, and distance meter
  • Two PID parameters: Linearly adjustable to control tension at startup, of small / large rolls, and at high / low linear speed
  • Tension taper calculation: Automatically adjusts tension per the winding roll diameter to avoid wrinkles or deformation
  • Friction and inertia compensation for torque control: Automatically compensates friction and inertia during winding / unwinding for constant tension
  • Automatic roll change by merely using external signal without machine shutdown

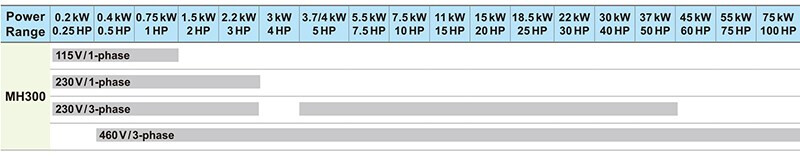

Power range

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta台達_MH300變頻器_Manual

Delta台達_MH300變頻器_Catalogue
