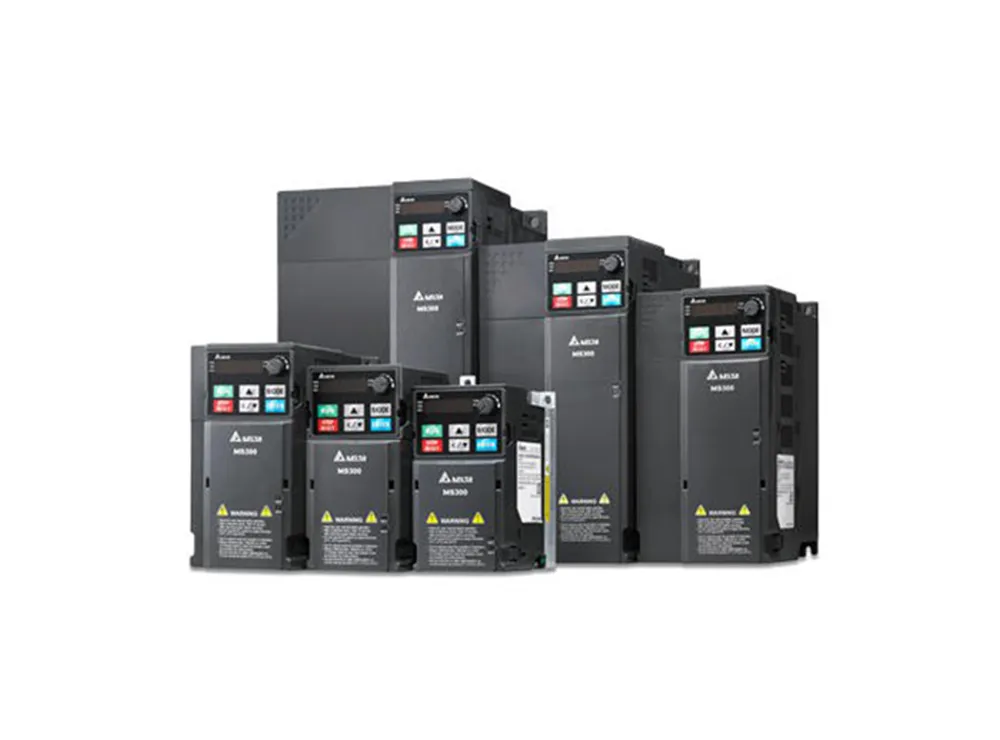

MS300 series

The Delta MS300 series is a standard compact vector control drive based on Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and includes the STO (Safe Torque Off) safety mechanism. It has essential functions built in, including PLC capacity for simple programming, a communication card slot (fits various cards), and a USB port for quick, easy data uploads / downloads. The MS300 series is a highly efficient, stable and space-saving system. It reduces your setup and wiring time the drive size is reduced by up to 40%.

Applications

Machine tools, textile machines, woodworking machines, packaging machines, electronics, fans, pumps, air compressors

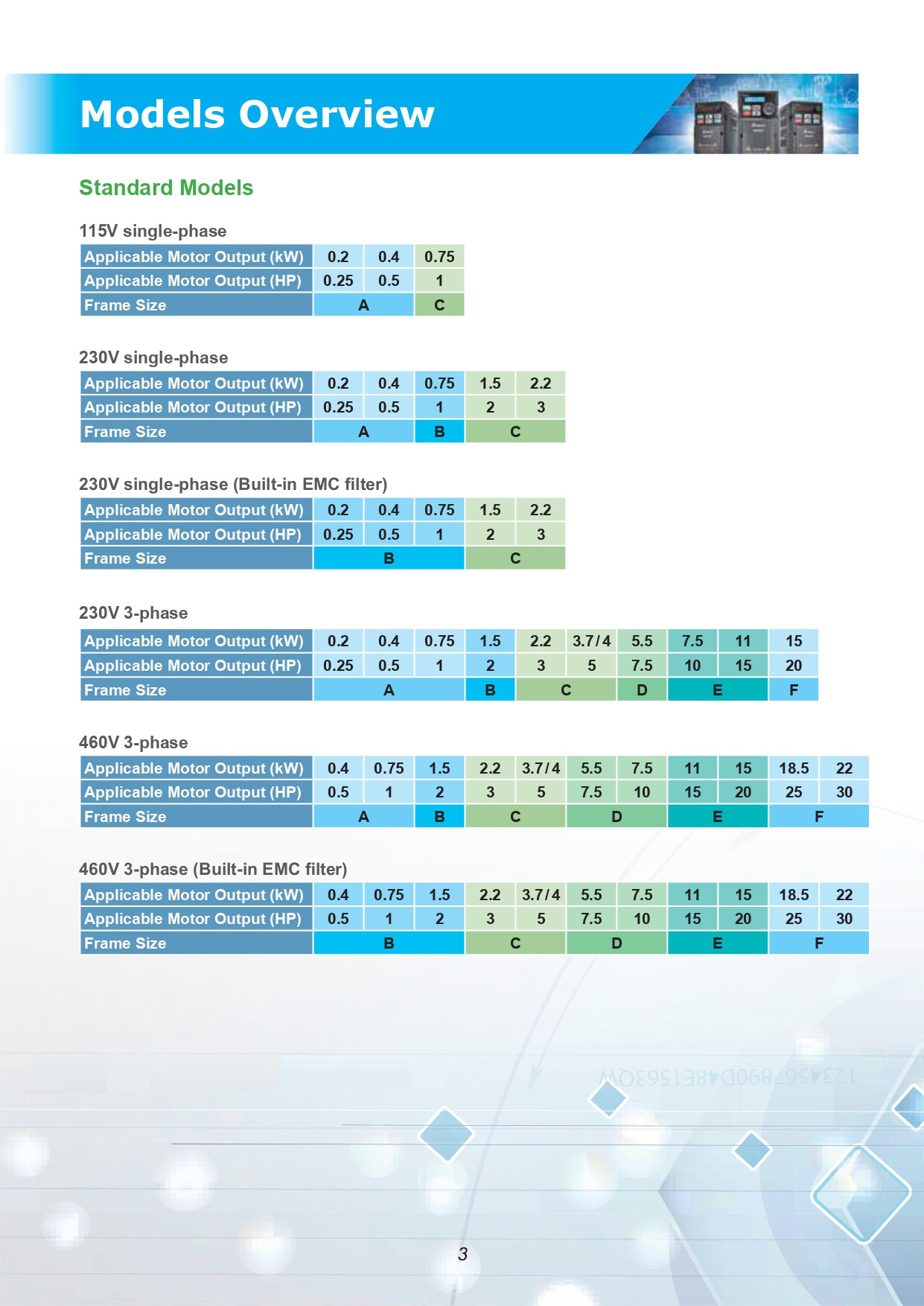

Standard Models

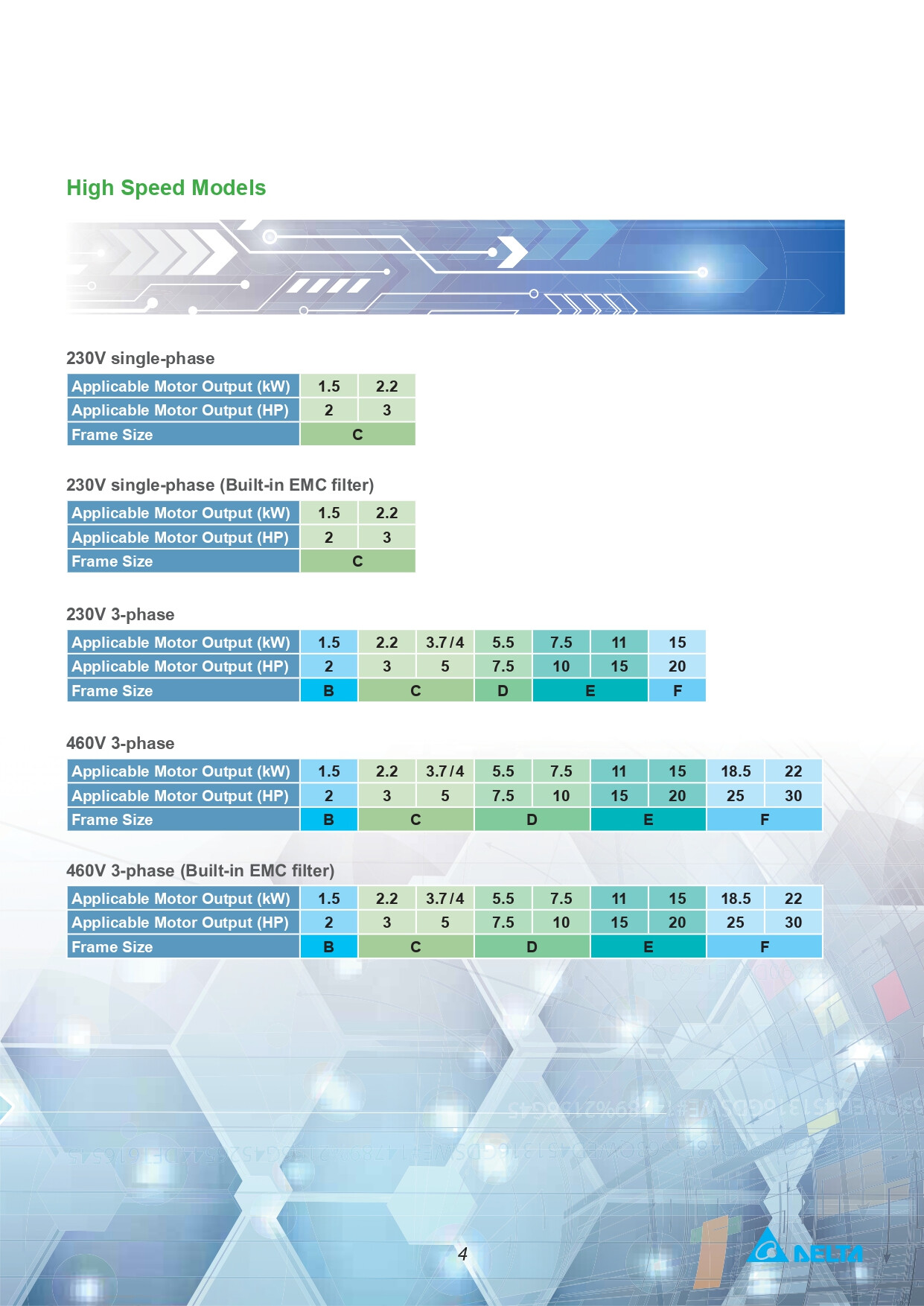

High Speed Models

Specifications

• Supports Open loop control of IM and PM motors
• Output frequency:
• Standard models: 0 to 599 Hz
• High speed models: 0 to 1500 Hz (V/f Control)
• Dual rating design:
• 120% for 60 seconds for Normal Duty (ND)
• 150% for 60 seconds for Heavy Duty (HD)
• Built-in PLC program with 2K steps capacity
• Built-in brake choppers for the entire series
• Removable 5-digit LED keypad for remote operation
• Safety standard compliance: Safe Torque Off (SIL2/PLd)
• Multi-motor Control，built-in four IM motor control parameters
• Optional built-in Class A (C2) standard EMC filter for 1-phase 230V, 3-phase 460V models
• One high speed pulse input terminals MI7 built-in with maximum speed up to 33kHz
• One high speed pulse output terminals DFM built-in with maximum speed up to 33kHz
• New PCB coating for circuit (IEC 60721-3-3 class 3C2) and thermal design suitable for harsh environment applications
• Built-in one slot do communication card installation : CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP

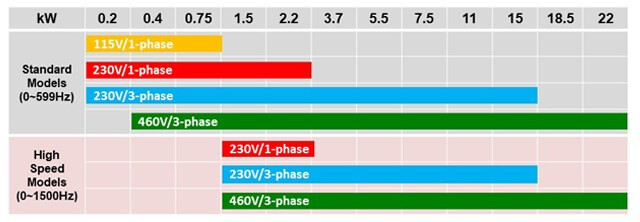

Power range
