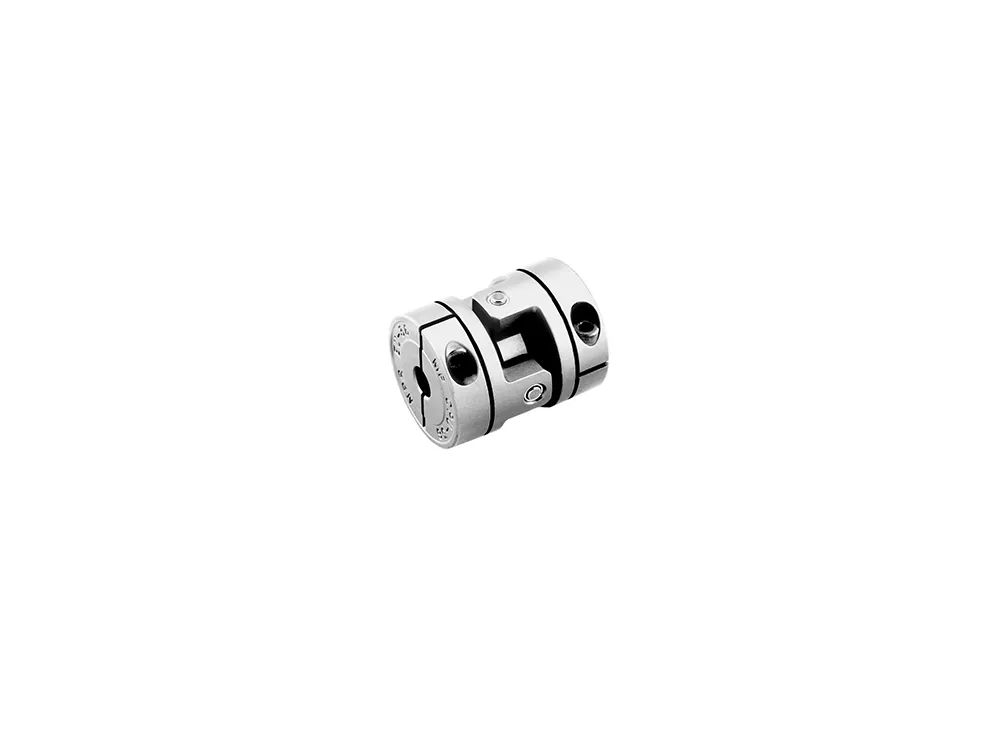

PARAFLEX CPU Models

These are pin-bushing type couplings whose body is made of aluminum alloy. Backlash is kept extremely low by combining high-precision pins with dry metal.They allow an angle of deflection of 4°. A universal system is used for hub coupling, which makes shaft reaction force due to mounting misalignment extremely small. There is also a damping effect from sliding at the friction surface between the pin and dry metal. A clamp system employing friction is used to mount the coupling on the shaft, making mounting easy.

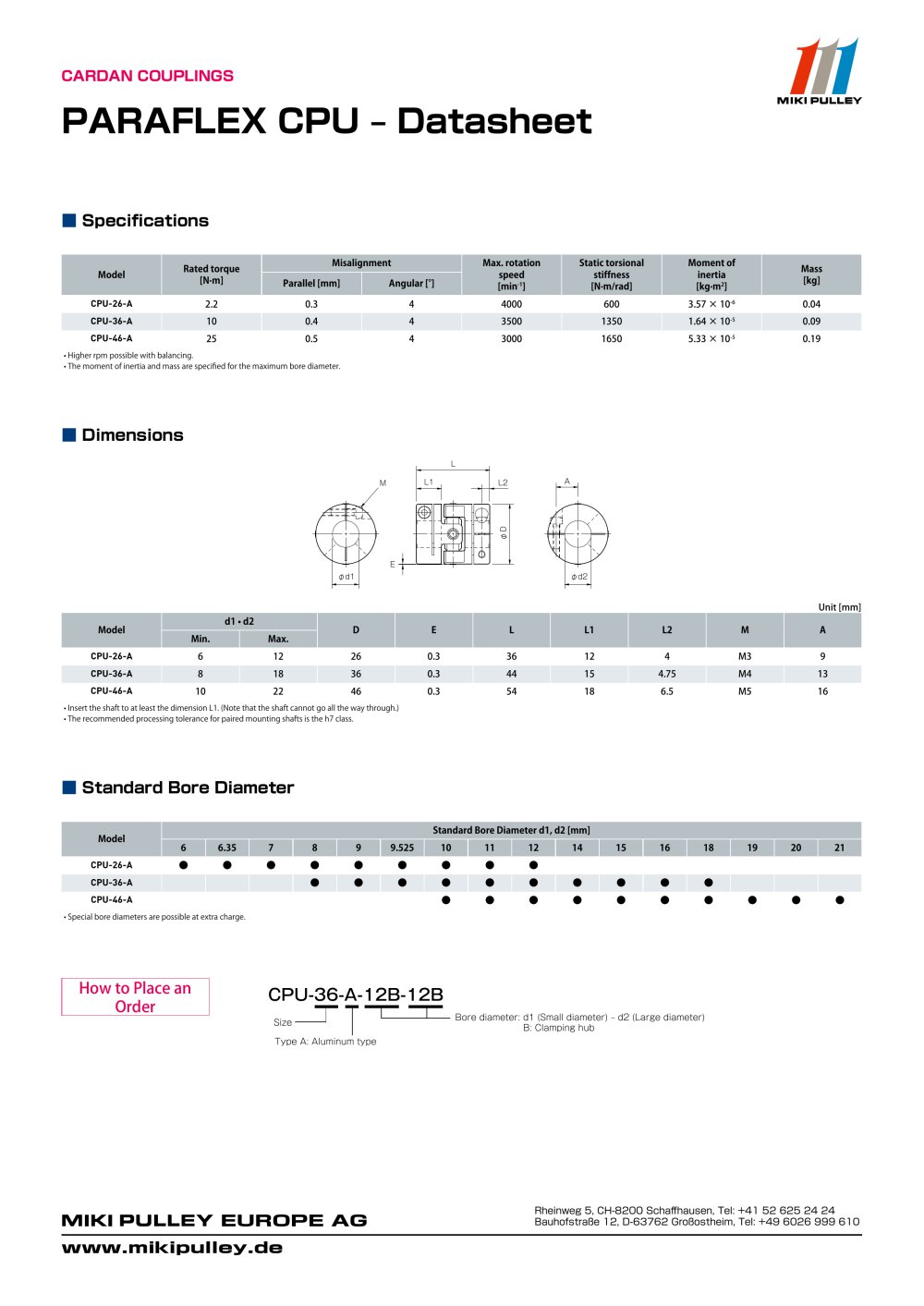

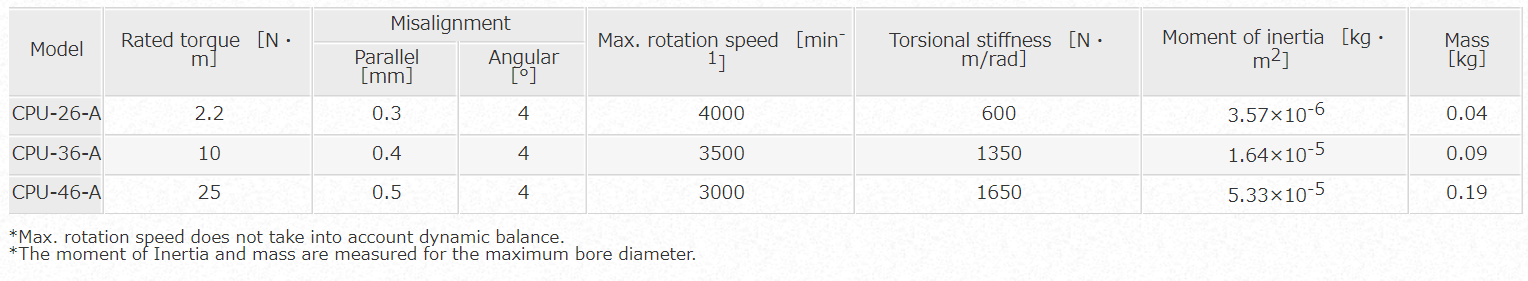

Specifications
