Delta

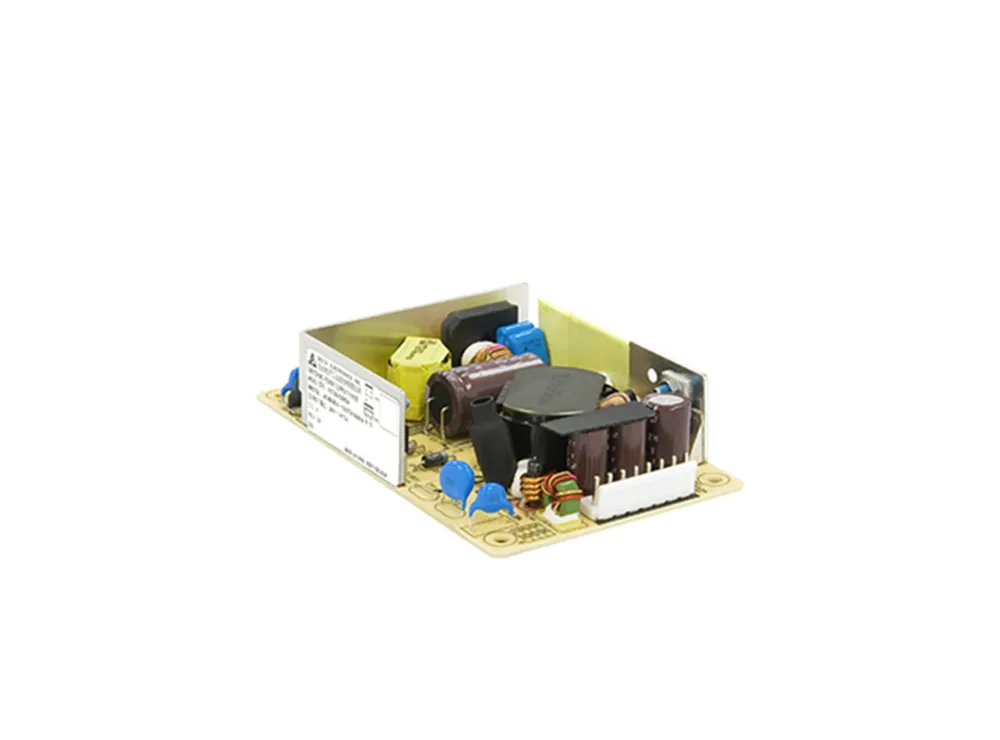

PJT Series

  • Universal AC input voltage
  • Standard industrial foot print of 2” x 4”
  • Low leakage current < 0.1mA
  • High MTBF > 700,000 hrs as per Telcordia SR-332
  • Multiple connector source options

Inquiry

PJT Serise Overview

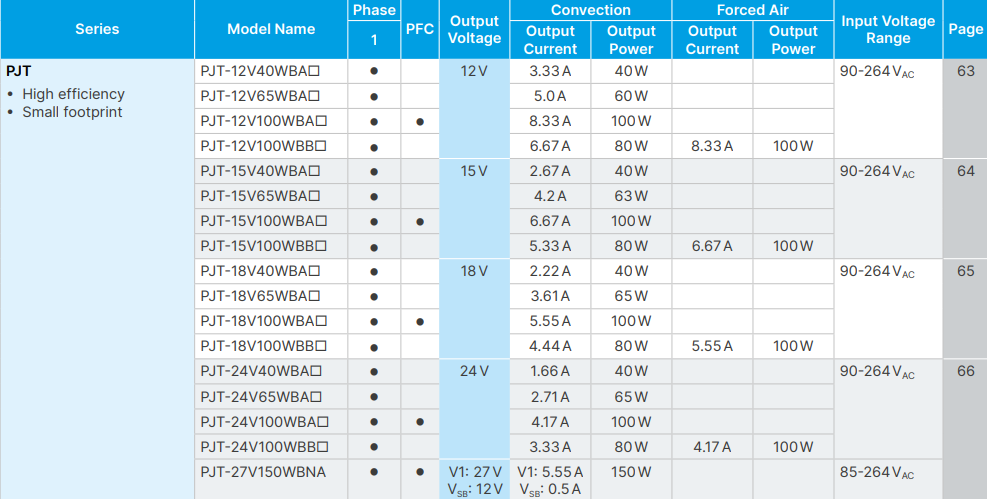

The PJT open frame power supply series offers choices of 12 V, 15 V, 18 V and 24 V nominal output voltages. The single output products are designed with small standard industrial footprints at 2” x 4”. The highly efficient convection cooling designs enable optimum thermal management for high power efficiency. The PJT series of products can operate from -10°C to +70°C across the entire input voltage range of 90 to 264 Vac and are certified for safety standard according to IEC/EN/UL 62368-1 and for EMI standard according to EN/BS EN 55032, Class B.



Datasheet

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta_Industrial power suppliers_catalog_EN

Delta_基板電源PJT_150W_Datasheet

Delta_基板電源PJT_100W_Datasheet

Delta_基板電源PJT_65W_Datasheet

Delta_基板電源PJT_40W_Datasheet
