Epson

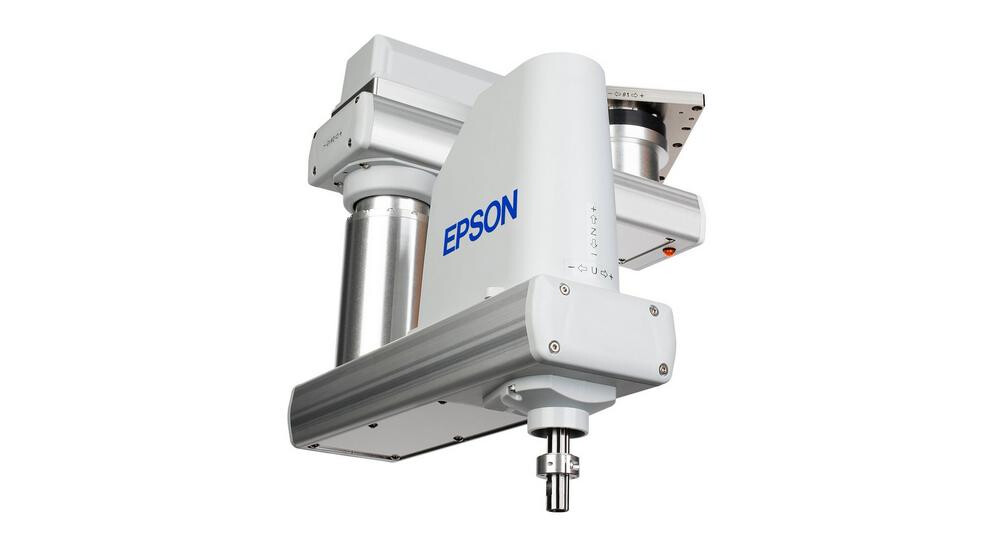

RS4 SCARA- 550mm

  • Versatile Spider robot Ideal for fast-paced pick-and-place tasks in compact cells
  • Cylindrical envelope Can make use of 100 percent of its work area
  • Short cycle times Cycle times are very low, even during extended use
  • Fully integrated Complete Epson solution including robot, controller and software
  • Versatile and flexible An ideal solution for applications from automotive to pharmaceutical

Inquiry

Capable, versatile Spider

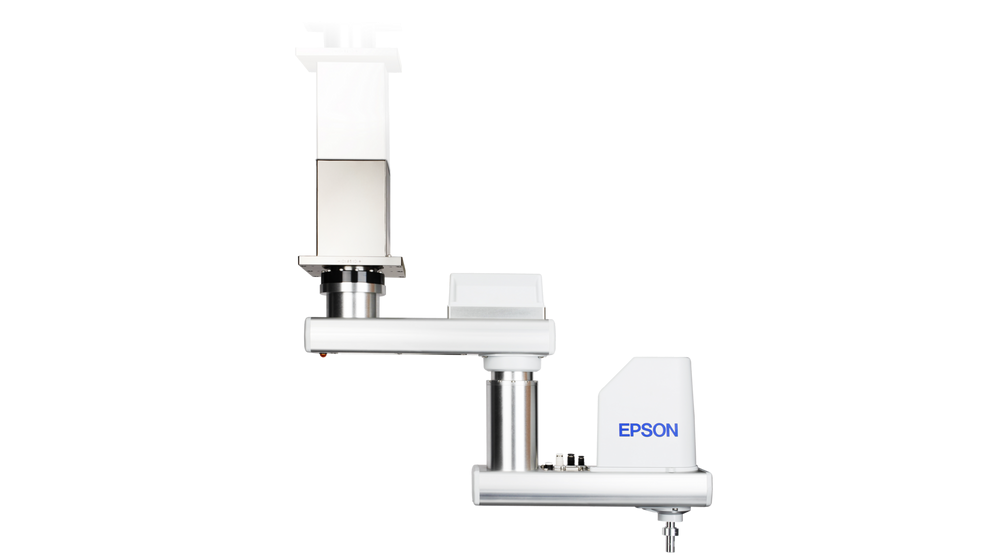

A powerful and flexible ceiling-mounted SCARA robot, with excellent reach and payload capabilities

The Spider RS4-Series is a new species of four-axis SCARA robot, designed like a human arm, to work on horizontal planes. It's ideal for fast pick-and-place applications and assembly processes.



Cylindrical envelope

The RS4 is the first and only SCARA robot with a perfectly cylindrical envelope, meaning it can reach 100 percent of its area of activity, maximising productivity and minimising space requirement. The RS4's 550mm arm is capable of performing tasks previously limited to much larger robots, and can handle payloads up to 4kg.



Compact high performance

RS4-Series Spider robots offer performance among the best in the industry, with very low cycle times, even during extended use. A unique high-rigidity arm design means very low residual vibration, with smooth start and stop motion, even at high speeds.



Outstanding versatility

Spider RS4-Series robots can be used in a huge range of industries, from assembling automotive components, mobile phones and computer parts, to creating medical equipment and packaging medications, not to mention lab automation and scientific analysis.



Tech Specs

Product weight-20 kg



What's in the box

2 Sets of mounting brackets for the robot controller (RC180), Back-up disc of the robot controller (RC180), Connector for standard I/O, Emergency stop connector, Epson RC+ program CD including simulation software, Epson robot and controller, Grease for shaft (50 g), Installation/safety manual, Mouse and keyboard (for RC620), Power and signal cable (3 m), Set of connectors for user wiring, TP/OP bypass plug (installed before shipment), USB programming cable (for RC180)



Certifications

Machinery Directive: EN 60204-1, EMC Directive: EN 55011, EMC Directive: EN 60950, RoHS Directive: 2002/92/EC, ANSI/RIA: R15.06-1999

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

EPSON_RS4_Datasheet
