AirTAC

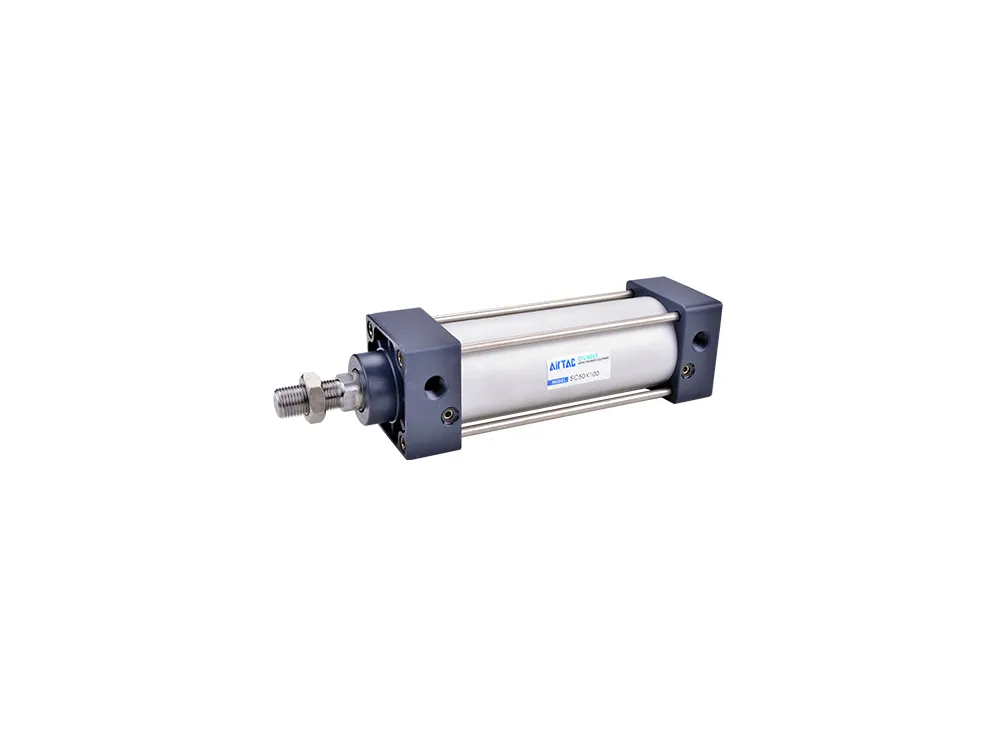

SC Series Cylinder

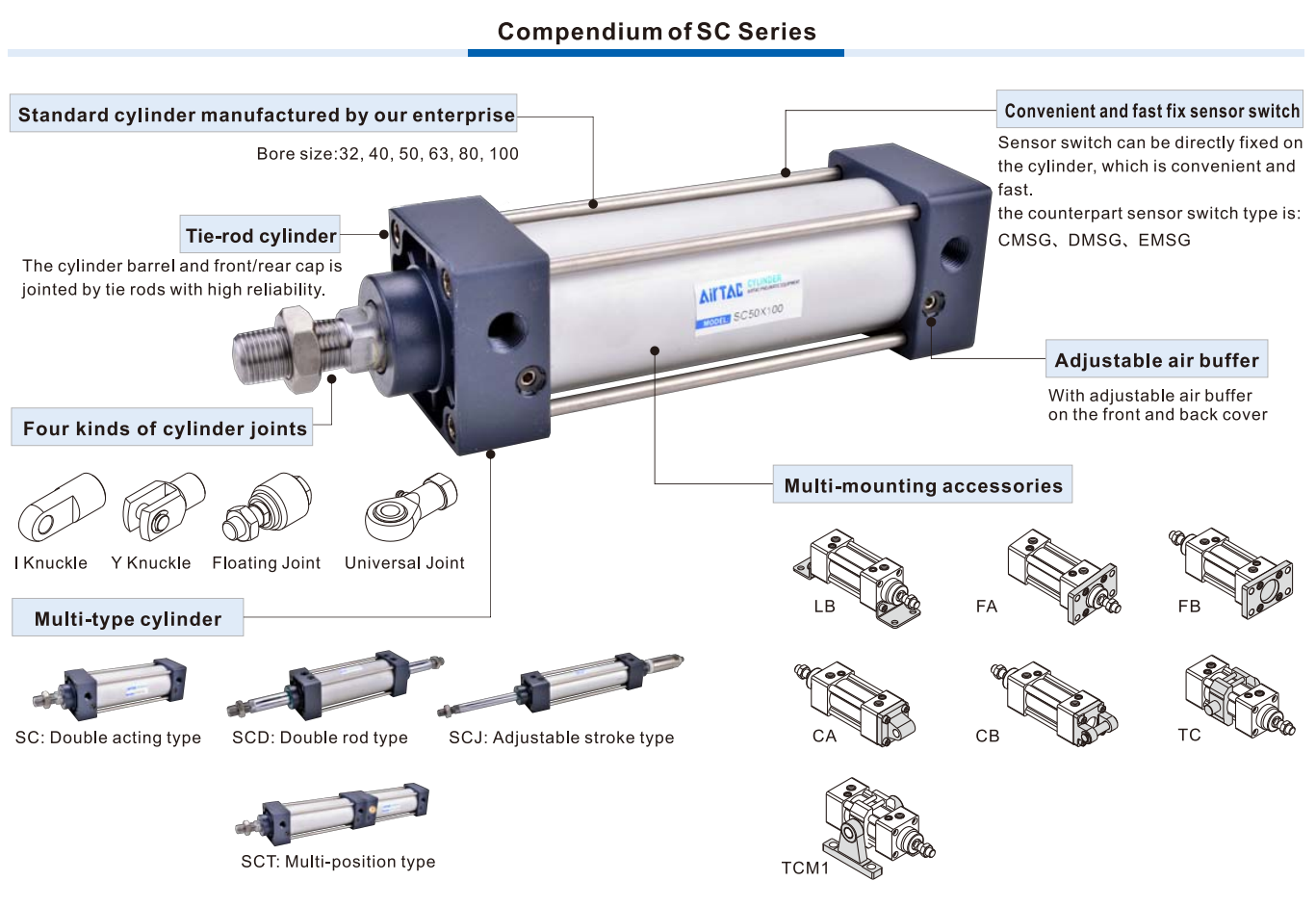

  • Tie-rod cylinder
  • Convenient and fast fix sensor switch
  • AdjustabIe air buffer
  • Four kinds of cylinder joints
  • Multi-type cylinder

Inquiry

Features

  1. Standard cylinder manufactured by our enterprise.
  2. The seal of piston adopts heterogeneous two way seal structure. It’s dimension is tight and it has the function of grease reservation.
  3. It is tie rod cylinder. The cylinder barrel and front/rear cap is jointed by tie rods with high reliability.
  4. Compared with ISO15552 standard cylinder SC series cylinder with the same bore size is shorter.
  5. The buffer adjustment of cylinder is smooth and steady.
  6. Cylinders and mounting accessories with several specifications are optional.
  7. The seal material with high temperature resistance is adopted to guarantee the normal operation of cylinder at 150℃.

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

AirTAC_SC_catalogue_EN

AirTAC_SC_catalogue_CN
