Liming

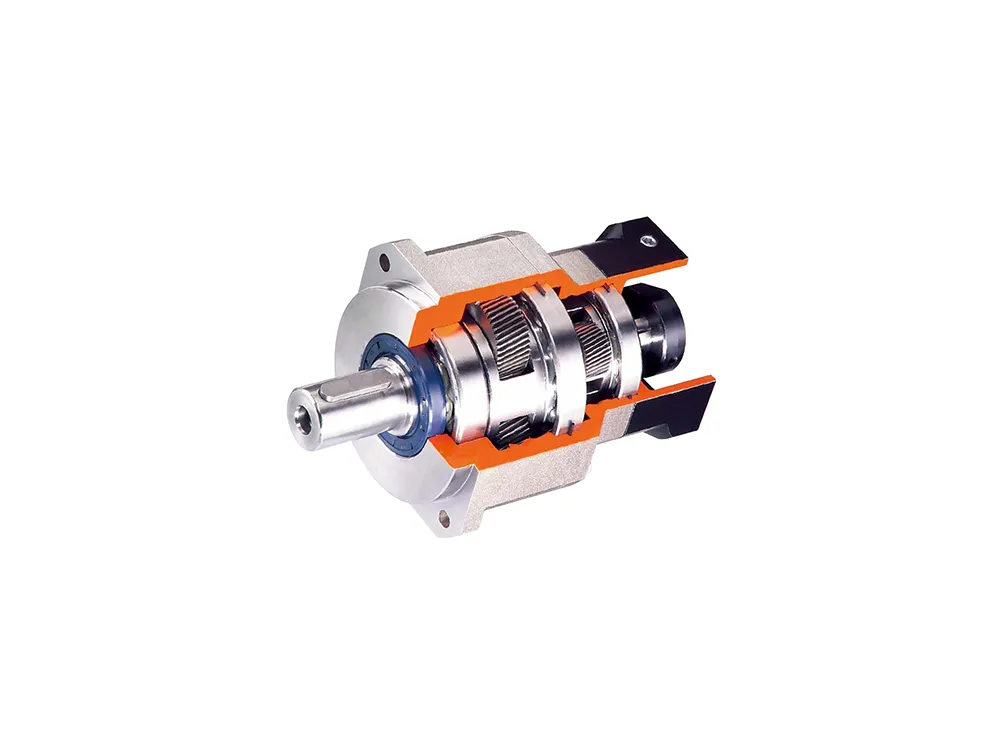

SERVOBOX series Precision Planetary Reducer Series

  • LOW NoiseUnder 65dB.
  • High Efficiency
  • High lnput Speed
  • High Torque
  • High Speed Reduction RatiO

Inquiry

SERVOBOX series

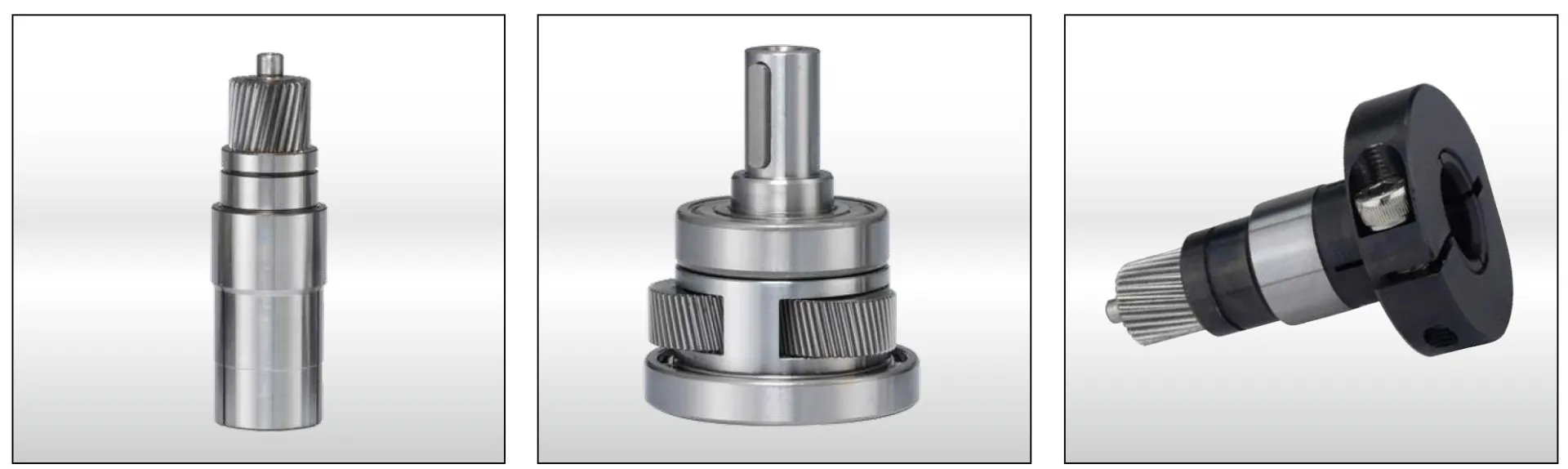

SERVOBOX series high precision planetary gear reducer employs helical gears. All gears are highvprecision machined by CNC gear hobbing machine, providing high accuracy gear engagement, smooth running and minimum noise.

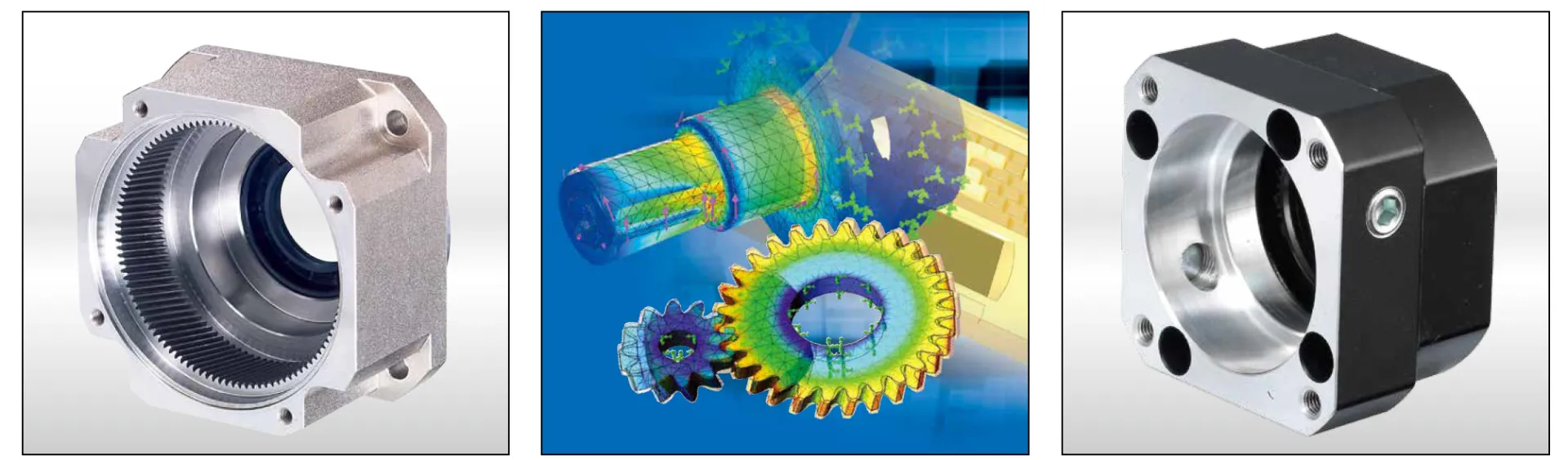

LIMING gear box is one-piece fabricated. When comparing with the competitive gear reducer, LIMING gear reducer features smaller construction (saves over 1/4 of size and weight), higher output torque and higher transmission efficiency

  • LOW NoiseUnder 65dB.
    Low BacklashBackIash for l-stage model is under 7 arcmin.AvaiIable tO select specification with 1 arcmin Ofbacklash. BackIash for 2-stage model is under 9arcmn.

  • High Efficiency
    Eficiency fo 「 l-stage model exceeds 97 %; 2-stagemodel exceeds 94 %.

  • High lnput Speed
    lnput speed allows for 5,000 RPM.

  • High Torque

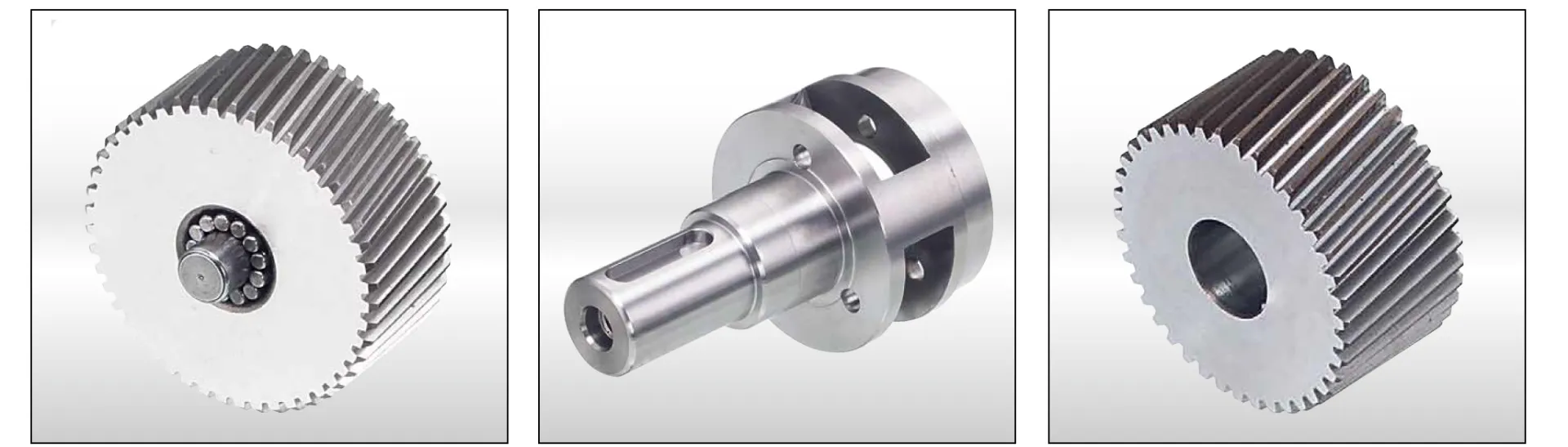

    Higher output torque is in comparision with spurgear planetary gear reducers.High StabiIityEmploys high tensile strength alloy steel. Gearhardening is made fO 「 the entire gear instead Ofonly surface hardening, which extends gear servicelife and maintain high accuracy after a long periodOf operation.

  • High Speed Reduction RatiO
    The gear reducer is a modular deign. The planetary gear box can be connected. Speedreduction ratio can reach over than 1 / 10000.

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

SERVOBOX_Catalogue
