Magnescale

SET-HD100 Calibration_System

  • High angular accuracy [±0.1 arcsec] resulting from a Magnescale algorithm with 0.0012 arcsec resolution
  • High reproducibility: Non contact design enables accurate measurements that are not affected by variations in installation tolerances
  • Easy installation: Only 15 minutes from installation to measurement
  • Portable measurement kit: Compact and easy to carry

Inquiry

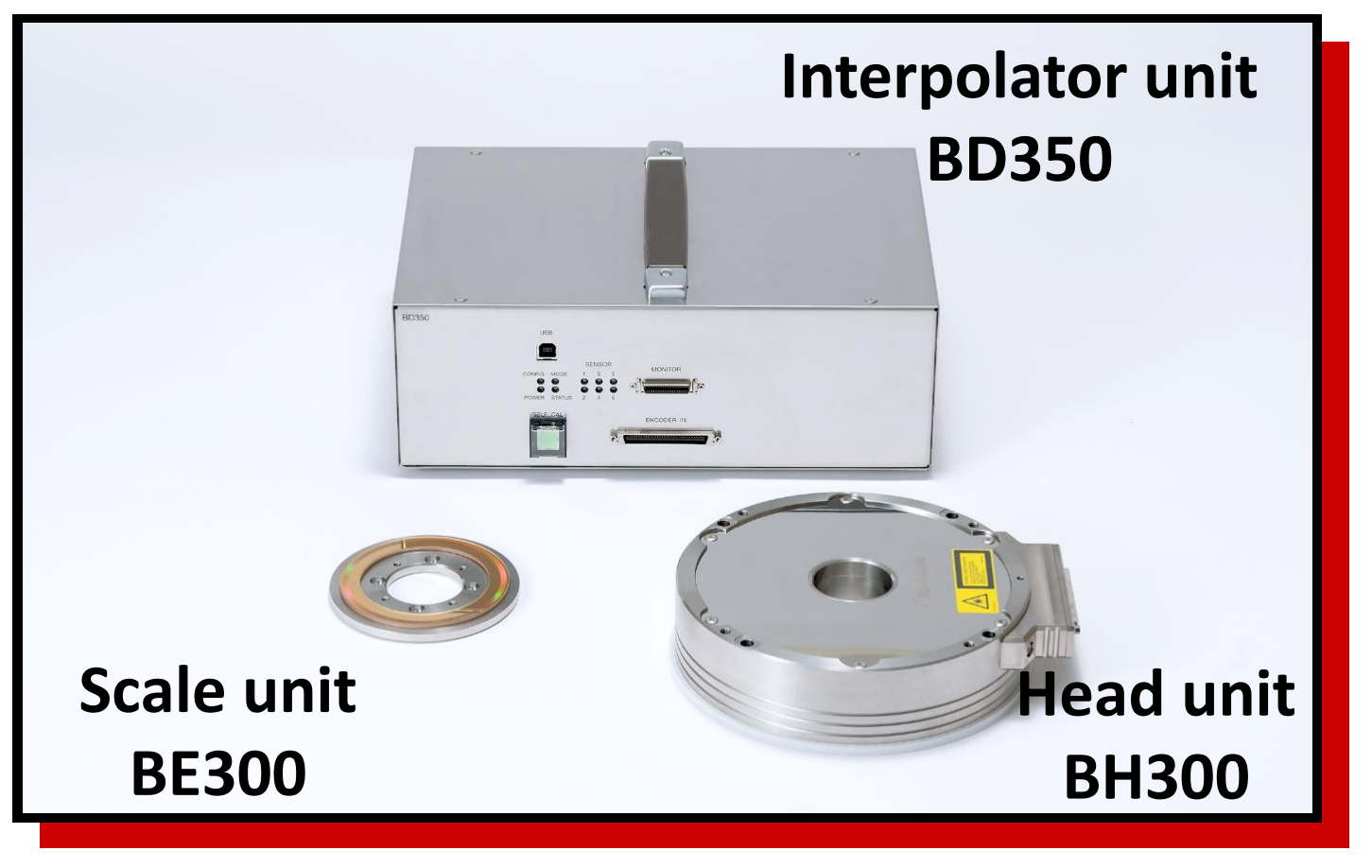

SET-HD100

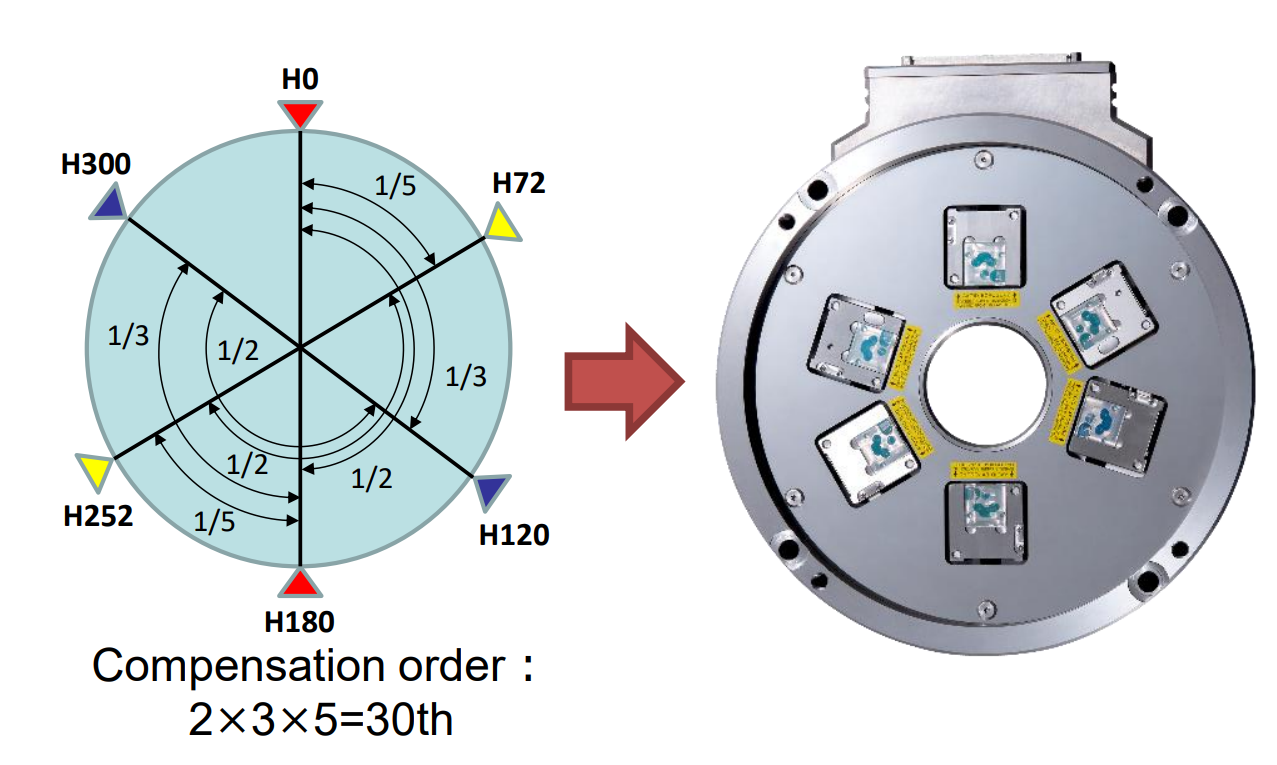

Self-compensating rotary encoder system that can be used as a calibration reference for a rotational axis while compensating for any errors in the installation tolerance.



The automatic calibration rotary encoder 'Set HD100' compensates for errors on the machine side, enhancing the angular precision of the rotating axis. This achieves an improvement in both quality and productivity, ensuring that each rotating axis attains a high level of mechanical accuracy. In addition to machine tools, it can be applied to precision inspections before product shipment or in products and applications requiring high-precision rotation axis indexing. It is also suitable for research on how to enhance precision



Magnescale SET-HD100

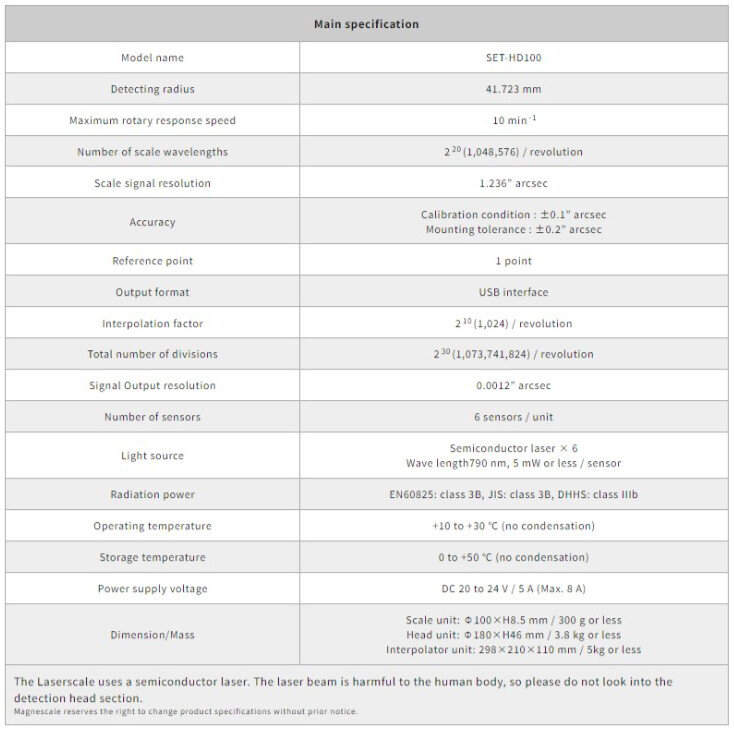

Specifications

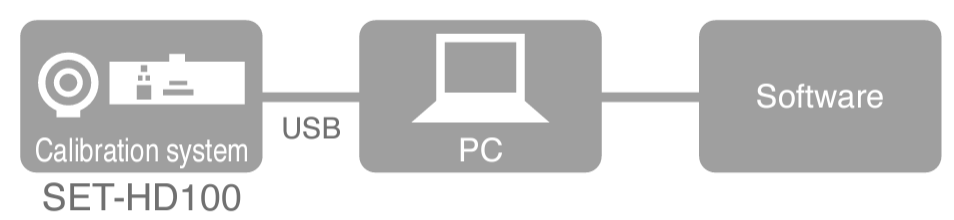

System Configuration Diagram

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Magnescale_SET-HD100_Brochure_EN
