SFH Models

The maximum size with disc spring couplings for high-output applications is an outer flange diameter of 262 mm and rated torque of 8000 N・m. Single-element types with high torsional stiffness and flexible double-element floating-shaft types that connect double elements with an intermediate floating shaft are available. The floating shaft is particularly able to handle the setting of lengths according to customer requirements.

Choose your own mounting system

Pilot-bore products are a standard part of the line-up, so they can handle shaft coupling by means of a key, shaft coupling by shrink-fitting, and more. SFH S/G-K-K types that use frictional coupling are also available, giving you freedom in choosing your mounting method.

Can be assembled from part components

Since we deliver products as components, you can safely use them even in designs that cannot be mounted once assembled.

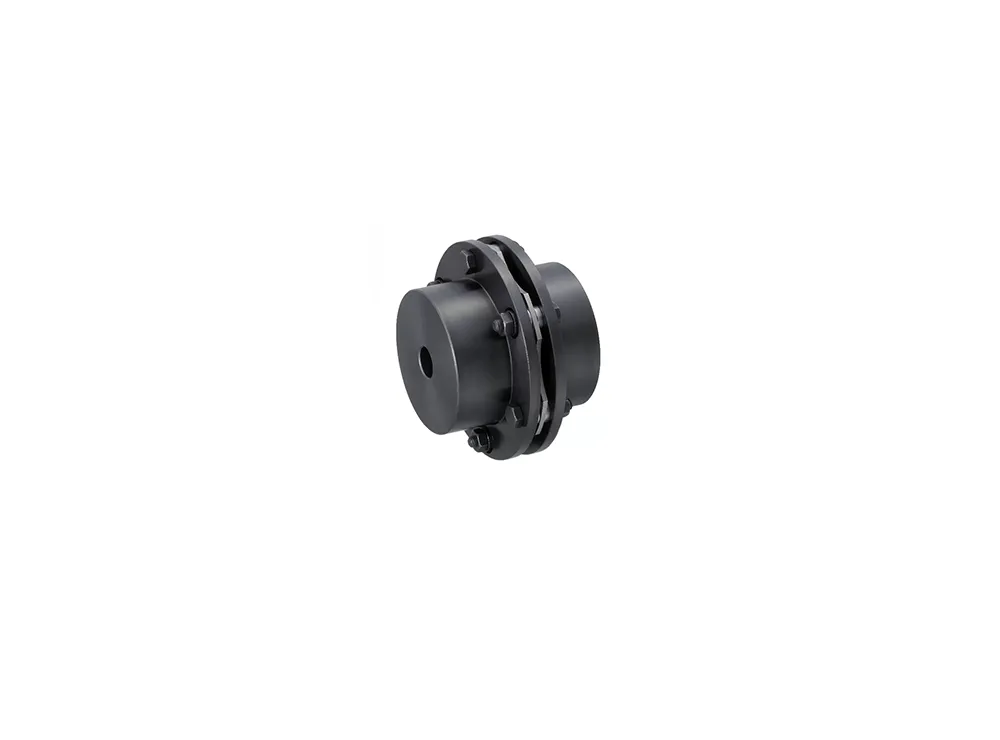

SFH-□S Types

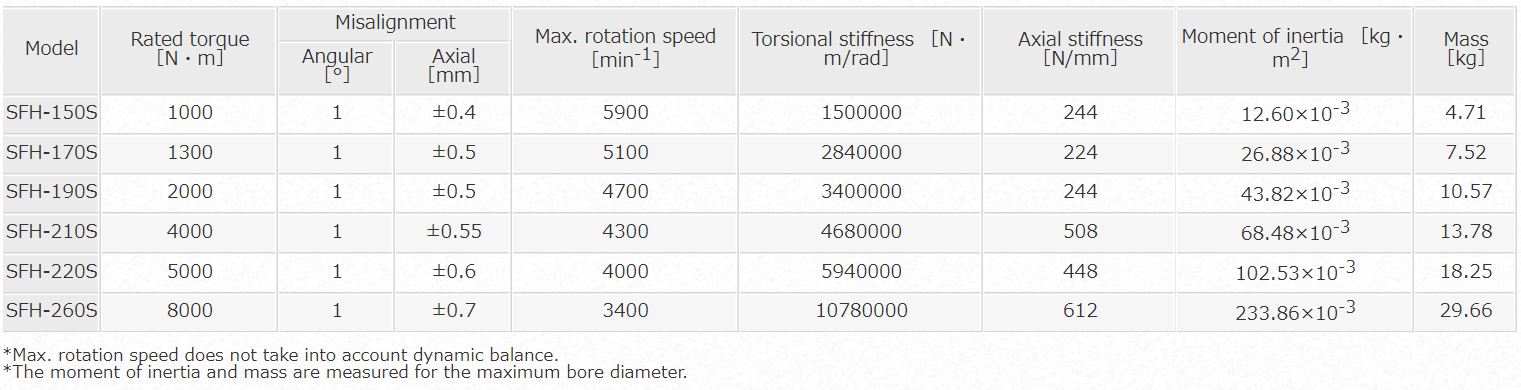

[Specifications]
