TRANSPAK

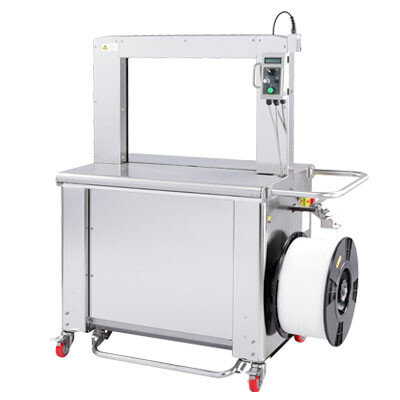

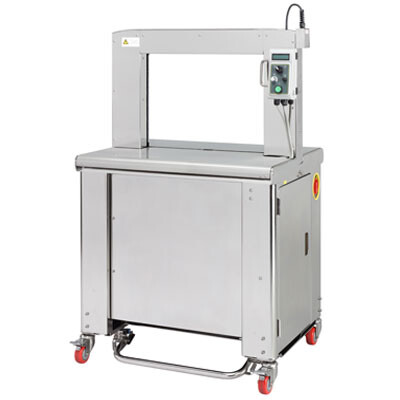

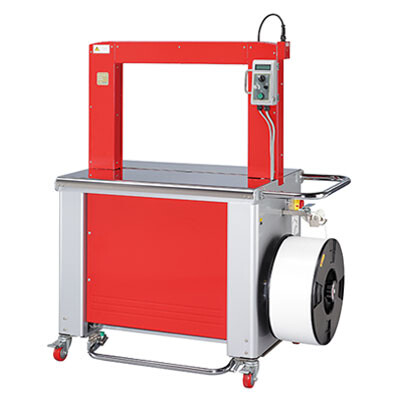

TP-702 Mercury Automatic Strapping Machines

  • Robust & compact mechanical strapping head
  • High speed up to 65 straps per minute
  • Free access to strap guides (patents registered)
  • Waist-high auto strap feeding

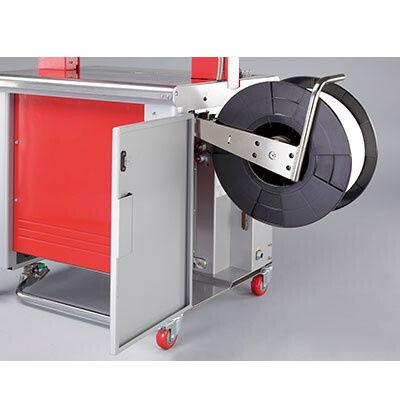

  • Waist-high quick coil change (patents registered)

Inquiry

Mercury TP-702 is an innovative world-class high speed automatic strapping machine. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. Equipping with all industry’s standard features and creative user friendly designs, Mercury TP-702 offers the most optimal performance, highest speed, easiest maintenance, and the most cost effective solution in its class.

Features

  • Robust & compact mechanical strapping head
  • High speed up to 65 straps per minute
  • Free access to strap guides (patents registered)
  • Waist-high auto strap feeding
  • Waist-high quick coil change (patents registered)
  • Turnable operating control panel
  • Auto strap ejector
  • Dispenser release switch
  • Sensor controlled heater
  • Low voltage
  • Strap end ejector

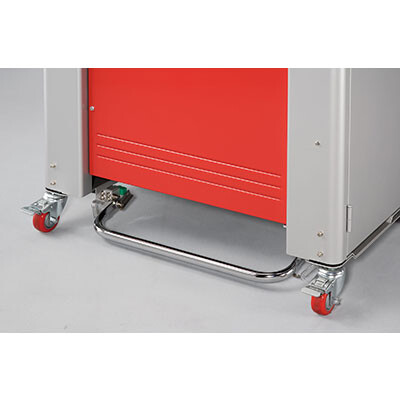

  • Front foot bar switch
  • Adjustable table height between 820 mm and 920 mm



Options

  • Photo-eye switch
  • Rear foot bar switch
  • Foot pedal switch
  • Lower adjustable table height (770 mm - 820 mm)





Green Tech

Technical Data



TP-702-59

TP-702-12

CapacityUp to 65 cycles/minuteUp to 60 cycles/minute
Strap Width5 mm, 6 mm, or 9 mm

12 mm

Tension Range

1 to 32 kg

* Higher tension is on request

1 to 45 kg
* Higher tension is on request
Weight158 kg

167 kg

Electrical Requirements

110V, 220V, 230V, 240V, 50/60Hz 1PH

110V, 220V, 230V, 240V, 50/60Hz 1PH

Download

Catalogue
Datasheet
Manual
Brochure
Report
References
