TRANSPAK

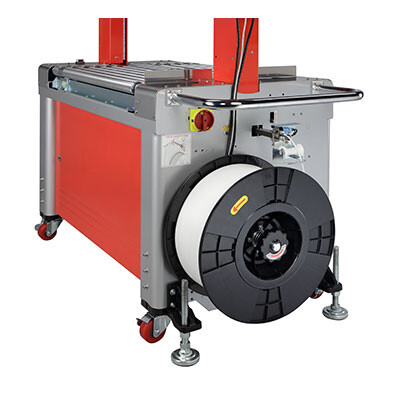

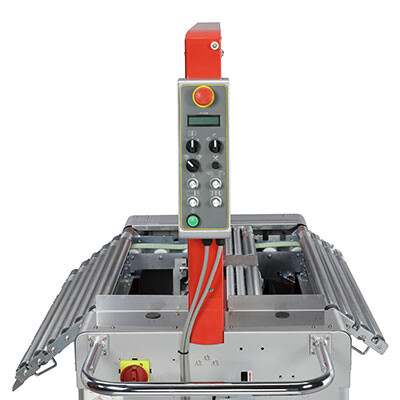

TP-702A Mercury Transit Fully Automatic Strapping Machines

  • Robust & compact mechanical strapping head

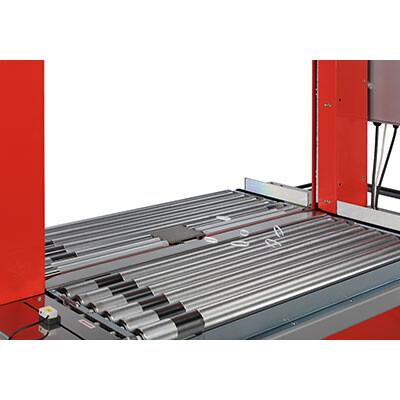

  • Roller-driven table for heavy load packages
  • Waist-high auto strap feeding
  • Free access to strap guides (patents registered)
  • Electronic tension control

Inquiry

Mercury Transit TP-702A is a fully automatic strapping machine with roller-driven table for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702A is the fastest and most reliable strapping machine for general applications on the market today.

Features

  • Robust & compact mechanical strapping head
  • Roller-driven table for heavy load packages
  • Waist-high auto strap feeding
  • Free access to strap guides (patents registered)
  • Electronic tension control
  • Auto strap ejector
  • Strap end ejector
  • Hinged top plates
  • Multiple strap function
  • Variable conveyor speed between 15 and 60 meters/minute
  • Up and down stream interlock with complete plug connection
  • Easy bundle flow direction change
  • Good for heavy packages
  • Adjustable table height between 800 mm and 900 mm



Options

  • Light tower with low strap sensor
  • Energy saving transit with auto sleep mode
  • Strapping in the center of the bundle & strapping controlled with 2 photo eyes
  • Lower adjustable table height (750 mm – 900 mm)
  • Dual channel E-Stop





Green Tech

Technical Data

Capacity

Up to 36 packages/minute
(Cycle speed up to 65 cycles/minute)

Strap Width

5 mm, 6 mm, 9 mm or 12 mm

Tension Range

1-32 kg (for 5 mm, 6 mm, 9 mm)
1-45 kg (for 12 mm)

Maximum Package Weight

80 kg

Weight

287 kg

Electrical Requirements

110V, 220V, 230V, 240V 50/60Hz 1PH
220V, 380V, 400V, 415V 50/60Hz 3PH

Download

Catalogue
Datasheet
Manual
Brochure
Report
References
