Mercury Transit TP-702AH is a fully automatic strapping machine with roller-driven table and Siemens PLC & HMI for production and packaging lines. It is suitable for 5 mm, 6 mm, 9 mm, or 12 mm PP strapping. TP-702AH is the fastest and most reliable strapping machine for general applications on the market today.

Features

• Robust & compact mechanical strapping head

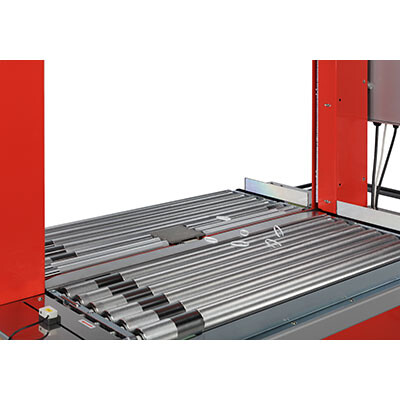

• Roller-driven table for heavy load packages

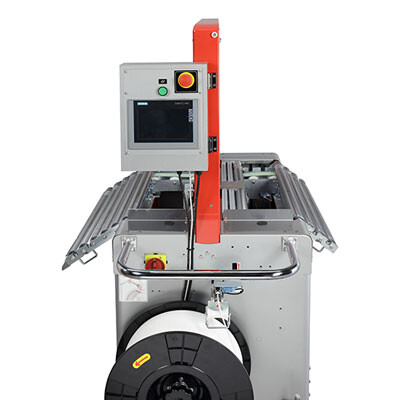

• Equipped with Siemens PLC and HMI as standard
• Waist-high auto strap feeding
• Free access to strap guides (patents registered)
• Electronic tension control
• Auto strap ejector
• Hinged top plates
• Diverse strapping patterns
• Variable conveyor speed between 15 and 60 meters/minute
• Up and down stream interlock with complete plug connection
• Easy bundle flow direction change
• Good for heavy packages
• Adjustable table height between 800 mm and 900 mm


Options

• Dual channel E-Stop
• Light tower with low strap sensor
• Energy saving transit with auto sleep mode
• Strapping in the center of the bundle & strapping controlled with 2 photo eyes
• Lower adjustable table height (750 mm – 900 mm)
• Automatic tension control by package height detection (3 stage tension)
• Automatically determining the number of straps by package length
• Signal exchange via 16 pin connector

Green Tech

Technical Data
