TP-702NAD Cross Strapping System with Angle Diverter

  • Robust & compact mechanical strapping head
  • Automatic tension control for various bundle dimensions (patents registered)
  • Dual pneumatic press
  • Up and down stream interlock with complete plug connection
  • Fully automatic operation with variable conveyor speed
  • Siemens PLC and touch panel
  • Free access to strap guides (patents registered)
  • Easy access to strapping head (patents registered)
  • Strap end ejector
  • Auto strap ejector
  • Adjustable table height between 800 mm and 900 mm

Inquiry

TP-702NAD is a fully automatic strapping system with angle diverter for cross strapping requirement - meeting different plant layout requirement.

Features

  • Robust & compact mechanical strapping head
  • Automatic tension control for various bundle dimensions (patents registered)
  • Dual pneumatic press
  • Up and down stream interlock with complete plug connection
  • Fully automatic operation with variable conveyor speed
  • Siemens PLC and touch panel
  • Free access to strap guides (patents registered)
  • Easy access to strapping head (patents registered)
  • Strap end ejector
  • Auto strap ejector
  • Adjustable table height between 800 mm and 900 mm



Options

  • Energy saving transit with auto sleep mode
  • Light tower with low strap sensor (triple lamp)
  • Additional soft press for convex bundle

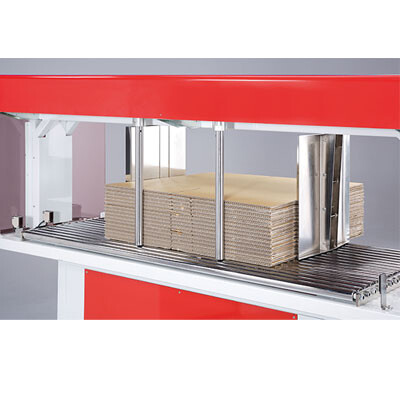

  • Automatic side squaring
  • Low volume bundle bypass

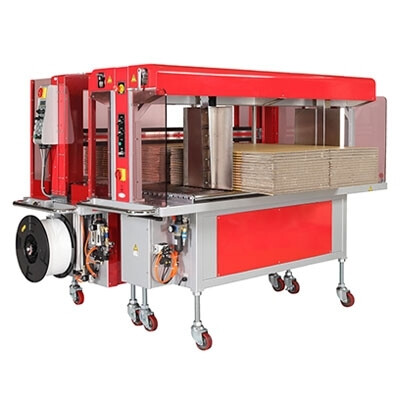

  • Movable casters (picture shown with this option)
  • Lever switch for bundle with wrapping
  • Safety guards (picture shown with this option)

Technical Data

Capacity

Up to 25 bundles/minute

Bundle Size     Width                Length               Height
max 500 mm    max 500 mm    max 390 mm
min  210 mm    min  210 mm    min    10 mm
Bundle Weight max 25 kg
Strap Width 5 mm, 6 mm, or 9 mm
Tension Range

1 - 32 kg

Electrical Requirements 220V, 380V, 400V, 415V 50/60Hz 3PH
Pneumatic Source6 bar
Air Consumption5.5 liter/cycle
Weight 1,045 Kg
