TRANSPAK

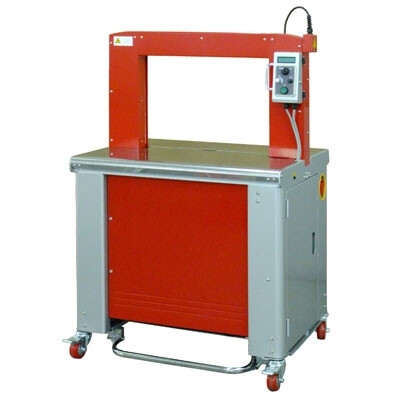

TP-702RS Mercury for Small or Round Package

  • Robust & compact mechanical strapping head
  • Free access to strap guides (patents registered)

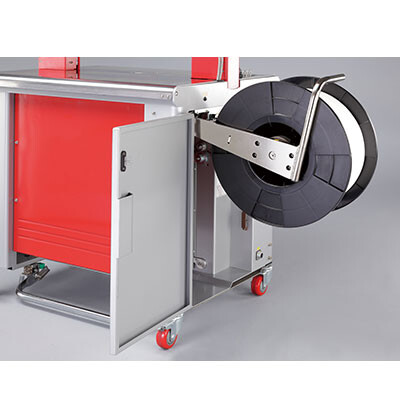

  • Waist-high quick coil change (patents registered)
  • Waist-high auto strap feeding
  • Turnable operating control panel
  • Auto strap ejector
  • Dispenser release switch
  • Sensor controlled heater
  • Low voltage
  • Strap end ejector
  • Front foot bar switch
  • Adjustable table height between 820 mm and 920 mm

Inquiry

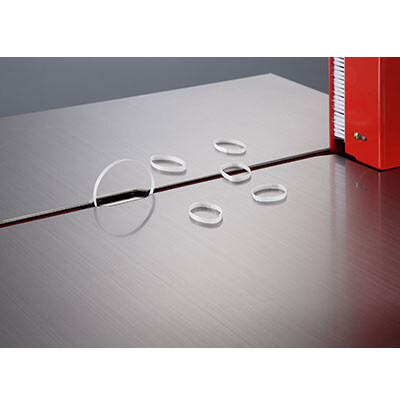

Mercury TP-702RS is built on Mercury TP-702 with special designed parts. It is suitable for small or round packages such as plastic pipes, steel rod, hardwood, etc. It can strap packages as small as 40 mm (W) x 10 mm (H) or round packages as small as Ø 32 mm x 2 pieces. TP-702RS provides reliable high speed performance for small or round package applications.

Features

  • Robust & compact mechanical strapping head
  • Free access to strap guides (patents registered)
  • Waist-high quick coil change (patents registered)
  • Waist-high auto strap feeding
  • Turnable operating control panel
  • Auto strap ejector
  • Dispenser release switch
  • Sensor controlled heater
  • Low voltage
  • Strap end ejector
  • Front foot bar switch
  • Adjustable table height between 820 mm and 920 mm



Options

  • Photo-eye switch
  • Rear foot bar switch
  • Foot pedal switch
  • Lower adjustable table height (770 mm - 820 mm)





Green Tech

Technical Data

CapacityUp to 65 cycles/minute
Strap Width5 mm, 6 mm, or 9 mm
Arch Size550 mm (W) x 400 mm (H)
Tension Range

1-32 公斤

Weight158 kg
Electrical Requirements110V, 220V, 230V, 240V 50/60Hz 1PH
