TRANSPAK TP-702Y Mercury

TRANSPAK

TP-702Y Mercury

Robust and compact strapping head
Control panel with LCD display
Free access to strap guides (patents registered)

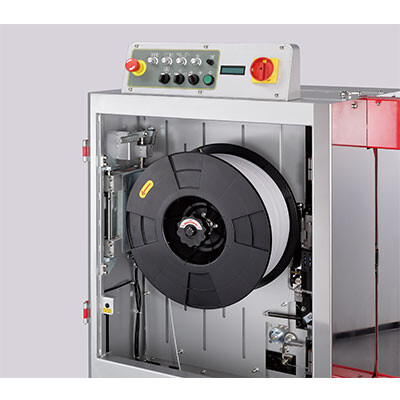

Inner strap dispenser design
Downward tension force
Auto strap ejector
Strap end ejector
Sensor controlled heater
Adjustable table height between 445 mm and 645 mm

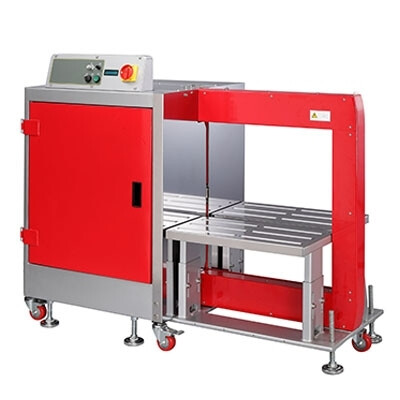

Mercury TP-702Y is a high-speed side-seal strapping machine built with Transpak Mercury strapping head and brushless DC motor technology. It can be put into a wide range of applications, such as household appliances, furniture, tile industries, logistics, etc. Inheriting all the advantages from Mercury TP-702, it is ideal for high capacity and efficiency automated lines.

Features

Robust and compact strapping head
Control panel with LCD display
Free access to strap guides (patents registered)
Inner strap dispenser design
Downward tension force
Auto strap ejector
Strap end ejector
Sensor controlled heater

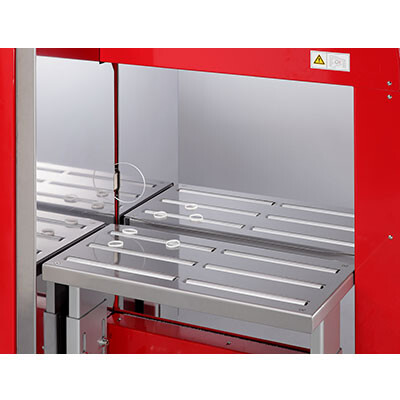

Adjustable table height between 445 mm and 645 mm

Options

Light tower with low strap sensor
Small package
End of cycle and strapping error signals
Dual Press Bar
Without adjustable roller table (TP-702Y-XT)

Green Tech

Technical Data

Capacity	Up to 60 cycles/minute
Strap Width	5mm, 6 mm, 9 mm, or 12 mm
Tension Range	1 - 32 kg (for 5 mm, 6 mm, and 9 mm) 1 - 45 kg (for 12 mm) *Higher tension is on request
Weight	294 kg
Electrical Requirements	110V, 220V, 230V, 240V 50/60Hz 1PH 220V, 380V, 400V, 415V 50/60Hz 3PH
