TRANSPAK

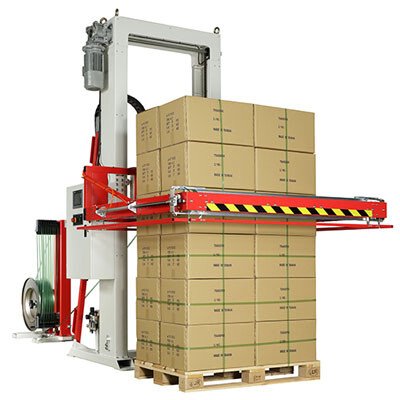

TP-733H Castor III Pallet Strapping Machine

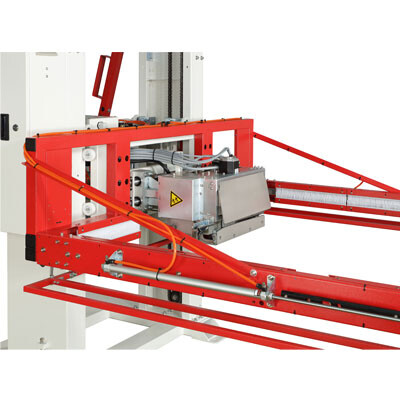

  • ARES TP-733-SH strapping head
  • Index strapping head

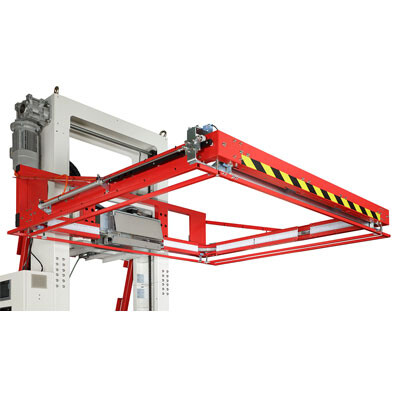

  • Strap guide arm

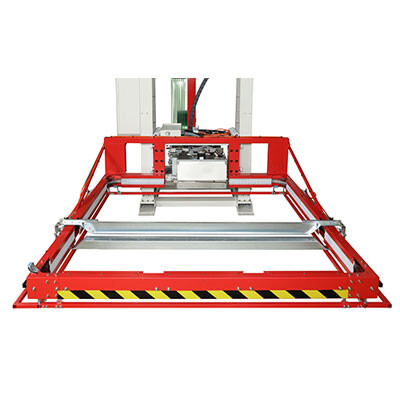

  • Safety rack
  • Friction weld sealing technology

Inquiry

The enhanced TP-733H provides accurate strapping output on all natural-sized loads with consistent performance. It maximizes the productivity and minimizes the production cost for users. Designed for simple and quick connection to the master control system, TP-733H can easily fit in various end-of-line packaging sectors. It is your best choice for fully automatic operation in various applications, including palletized products, home appliance, bricks & blocks, etc.

Features

  • ARES TP-733-SH strapping head
  • Index strapping head
  • Strap guide arm
  • Safety rack
  • Friction weld sealing technology
  • Free access to strap guides
  • Swivel dispenser set
  • Adjustable sealing and cooling time
  • Strap end ejector
  • Preprogram setting
  • Easy to replace strapping head



Options

  • Floating Head
  • Free standing operation desk (3M)
  • Light tower with low strap sensor
  • Dual channel E-Stop
  • Lower tension range (200 - 1200 N)
  • HMI and PLC mounted on the opposite side
  • Strap program selecting by remote control (4-bit binary input)
  • No safety rack
  • Uplifted support
  • Maximum package height up to 2700 mm

Technical Data

Capacity

Up to 60 pallets/hour (3 parallel straps)

Strap Type

PP or PET strapping

Strap Width

12 mm, 15.5 mm, or 19 mm

Tension Range

1100 - 3200 N (standard)
200 - 1200 N (optional)

Minimum Strapping Height

(a) With conveyor: 160 mm above conveyor surface
(b) Without conveyor: 240 mm above floor

Maximum Package Height

Standard: 2,200 mm
Option: 2,700 mm

Strap Core Size

406 mm/200 mm/230 mm/280 mm

Pneumatic Source & Air Consumption

6 bar
7.1 liter/cycle

Electrical Requirements

220V, 380V, 400V, 415V 50/60Hz 3PH
