TRANSPAK

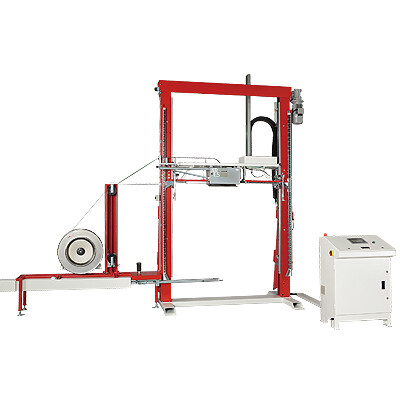

TP-733VTS Zelos Pallet Strapping Machine

  • ARES TP-733-SH strapping head
  • Siemens PLC and HMI
  • Floating head
  • Strap can be fed at any height
  • Friction weld sealing technology
  • Free access to strap guides
  • All electric driven design
  • Strap end ejector
  • Adjustable speed for strapping head movement
  • Excellent package top detection
  • Dual channel e-stop
  • Preprogram setting for multiple strapping tasks

Inquiry

TP-733VTS pallet strapping machine is ideal for general palletized products. It is also suitable for those with low package height. The top sealing design provides the highest strapping efficiency onto the packages. The easy operating SIEMENS touch panel provides simple interface for operator to control and monitor the task. With quick connection to master control system, TP-733VTS can perfectly fit every end-of-line packaging operation.

Features

  • ARES TP-733-SH strapping head

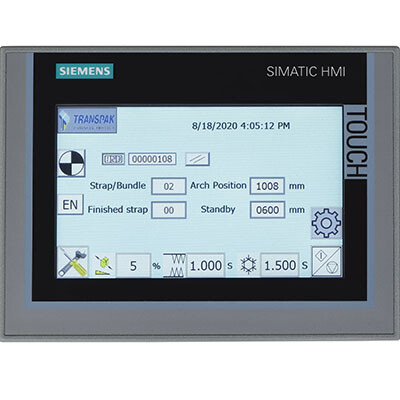

  • Siemens PLC and HMI
  • Floating head
  • Strap can be fed at any height
  • Friction weld sealing technology
  • Free access to strap guides
  • All electric driven design
  • Strap end ejector
  • Adjustable speed for strapping head movement
  • Excellent package top detection
  • Dual channel e-stop
  • Preprogram setting for multiple strapping tasks


Options

  • Lower tension range (200-1200 N)
  • Light tower with low strap sensor
  • Air conditioner for electric control cabinet
  • Adding underfeed channel (patent registered)
  • Automatic self-adjusting strapping head height for next package
  • End of strap signal
  • Uplifted support
  • Underfeed channel only (remove standard feature "movable lance")

Technical Data

CapacityUp to 63 pallets/hour
(2 parallel straps)
Strap Type

PP and PET strapping

Strap Width

9 mm, 12 mm, 15.5 mm, or 19 mm

Tension Range

1,100 - 3,200 N (standard)
   200 - 1,200 N (option)

Minimum Package Size350 mm (W) x 300 mm (H)
Strap Core Size406 mm
Electrical Requirements220V, 380V, 400V, 415V  50/60Hz 3PH
