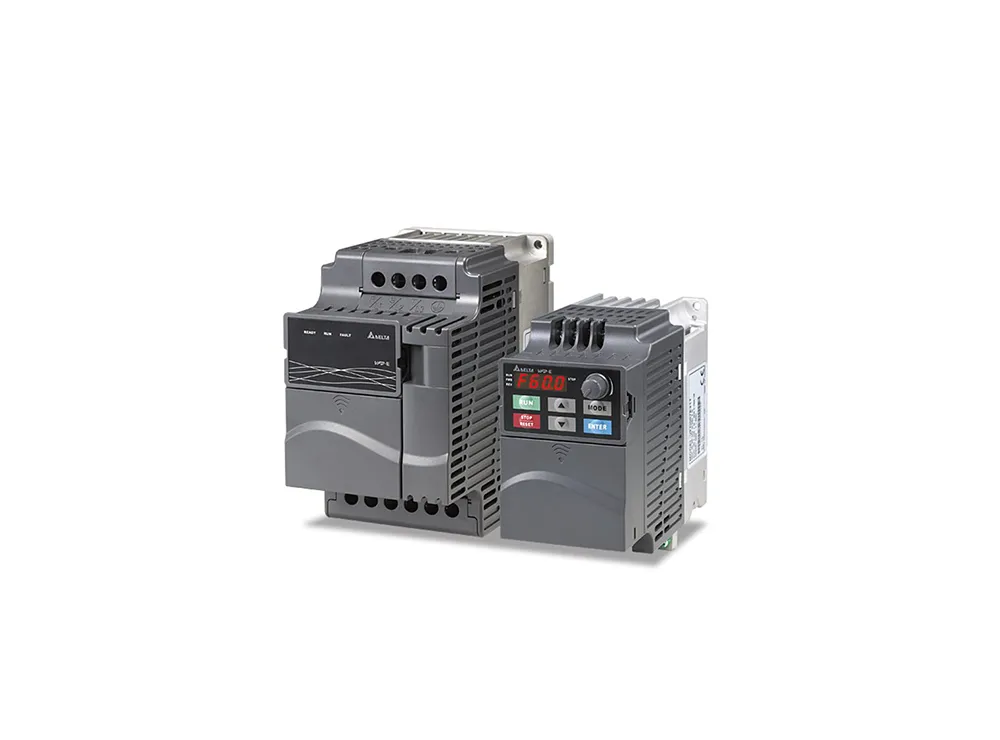

VFD-EL series

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built In keypad.

Applications

Small size pump & fan, blowing machine, conveyer belt, simple DIY processing equipment

Specifications

• Output frequency: 0.1~600Hz
• 3 points adjustable V/f curve
• Built-in PID feedback control
• RFI-switch for IT mains
• Built-in EMI filter (for models 230V 1-phase and 460V 3-phase)
• Use RS-485 communication interface (RJ-45) with Modbus protocol
• Optional communication modules for multiple communication protocols, such as Profibus, DeviceNet, LonWorks and CANopen
• Complete protection function

Feature

Standard MODBUS Protocol

• Standard MODBUS ProtocoI via RS -485

BuiIt-in EMI Filter (230V1-phaseand460V3-phase)

• The built-in EMI filter reduces electromagnetic interferences and complies with EN61800B standard.

Compact Design

• Space saving and easy DIN rail mounting with optional DIN rail adapter(Built in Frame B)

Optional Fieldbus ModuIes

• Provide connection tO a variety ofnetworks, including PROFIBUS, DeviceNet,LonWorks and CANopen.

RFl-Switch for lT Mains

• Removable capacitortouse withITmains supplies.
