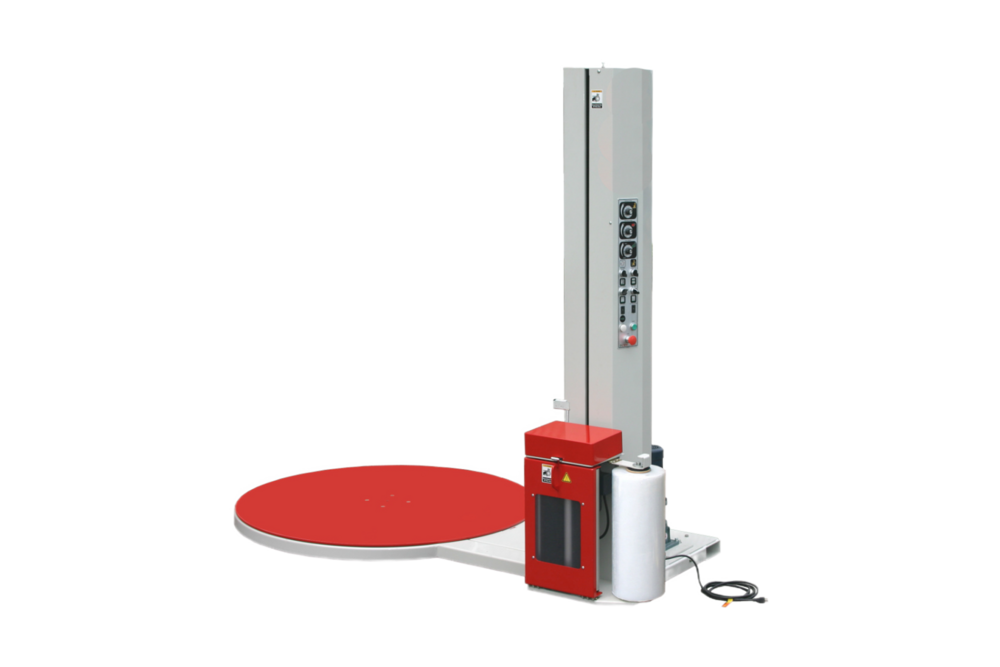

WB-601 Wrapping Machine

Inquiry

This model is a semi-automatic, low-profile pallet wrapping machine designed for a wide range of pallet wrapping applications, from light to heavy-duty. It pre-stretches film up to 300%, helping reduce film usage while ensuring excellent load stability—as stretched film naturally tightens after application.

Equipped with advanced controls for tension, banding, and wrapping patterns, this machine allows for intelligent, customizable wrapping. Its user-friendly design includes an Easy Load film carriage and Film Force Release feature, making film application quick and effortless.





Features

  • Heavy duty drive chain for film carriage

  • Photo Eye

  • Automatic Cut and Clamp attach to the load

  • Dual gear pre-stretch rollers, capable of achieving up to 220% pre-stretch




Techinical Data



Model

WB-601
Turntable diameterØ1490 mm
Turntable height110 mm
Max. packing dimension(L × W × H)
1345 × 1345 × 2080 mm
Max. loading weight4000 lbs

Electrical Requirement

*customize available

110V, 220V, 230V, 240V   50/60Hz 1φ
220V, 380V, 400V, 415V   50/60Hz 3φ

Machine Dimension

(L × W × H)
2185 × 1490 × 2500 mm
