TOYO

Y Series Rod Type Actuators

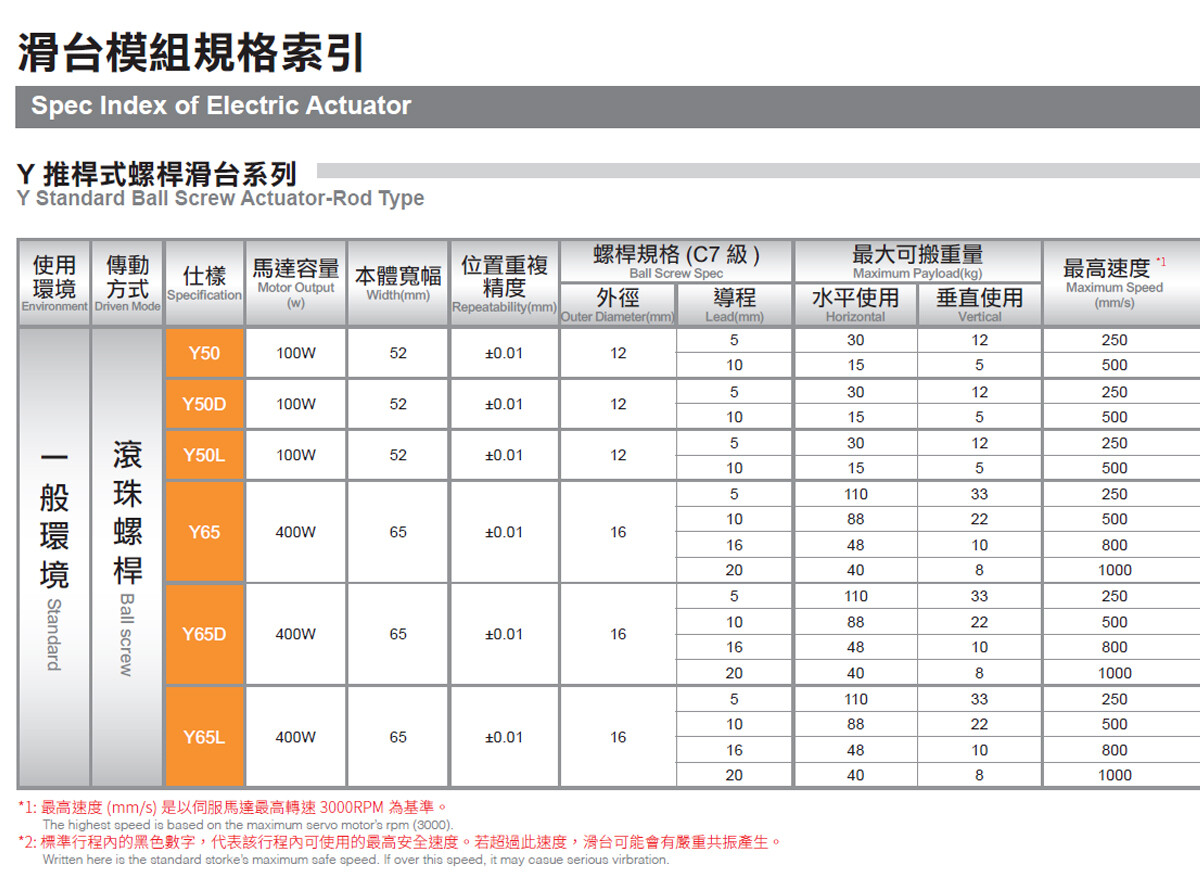

  • Repeatability: ± 0.01 (mm)
  • Horizontal Maximum Payload from 30 (kg)
  • Vertical Maximum Payload from 12 (kg)
  • Maximum Speed: 500 mm/sec
  • Available Stroke Lengths: 50-300 mm

Inquiry

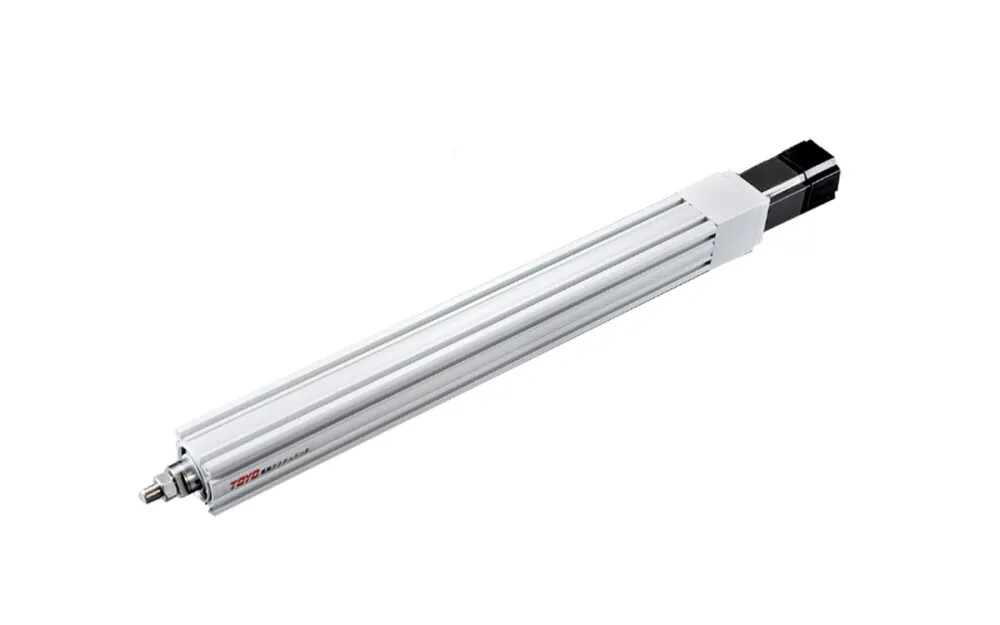

Y Series Rod Type Actuators

TOYO’s newly released Rod Type – Y Series Actuators, come assembled with a Rod Style Driven Ballscrew – Accuracy class C7. Compared to standard ballscrew driven actuators, this Rod Type Actuator can be special ordered with a support guide to reduce the rod actuator’s deflection. Additionally, this Rod Type Actuator is offered in a variety of stroke lengths 50-300 mm+. Special order lengths can be requested as well. Cosmetically, the Y Series come assembled with a easy to remove grease cover allowing for quick repair and maintenance. Rod Type Actuators have trench locations on all four sides of the body making installation smooth and efficient. There are multiple motor mounting positions making this actuator a great choice for applications where frequent design modifications may occur. Finally, the Rod Type Actuators have an outstanding eight sensor locations resulting in reliable and accurate functionality. Please contact our Application Department for assistance in sizing your Linear Actuator.

TOYO_Y Series

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

TOYO Actuators

TOYO_Rod Type Actuator_Y_Series_Series_Brochure_CN
