Micro "Z-Axis Motion" for Improved Semiconductor Packaging and Lens Press-Fit Applications

Micro "Z-Axis Motion" for Improved Semiconductor Packaging and Lens Press-Fit Applications

The micro linear rotary actuator (LPR) is a high-precision, powerful actuator designed to combine linear and rotary motions. It is particularly suitable for industries with increasing demands for miniaturization. As devices continue to shrink, the LPR actuator plays a crucial role in the precise installation and assembly of chips.

Product Advantages

Miniaturized Design

Linear motion width: only 12mm, Combined linear and rotary width: as small as 13mm, Ideal for multi-axis parallel use in space-constrained environments.

High Speed and Precision

Built-in high-resolution optical scale (0.5μm)
Rotary encoder (20-bit) for fast and accurate motion control



Precise Force Control

Minimum pressing force: 20g ± 5g. Models with built-in force sensors can achieve 5g ± 1.5g
Suitable for handling delicate and fragile components

Soft Landing

Supports soft landing technology. Paired with Delta drivers to ensure stable press-fit quality and improve yield rates

Modular and Plug-and-Play

Easy installation without additional R&D resources, reducing development costs

High Acceleration

No-load acceleration exceeds 6g
Performance surpasses traditional motor + screw systems or cylinder technologies

Specifications and Industrial Applications

Lens Assembly

  • Flexible force control and high precision for fragile optical components
  • Ensures stability and quality during installation
  • Glass lens modules: Max thrust 7kg, force error <50g
  • Plastic lens modules: Max thrust 5kg, force error <20g

Electronic Component Assembly

  • Supports SMT and through-hole technologies, ensuring precision and stability
  • SMT/Through-hole machines: Max thrust 1.5kg, force error <10g

Semiconductor Processes

  • Precise Z-axis motion and fine force control for front and back-end semiconductor processes
  • Excels in wafer handling and die bonding applications, ensuring safe handling of delicate components
  • Chip handling/die bonding: Max thrust 0.5kg, force error <2g

Case Studies

1. Wafer Handling and Packaging

In semiconductor processes, wafer handling and packaging demand high precision and speed. The LPL series micro linear rotary actuators deliver excellent performance in wafer transfer and packaging processes through their high speed, precision, and delicate force control technology.



Key Benefits

  1. Customized Design: Tailored platforms based on customer size and requirements.
  2. Professional Design Advice: Offers design suggestions, 3D drawings, and specifications for easy confirmation and adjustment.
  3. Comprehensive Technical Support: Includes factory and Luo Sheng’s technical support and after-sales service to ensure timely assistance during usage.



Diagram

2. Soft Landing Application Example

Key Benefits

  1. Efficient Protection: Reduces the risk of damage to target objects through low-speed contact and pressure control.
  2. High Precision: Ensures stable force output and position control during the pressing process for high-quality manufacturing.
  3. Wide Applicability: Suitable for applications requiring fine force control, such as semiconductor, optical component assembly, and electronic part installation.



DELTA Soft Landing User Interface

  • A visual parameter-setting software that calculates necessary values for each parameter after setup.
  • Helps users understand the required parameter settings for each step.

Soft Landing Key Features and Operational Steps



  1. Position Mode: High-Speed Descent
    The device moves quickly from the initial position (Point A) toward the target position (Point B).

  2. Velocity Mode: Low-Speed Descent into Soft Landing
    As it nears the target point, the speed decreases to make gentle contact with the target, minimizing impact. This process, known as Soft Landing, protects fragile components and improves yield.

  3. Torque Mode: Maintain Stable Pressure
    Upon reaching the target position (Point C), the device switches to torque mode to apply a stable preset pressure, ensuring press-fit quality.

  4. Position Mode: Rapid Retract
    After press-fitting, the device quickly returns to the initial position, ready for the next cycle.



Diagram

We offer professional evaluations, site surveys, and planning.

Contact us

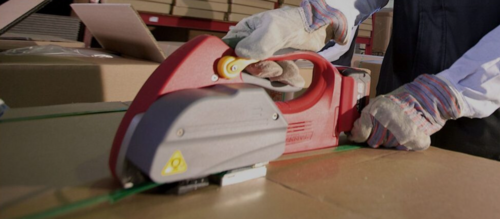

Challenges in Strapping Large Cargo and Pallets: Flexible Strapping Machine Solutions to Meet Diverse Needs
Prev

Challenges in Strapping Large Cargo and Pallets: Flexible Strapping Machine Solutions to Meet Diverse Needs

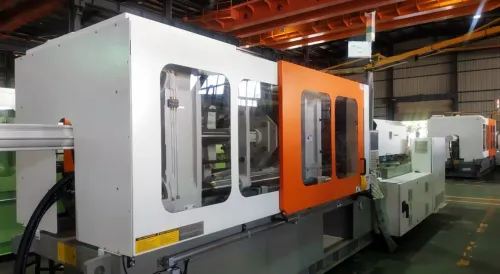

Built in Web Server: A great value remote mobile visualization solution for solving your difficulties
