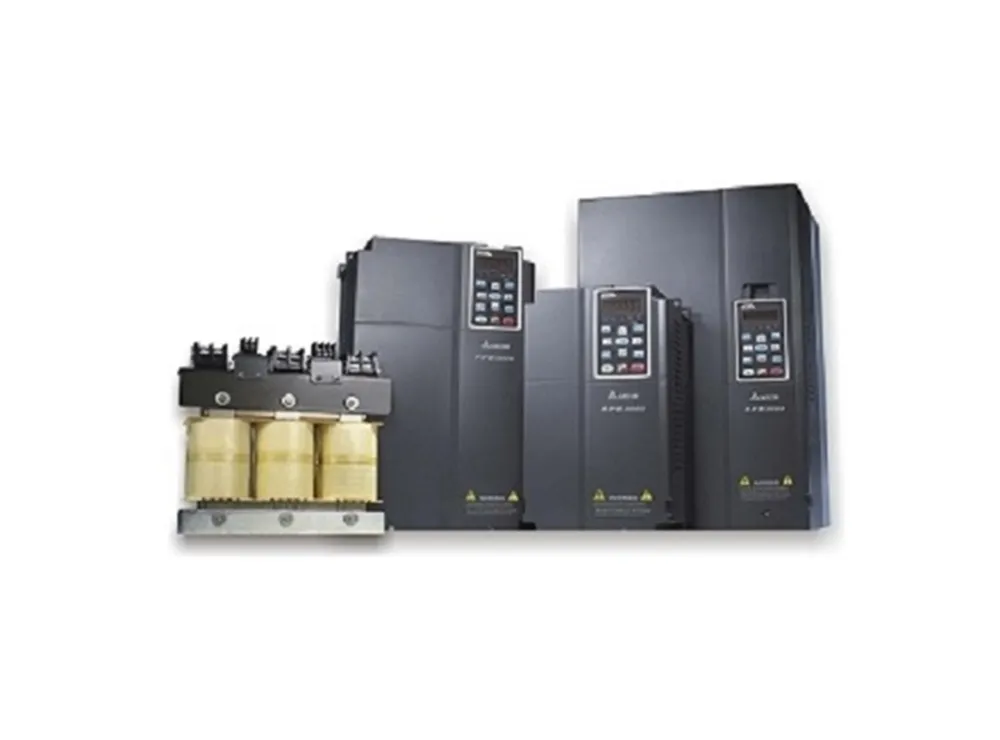

AFE2000 series

The Active Front End (AFE) is a controllable rectifier. Its advantages include bidirectional power exchange between AC and DC and the feed of reusable power back to the mains. The AFE uses PWM modulation to reduce current peaks and form perfect sine wave current. The power factor is corrected up to 1. The ratio between load capacity and power capacity is 1:1. In addition, the AFE eliminates high-order harmonics and provides very low harmonic current, THD<5%, while improving the power factor. Customers to not need to purchase additional electrical equipment for better power quality. The AFE also offers stable power quality, unaffected by mains power fluctuations, and supports serial connection.

Delta’s innovative AFE2000 is the product of years of experience in AC motor drive development. Designed for a wide range of application, this unit achieves outstanding energy-saving results. The AFE2000 converts excess heat (otherwise wasted) into reusable power that can be supplied back to the mains. The AFE2000 is yet another Delta product for improved efficiency and productivity. It is another step on our mission "to provide innovative, clean and efficient energy solutions for a better tomorrow".

Applications

• Large-inertia load applications: roving machines, horizontal spiral centrifuges, drilling machines.
• 4-quadrant load applications: cranes, cargo elevators, passenger elevators, oil production machines.
• Quick brake applications: machine tools, high-speed spindles, bag making machines.
• Long-term feedback energy applications: wind power systems and water power systems.
• DC power supply applications: logistics and storage systems, wind power systems, LED lighting systems.
• Provides excellent power quality for the communication transmission systems of Power Line products.
• Overhead Traveling Crane
• Elevator

Crane and UnloadingApplications: theAFE2000 replaces the traditional brake resistor t0convert the excess heat ofmotor intO reusable energy.

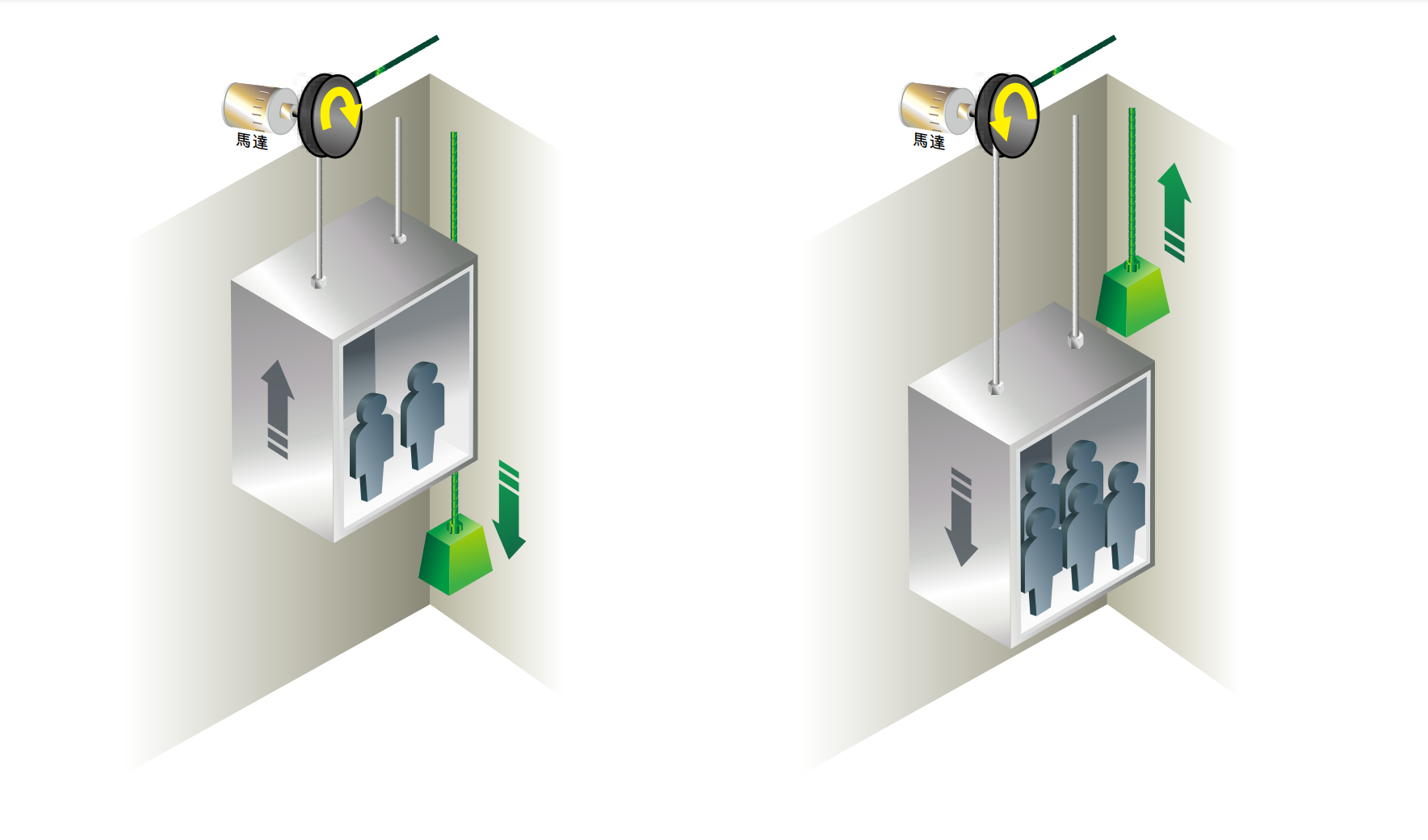

Elevators, Winches and CraneAppIications: four possible speed and torque bundles includingspeed (十) and torque (十/一), The excess heat is converted to reusable energy andsupplied back t0 the mains.

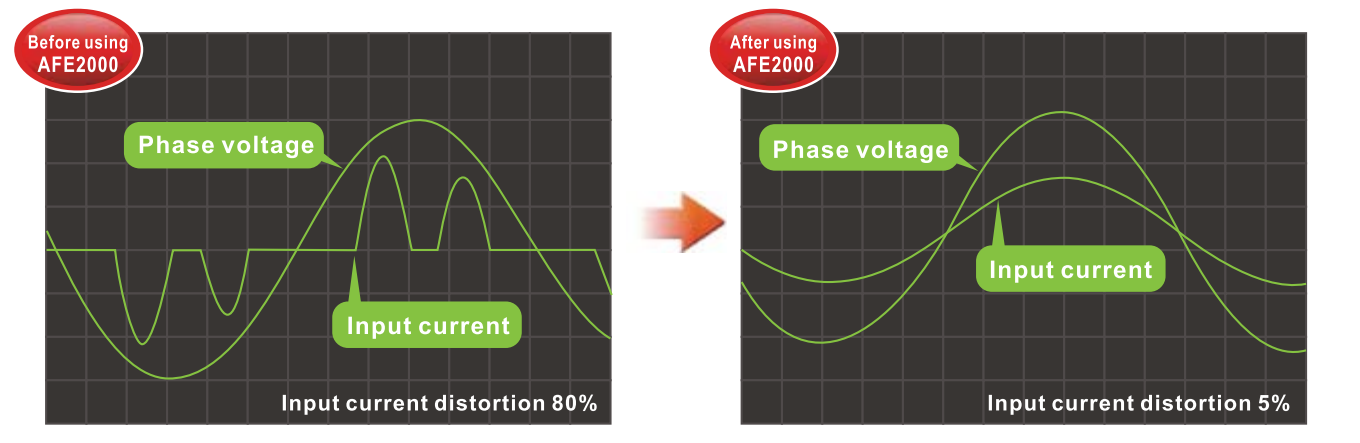

lmprove power factor, lower harmonic distortion, and decrease energy consumption tO reduce energycosts and protectthe envrronment.
