CKD

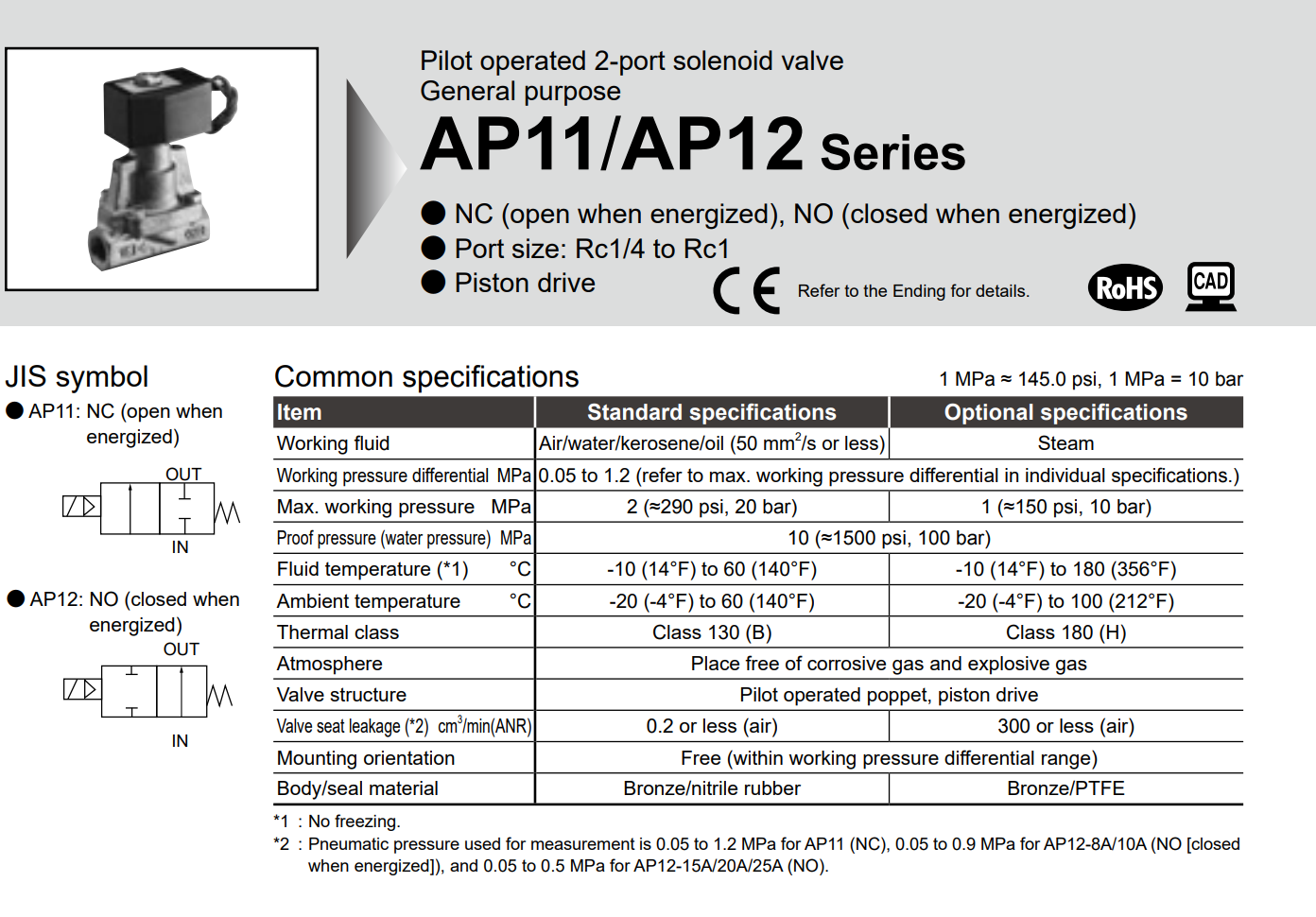

AP11/AP12 Series Pilot kick 2-port solenoid valve
- Pilot operated 2-port piston drive solenoid valve.
- Compatible with various applications through material selection.
- Steam specification can be selected.
AP11/AP12 Series Pilot kick 2-port solenoid valve
Supports multiple fluids
The body and sealant material can be selected to support various fluids, and steam specification is also available.
Variation
NO type is also available: compatible with various applications by combining a variety of coil options.
Port size:1/4", 3/8", 1/2", 3/4", 1"
