Delta

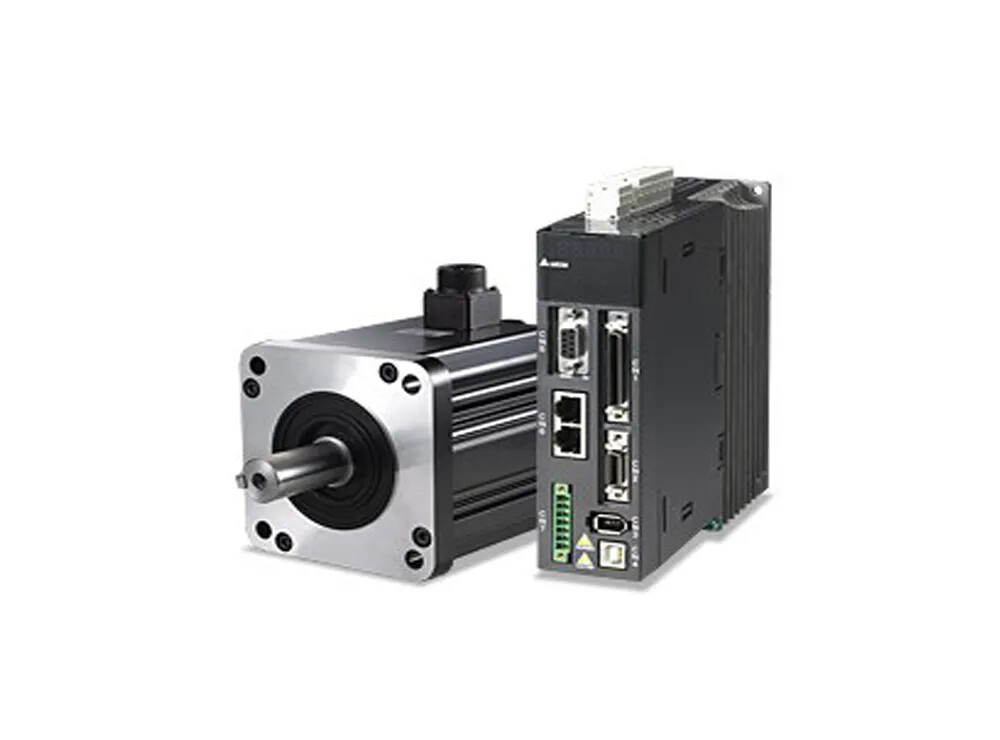

ASDA-A2 series servo motors High Performance motion control

  • High Precision Control
  • Superlative Vibration Suppression
  • Up to 720 E-CAM points.
  • Full Closed-loop Control (Capable of reading second feedback signals)

Inquiry

Precise carving machine, precise lathe/milling machine, double column type machining center, TFT LCD cutting machine, robot arm, IC packaging machine, high-speed packaging machine, CNC processing equipment, injection processing equipment, label inserting machine, food packaging machine, printing.

A2-M Servo drive includes powerful & unique built-in motion functionality to solve many applications including: Indexing sequences, Feed-to-Length, Rotary Knife and Seal, Linear-Flying-Shear & Fillers, Master/Slave eCAM with on-the-fly adjustments & Dynamic cam table change, Rotary Dial table. These application solutions are described in a guide, and can be accessed by clicking on this

Specifications

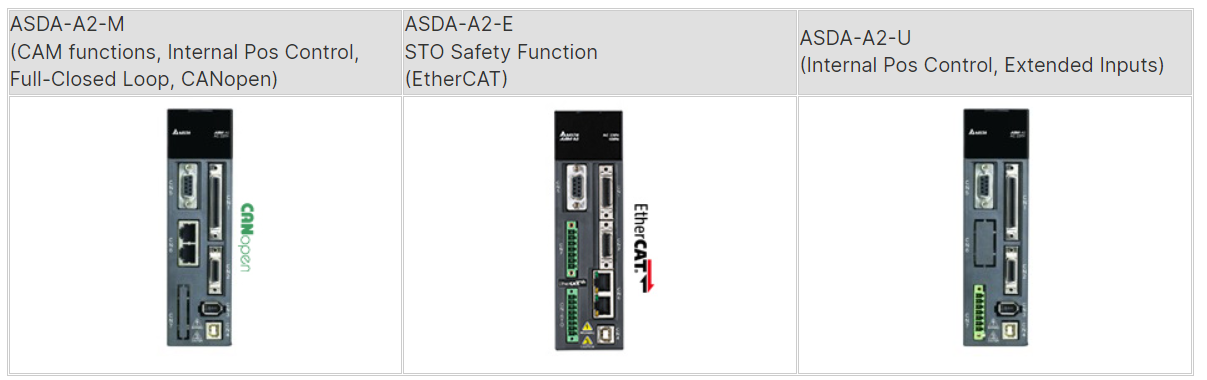

There are three models of ASDA-A2 series: ASDA-A2-M, ASDA-A2-E, ASDA-A2-U



 ASDA-A2

High Precision Control



ECMA series servo motors feature incremental encoder with 20-bit resolution (1280000 pulses/revolution). Existing functions to meet the requirements from delicate process have been enhanced. Stable rotation at low speed has also been achieved.

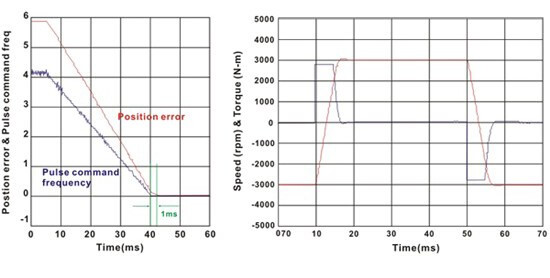

Up to 1kHz frequency response. Settling time below 1ms.

 ASDA-A3

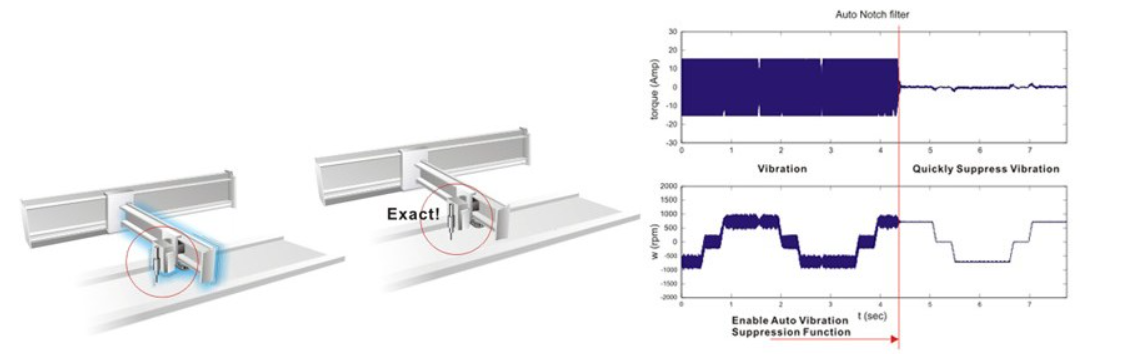

Superlative Vibration Suppression

 ASDA-A3

Built-in automatic low-frequency vibration suppression (for crane control): two vibration suppression filters are provided to minimize the vibration at machine edges automatically and sufficiently.

Built-in automatic high-frequency resonance suppression: two auto notch filters are provided to suppress the mechanical resonance automatically.

Flexible Internal Position Mode (Pr Mode)

 ASDA-A3

ASDA-A2-Soft configuration software provides internal parameter editing function for defining the path of each axis freely.

64 internal position settings are offered for continuous motion control.

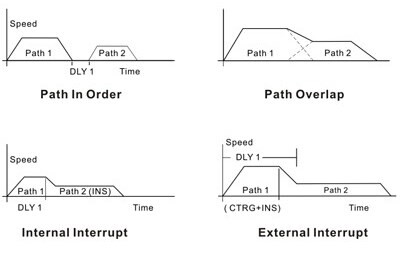

Insertion, Overlap and sequential operation commands possible including jump and write parameter.

Destination position, speed and acceleration/deceleration commands can be changed on-the-fly.

35 kinds of homing modes are available.



  • Unique Built-in Electronic Cam (E-CAM)

Features of ASDA-A2-U:

  • Max. 14 digital inputs.
  • Using powerful “Pr mode” is able to perform complex motions.
  • Quick connector is available for easy installation and use.
  • Built-in DC 24V power supply is provided to simplify the wiring and save space.


Features of ASDA-A2-E :

  • Touch probe function can be enabled with two dedicated Digital Inputs (DI) on CN7 or the external encoder.
  • Integrated Safe Torque Off (STO) safety function according to the standards of EN 61800-5-2; IEC 61508, SIL2; IEC 62061, SIL2; ISO 13849-1, Cat.3 ,PL=d
  • Wide power range coverage in both 220V and 400V
  • Supports full-closed loop control
  • Supports absolute type and incremental type ECMA Series servo motors

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

DELTA_IABG_Catalogue_EN

Delta_ASDA-A2_Manual_TC

Delta_ASDA-A2_Manual_EN

Delta_ASDA-A2_Brochure_TC

Delta_ASDA-A2_Brochure_EN
