Delta

High-end AC Servo System

  • 3.1 kHz Bandwidth
  • 24-bit Absolute Type Encoder
  • Advanced Motion Control
  • Comprehensive Auto-Tuning Functions
  • Excellent Vibration Suppression

Inquiry

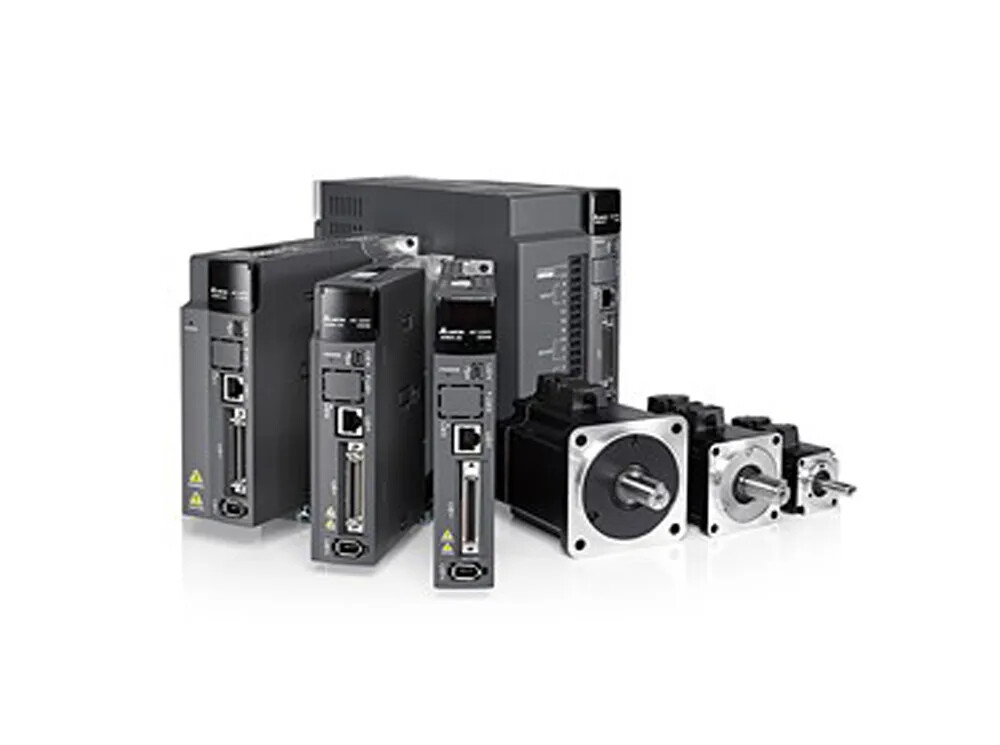

High-end AC Servo System

With auto-tuning and a user-friendly interface for system analysis, the ASDA-A3 Series provides 3.1kHz of bandwidth and employs a 24-bit absolute type encoder, creating advantages that include high response, precise locating, and stable and flexible performance. In addition, the series has added new functions such as vibration suppression, system diagnosis, and a shared DC-bus design which can regenerate energy. Delta's AC Servo System ASDA-A3 Series offers a comprehensive technology and solution to help our customers enhance their machine's precision and achieve excellent performance.

Features & Benefits

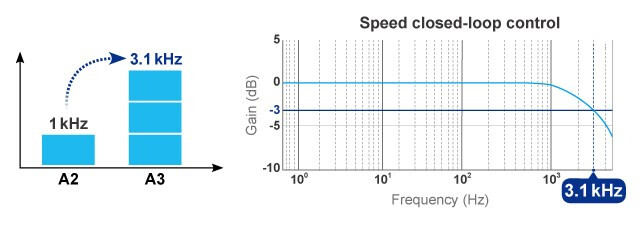

3.1 kHz Bandwidth

  • Higher responsiveness and shorter settling time increases productivity
 ASDA-A3

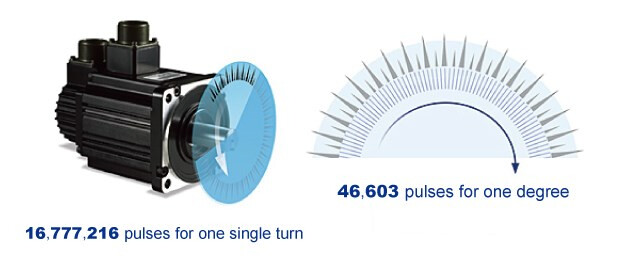

24-bit Absolute Type Encoder

  • 16,777,216 pulses/turns ensure precise positioning
  • Steady performance at low-speed enhances machining quality
  • Keeps motor's position during power shortage
 ASDA-A3

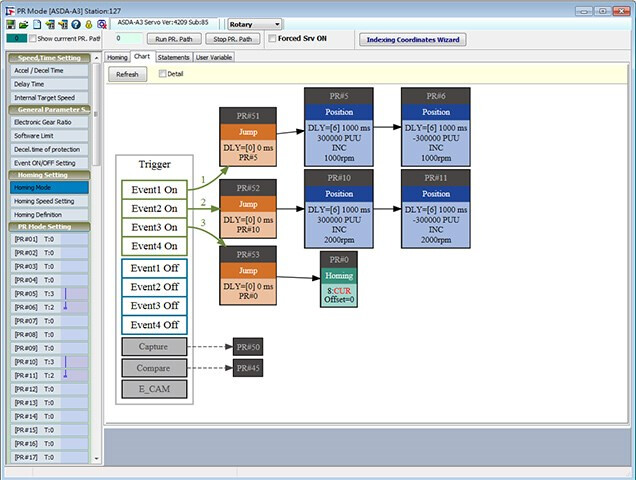

Advanced Motion Control

  • E-CAM & 99 sophisticated motion commands and segments allowed
  • Graphical user interface offers simple setup and programming
  • Arithmetic operation / comparison commands available
  • General motion functions such as homing, position and speed commands
  • Superimposition, blending, and jump change motion commands provided
 ASDA-A3

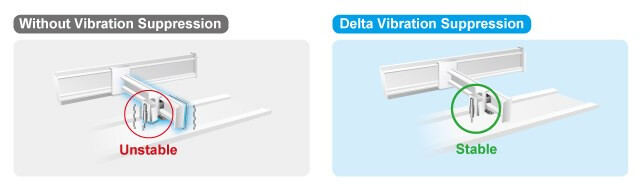

Excellent Vibration Suppression

  • Provides 5 sets of notch filters with up to 5 kHz tunable bandwidth
  • The filters can search resonance in a shorter time and set the attenuation level automatically, avoiding damage to machines
 ASDA-A3

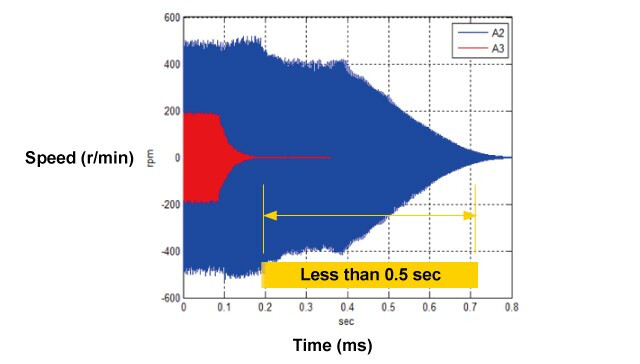

  • Suppresses vibration for machines with high flexibility, enhancing overall performance
  • Adopts a creative algorithm to eliminate the shaking of machines without slowing down its response and speed
 ASDA-A3

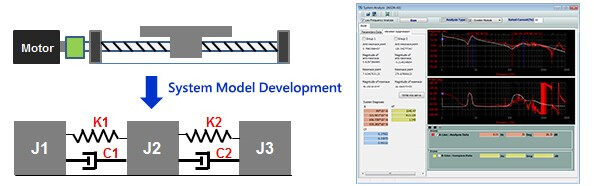

System Diagnosis Function

  • Measures the rigidity and damping coefficient of a machine and checks the consistency of the machine's batch installation
  • Acquires the wear condition of a machine by comparing data from different time spans
 ASDA-A3

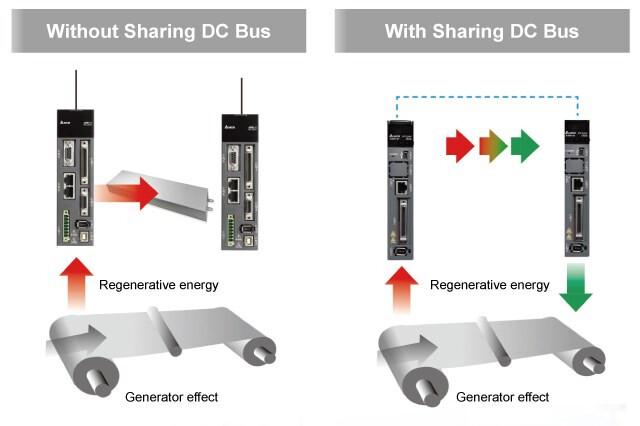

Multi-axis DC-bus Sharing Design

  • Collects regenerative energy and stabilizes DC-bus voltage for energy savings
  • Multiple servo drives with DC-bus sharing saves cost of resistors and installation space
 ASDA-A3

Slim and Compact Size Servo Drives and Motors

  • Drives and motors are 20% smaller and shorter than the ASDA-A2 Series, saving space

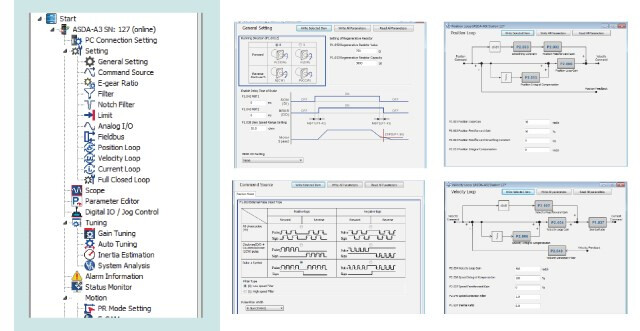

Intuitive Software Interface

  • Tree-View index list and collapsible menu helps to access functions easily

Graphical interface provides set up functions and parameters, reducing setting time and failure

Applications

Machine tool, precise carving machine, gantry processing, TFT LCD cutting machine, IC packaging machine, assembly / inspection machine for electronics, industrial robot, packaging machine, labeling machine, semiconductor machine, textile machine

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

DELTA_IABG_Catalogue_EN

DELTA_ASDA-A3_Manual_EN

DELTA_ASDA-A3_Brochure_TC
