MIKI PULLEY
BELLOWFLEX CHP Models
- Max. nominal torque : 1.5 N・m
- Bore ranges : 3 mm to 18 mm
- Backlash : Zero

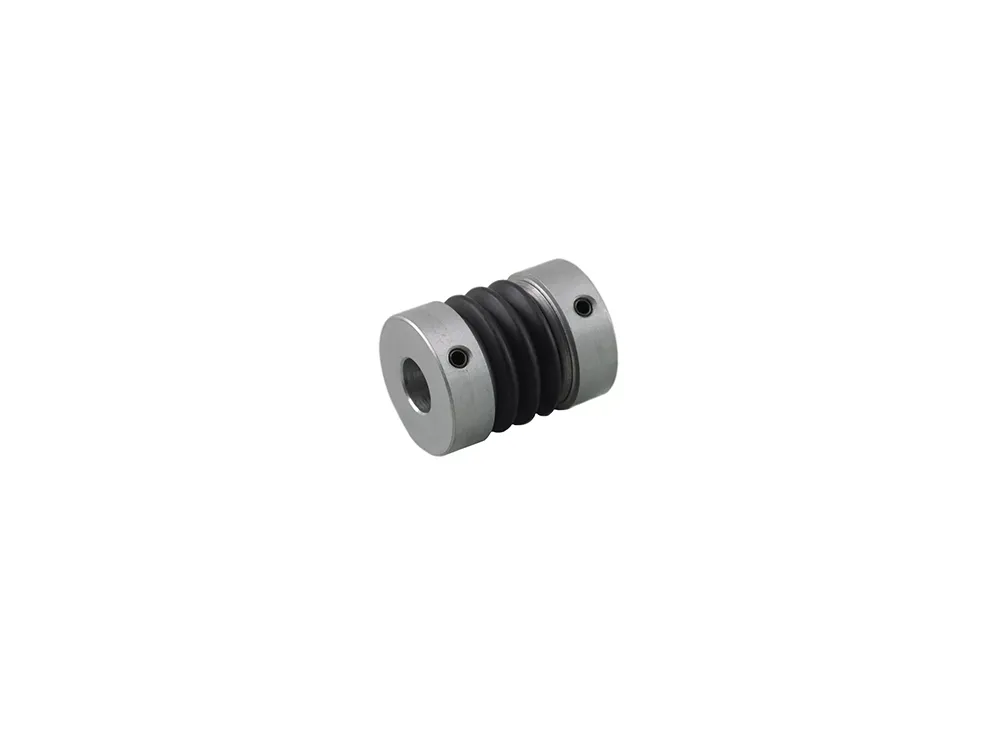

BELLOWFLEX CHP Models
These couplings absorb vibration and have extremely low reaction force from mounting misalignment, thanks to the use of a plastic boot made of resin with excellent elastic properties (polyester resins). They are compact and lightweight, since the aluminum alloy hub and boot are designed with a unitized construction.Thanks to the unitized construction, they are easy to mount and remove, and there is no backlash.
