Applications

High-speed 3-axis servo welding machine, high-speed cutting machine, bar feeder, distributed monitor system in production line.

Specifications

Excellent Motion Control

• High-speed pulse output: 4 sets of 200kHz pulse output (DVP40/48/64/80EH00T3)

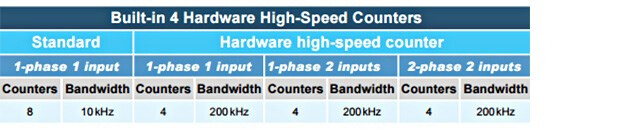

• Supports max. 4 hardware 200kHz high-speed counters

• Increases many motion control instructions to meet the applications that require high-speed and high-precision

• positioning control such as labeling machines, packaging machines and printing machines

• Offers linear / arc interpolation motion control

• Provides up to 16 external interrupt pointers

Complete Program Protection

Auto backup function to prevent losing programs and data even when the battery runs out

Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged

Up to 4-level password protection protects your source programs and intellectual property

Outstanding Operation Performance

CPU + ASIC dual processors support floating point operations.

The max. execution speed of basic instructions is able to reach 0.24μs.

Flexible Function Extension Modules & Cards

The multiple selections of extension modules and function cards provide analog I/O, temperature measurement, additional single-axis motion control, high-speed counting, 3rd serial communication port and Ethernet communication card are available.

PLC-Link

C-Link allows the user to link up a max. 32 units to the network without having to install extra communication extension modules.

Brand-New High-Speed Extension Modules

The brand-new extension modules greatly shorten the data transmission time among the PLC and its extension modules as well as enhance the efficiency of the PLC program.
