ETP-POWER is available as standard for shafts 15 – 40 mm. Run out ≤ 0,03 mm. Number of mountings 200 - 500 (size dependent). ETP-POWER combines quick mounting with a high radial load capacity due to the specially developed pressure medium. As the name suggests, ETP POWER is for higher torque applications.

Construction

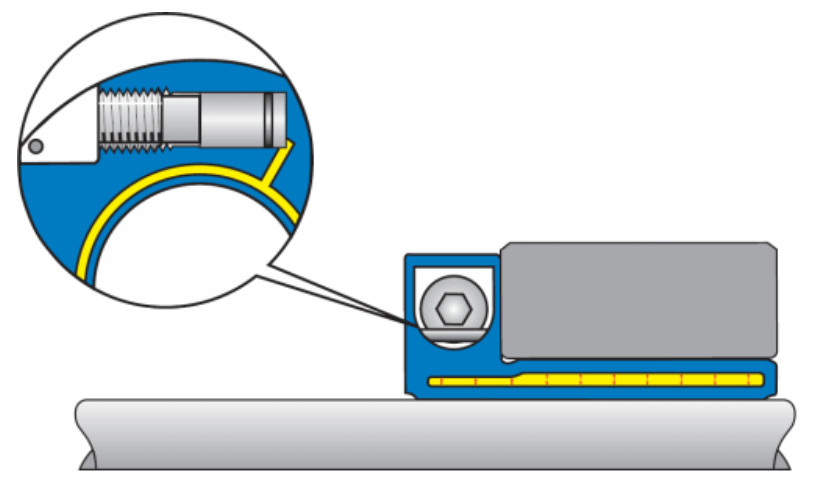

ETP-POWER is a hydraulic connection which consists of a double-walled hardened steel sleeve filled with a specially developed pressure medium and a flange. The flange part contains screw and piston with seals to maintain pressure. In the flange there are two pre-machined bores which can be used for mounting location pins, screws to the hub or similar.

Operation

When the pressure screw is tightened the double-walled sleeve expands uniformly against shaft and hub and creates a rigid joint. Dismantling is done by loosening the screw. ETP-POWER returns to its original dimensions and can easily be dismantled.

Where we win

• High radial load capacity.
• Fast mounting/dismantling with only ONE screw.
• Small built-in dimensions.
• Radial tightening of the screw saves space along the shaft.
• Accurate positioning, no axial movement when mounting.
• Good concentricity, also after several mountings.
