CKD

GRC Series Table rotary actuator

  • Space-saving
  • High reliability
  • High quality
  • A variety of hardware options

Inquiry

Features

The table rotary actuator with rack and pinion realizes high load, direct mounting and high position accuracy thanks to a bearing guide.



Excellent flexibility in design

  • Six sizes of 5, 10, 20, 30, 50, 80.
  • Standard and high accuracy type are available with the same dimensions.
  • 90° and 180° specifications are available.
  • Comes with an angle adjustment bolt with rubber cushion for adjusting the oscillation angle.
  • The load can be directly mounted on the rotary table.



Superior installability

  • Select among 3 surfaces for piping port leadout directions.
  • Large hollow diameter keeps piping and wiring simple.
  • Positioning spigots for the table top (4 positions) and the body bottom (1 position) are available.



Superior operability

  • Stable operation with external stopper.
  • Smooth stopping is possible without backlash due to the external stopper and shock absorber (optional).
  • 1.5 s/90° low speed operation is possible.
  • The large pinion diameter and long piston stroke length achieve low speed operation.

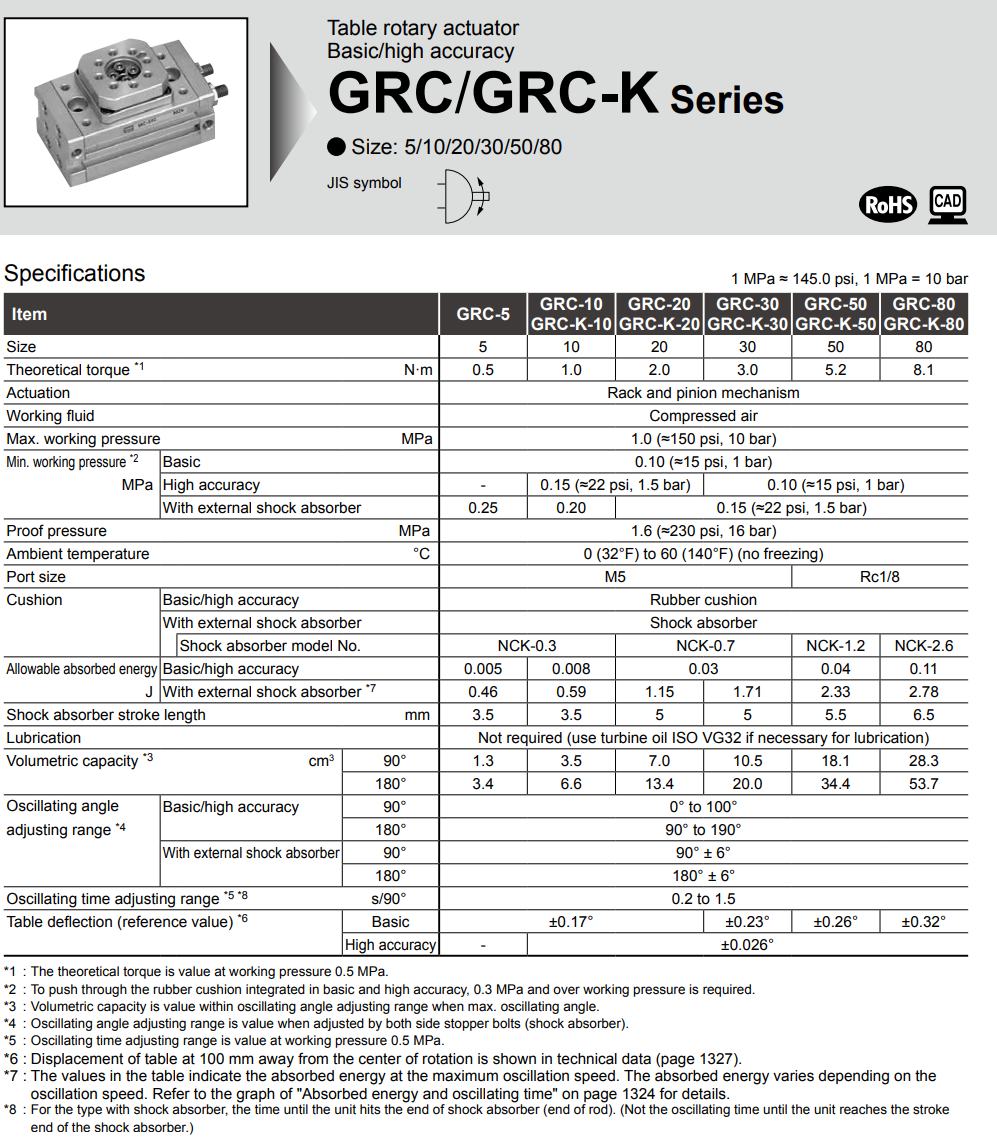

Specification

Download

Catalogue
Datasheet
Manual
Brochure
Report
References

GRC Series Specifications・How to order・Dimensions(0.5MB)

GRC系列平台旋轉缸_Catalogue
