Delta

IED Series

  • Output frequency: 0.00~120.00Hz; ability to output 150% of torque at 0Hz
  • Field Oriented Vector Control precisely controls elevator operation
  • Elevator accelerates or decelerates in a smooth S curve to provide a smooth and reliable ride
  • Back up power connection (supports single-phase 230VAC UPS) to ensure passenger safety when power failure occurs
  • Overload capability: 150% for 60 seconds, 200% for 3 seconds

Inquiry

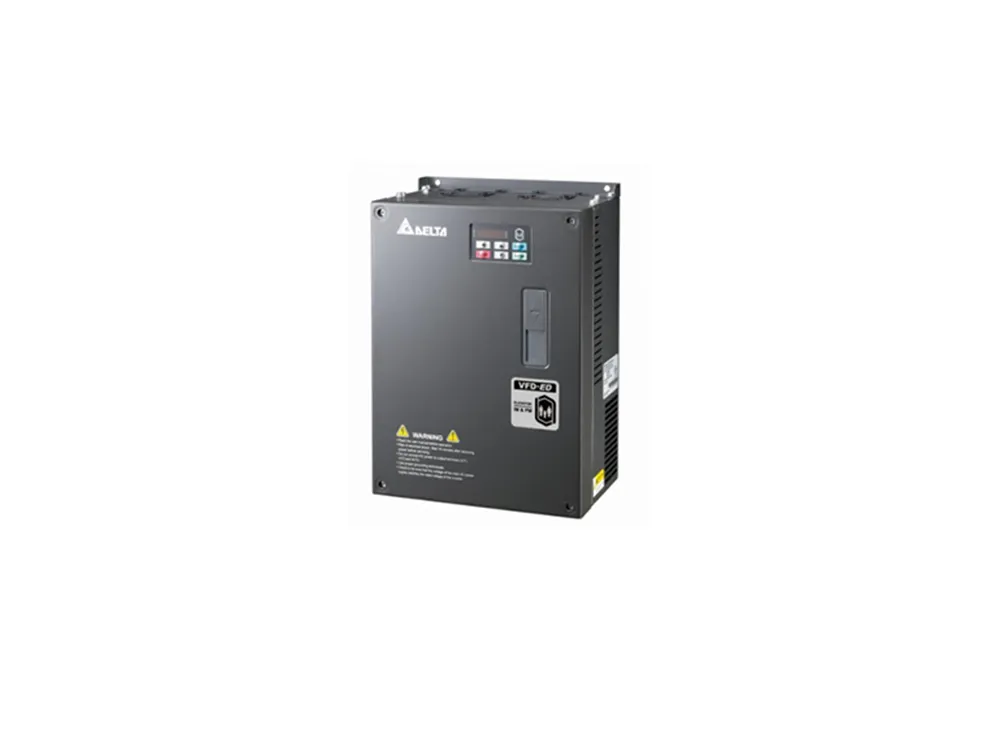

IED Series

The Delta Integrated Elevator Drive (IED) meets international safety standards (UL/CE) to ensure elevator passenger safety. The new technology integrates host controller and AC motor drive functions into one MCU which vastly improves the elevator's operational performance, efficiency and reliability. In addition, the Delta IED series provides one-stop shopping that includes all an elevator needs in planning, assembly, technology and services to lower cost and offer the ultimate flexibility for a wide range of applications. The Delta IED series integrates solutions and professional technical support, providing you with outstanding elevator reliability and performance.

Specifications

  • Output frequency: 0.00~120.00Hz; ability to output 150% of torque at 0Hz

  • Field Oriented Vector Control precisely controls elevator operation

  • Elevator accelerates or decelerates in a smooth S curve to provide a smooth and reliable ride

  • Back up power connection (supports single-phase 230VAC UPS) to ensure passenger safety when power failure occurs

  • Overload capability: 150% for 60 seconds, 200% for 3 seconds

  • All models up to 30KW are offered with built-in brake module

  • Built-in Modbus/CAN bus communication interface

  • Optional accessories LCD keypad and PC software for tuning are available upon purchase



Features

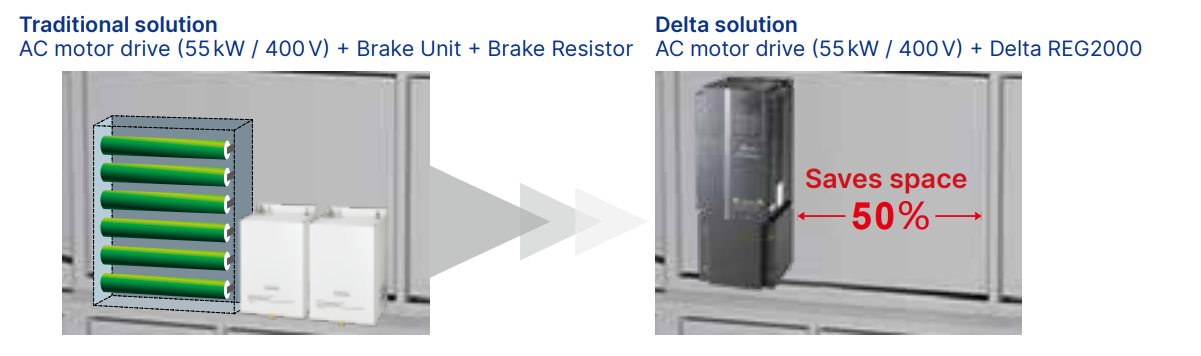

Compact design with reactor included, easy to wire and easy to install

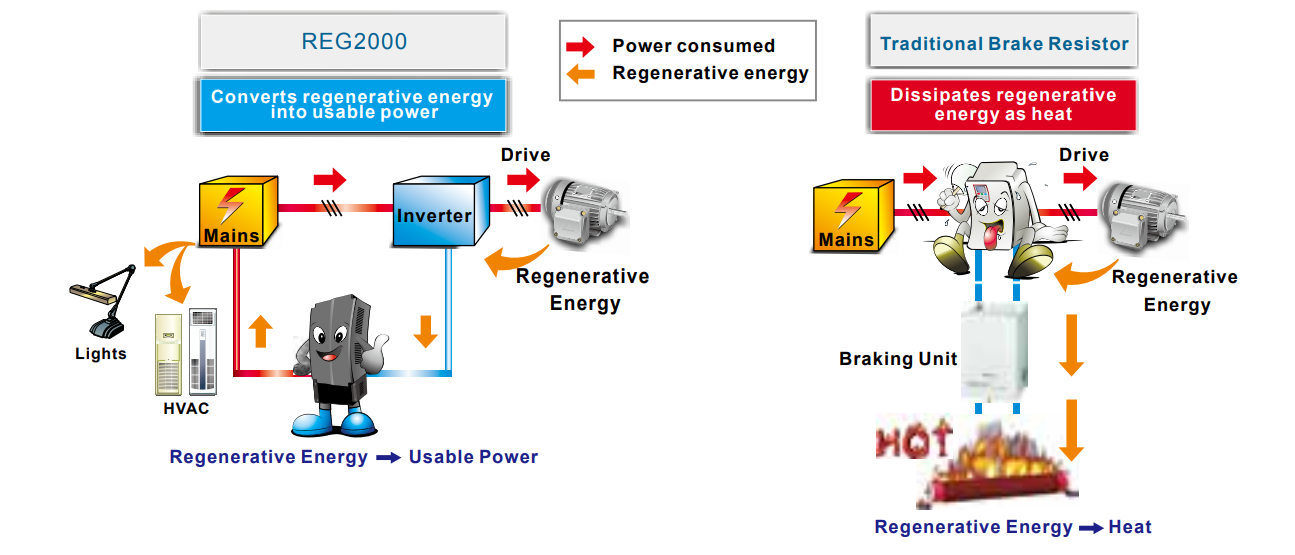

  • Outstanding energy-saving results with more than 95% power regeneration efficiency
  • Lessens traditional brake resistors to reduce unnecessary heat generation
  •  Improves motor braking capability up to 150% from 125% of braking resistors
  • Supports RS-485 (Modbus) communication for real-time monitoring and regenerated energy collection
  • High application flexibility, compatible with all kinds of AC motor drives and servo systems in the market
  • No need to set parameters for general applications; easy installation to any existing equipment
  • Supports 4 parallel connections* for power expansion in various applications


Download

Catalogue
Datasheet
Manual
Brochure
Report
References

Delta_IED_Catalogue_en

Delta_IED_Catalogue_zh
