IFD8500 RS485 Communication Devices

We replaced IFD8500 with IFD8500-A. The key function is transferring the RS-232 signals to RS-485/RS-422 differential signals. The RS-232 interface of computer, PLC and other controllers could be converted to RS-485/RS-422 interface for long communication distance and simple multi-points industrial network.

Specifications

• Power supply: +9V ~ +48VDC
• Power consumption: 0.4 W
• Insulation voltage: 5,000 VDC
• Baud rate: Up to 115200 bps (Auto)
• Connector: 9-pin D-SUB (receptacle)
• Terminal: 10-pin, accepts AWG1-#12 to #24 wires
• Dimensions (L*W*H)：4.65*2.79*0.87in (118*71*22mm)
• Weight: 122g

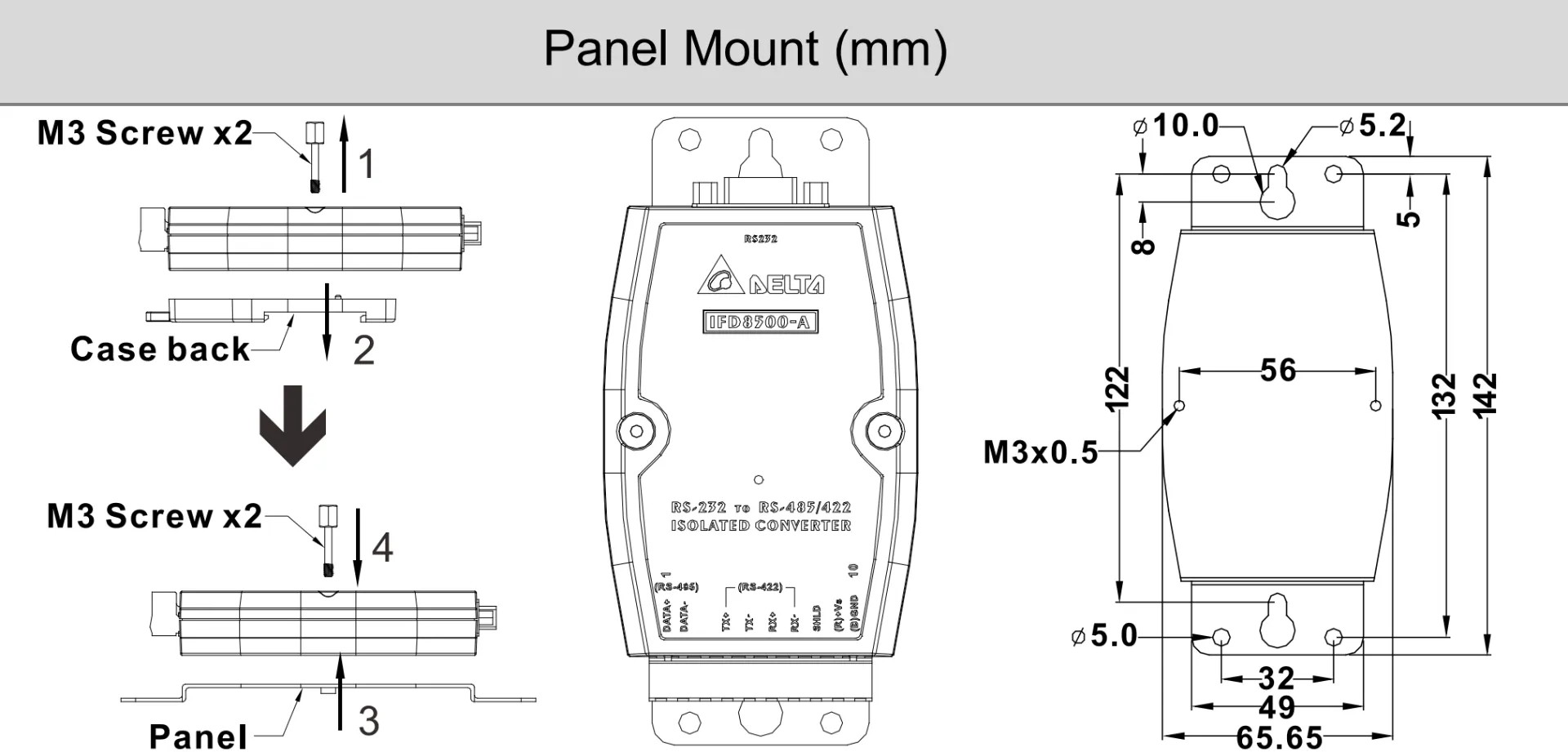

Product Profile & Outline
